Bosch PWS 7-125 E
Bosch PWS 7-125 E angle grinder: exploded parts diagram, 2 sheets, 78 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

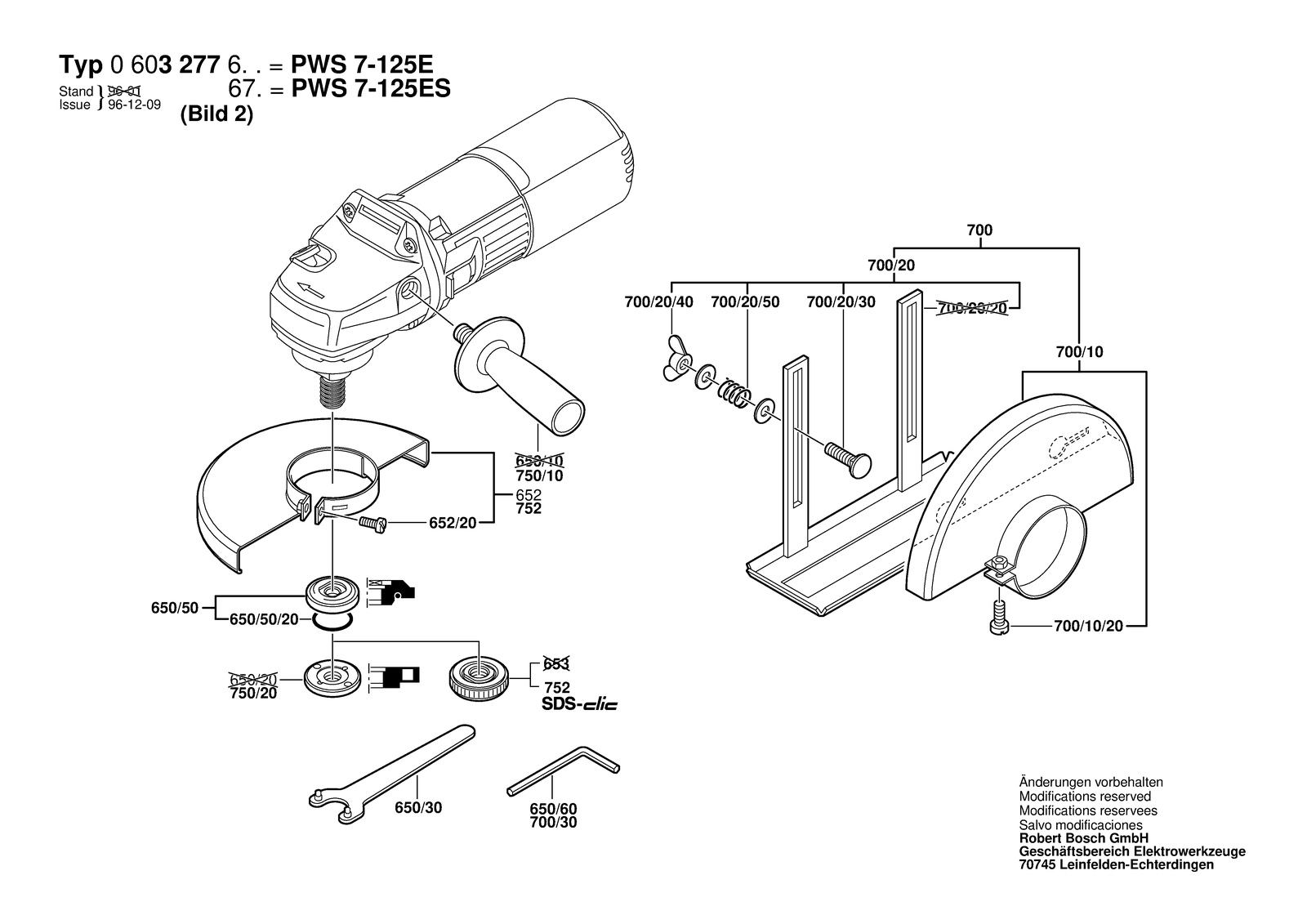

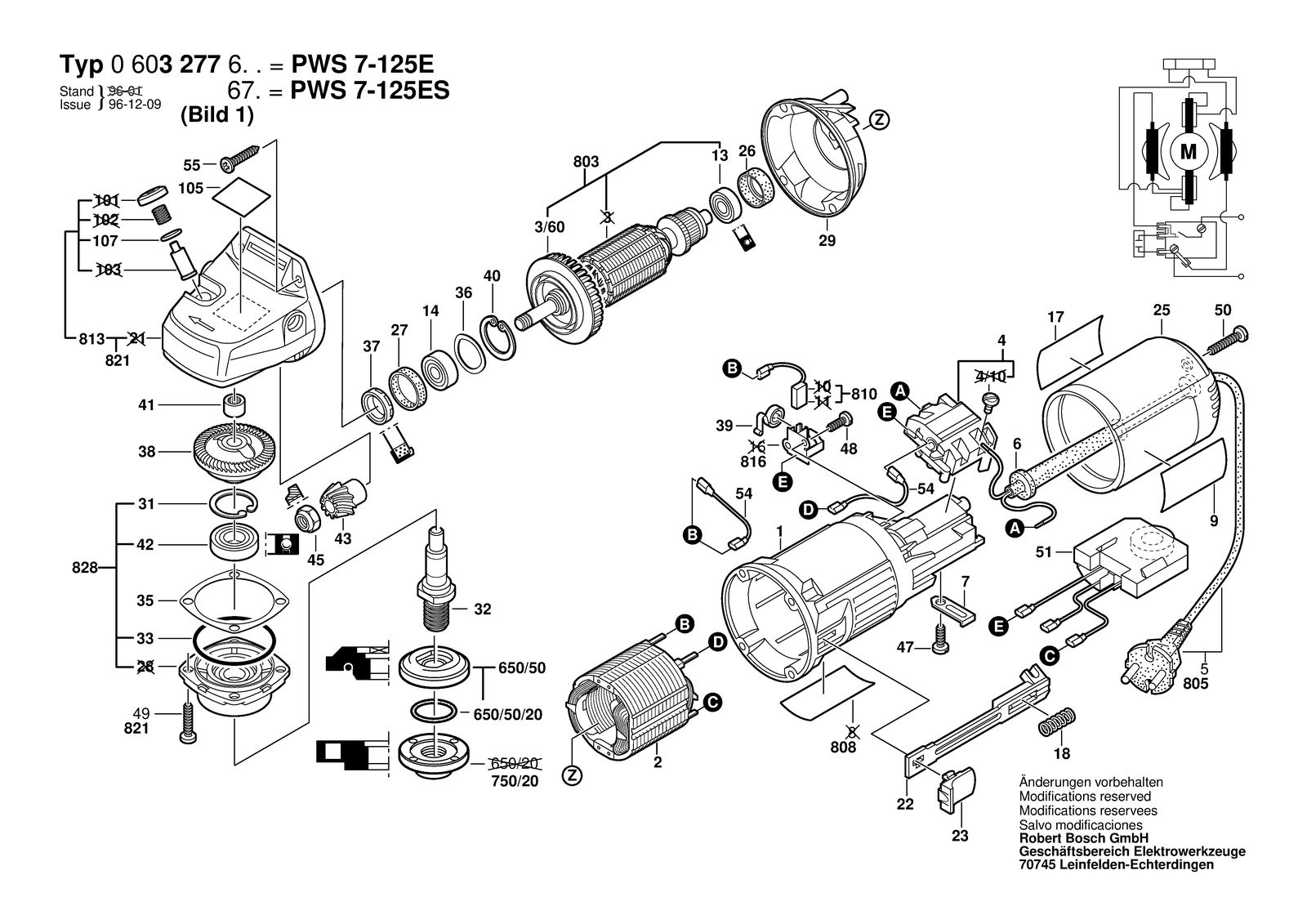

All parts of Bosch PWS 7-125 E: 78 positions on 2 sheets
Bosch PWS 7-125 E parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1605108127 | Motor Housing Green |
| 105 | 1601110470 | Reference Plate |
| 107 | 1600210044 | O-Ring Blue 4,5X1,0 MM |
| 13 | 2600905032 | Ball Bearing 7X19X6 |
| 14 | 1600905011 | Groove ball bearing 8X22X7 |
| 17 | 1601110788 | Manufacturer's nameplate |
| 18 | 1604611026 | Compression Spring |
| 2 | 1604220224 | Field 230-240V |
| 2 | 1604220272 | Field 220-230V |
| 22 | 1602319002 | Adjusting Slide |
| 23 | 1602026057 | Switch Handle Black |
| 25 | 1600508009 | Housing Cover Green |
| 26 | 1600502020 | Rubber Bushing |
| 27 | 1600206025 | Rubber Ring |
| 29 | 1601328005 | Air-Deflector Ring |
| 3/60 | 1606610121 | Fan |
| 31 | 2916660013 | Retaining clip DIN 472-32X1,2 MM |
| 32 | 1607000D6A | Grinding Spindle |
| 33 | 3600210124 | O-Ring Red 46,0X1,1 MM |
| 35 | 1600136010 | Shim Thick 0,2 MM |
| 35 | 1600136011 | Shim Thick 0,3 MM |
| 35 | 1600136012 | Shim Thick 0,1 MM |
| 36 | 1600150011 | Spring Washer |
| 37 | 1600290016 | Rotary shaft lip seal |
| 38 | 1606333601 | Crown Gear Z=36 |
| 39 | 1604652013 | Spiral Spring |
| 4 | 1607200086 | On-Off Switch |
| 40 | 2916660009 | Spring retaining ring DIN 472-25X1,2MM |
| 41 | 1600910018 | Needle bearing Ø8XØ12X8 MM |
| 42 | 1600905006 | Groove ball bearing 12X32X10 |
| 43 | 1606333242 | Bevel Gear Z=11 |
| 45 | 1603300016 | Hex Nut M7, SW10 |
| 47 | 2910211018 | Tapping Screw DIN 7971-ST3,9X13-F |
| 48 | 2910211005 | Tapping Screw DIN 7971-ST2,9X9,5-F |
| 49 | 1603435026 | Thread-forming tap. Screw |
| 5 | 1604460034 | Power supply cord AUS 2,65M 2 X 1,0MM Pvc |
| 5 | 1604460148 | Power supply cord CH 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 1604460150 | Power supply cord GB 240V 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 1604460152 | Power supply cord I 2,65M 2 X 1,0MM H05VV-F |
| 50 | 2912401420 | Tapping Screw DIN7981-ST3,9X19-F-Z |
| 51 | 1607233024 | Speed governor 230-240V |
| 51 | 1607233025 | Speed governor 240V |
| 54 | 1604448006 | Connecting Cable White L=40 MM |
| 55 | 2912401420 | Tapping Screw DIN7981-ST3,9X19-F-Z |
| 6 | 2600703011 | Grommet Ø8,3-Ø9,4X95 MM |
| 6 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 6 | 2600703013 | Grommet Ø7,6-Ø8,2X95 MM |
| 650/30 | 1607950052 | Pin-Type Face-Wrench |
| 650/50 | 1605703099 | Clamping-Flange Ø22,2X42 MM |
| 650/50/20 | 1600210039 | O-Ring 20,35X1,78 MM |
| 650/60 | 2610364015 | Hexagon Socket Screw Key 5 MM |
| 652 | 1605510113 | Protective Cover Ø 125 MM |
| 652/20 | 2910022197 | Socket head cap screw DIN 84-M 6X16-8.8 |
| 652/20 | 2910141197 | Hex Socket Head Cap Screw DIN 912-M6X16-8.8 |
| 7 | 1601302017 | Fastening Clamp |
| 700 | 1607000172 | Parts Set Ø 125 MM |
| 700 | 1608135004 | Guide Block |
| 700/10 | 1605510113 | Protective Cover Ø 125 MM |
| 700/10/20 | 2910022197 | Socket head cap screw DIN 84-M 6X16-8.8 |
| 700/10/20 | 2910141197 | Hex Socket Head Cap Screw DIN 912-M6X16-8.8 |
| 700/20 | 1608135004 | Guide Block |
| 700/20/30 | 2910281158 | Round-Head Bolt DIN 603-M 5X16 |
| 700/20/40 | 2915191105 | Wing Nut M 5 DIN 315-G-5 |
| 700/20/50 | 1604643004 | Compression Spring |
| 700/30 | 2610364015 | Hexagon Socket Screw Key 5 MM |
| 750/10 | 160202509T | Auxiliary Handle |
| 750/20 | 1603340040 | Clamping Nut M14 |
| 752 | 1605510117 | Protective Cover Ø 125 MM (5") |
| 803 | 1604010259 | Armature With Fan 230-240V |
| 803 | 1604010429 | Armature With Fan 220-230V |
| 805 | 1607000386 | Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 808 | 160111A3H3 | Nameplate |
| 810 | 1607014116 | Carbon-Brush Set |
| 813 | 1607000253 | Push-Button Black |
| 816 | 1600A003G4 | Brush Holder |
| 821 | 1605806480 | Gear Housing |
| 828 | 1607000936 | Bearing Flange |
| 9 | 1601110785 | Manufacturer's nameplate |
