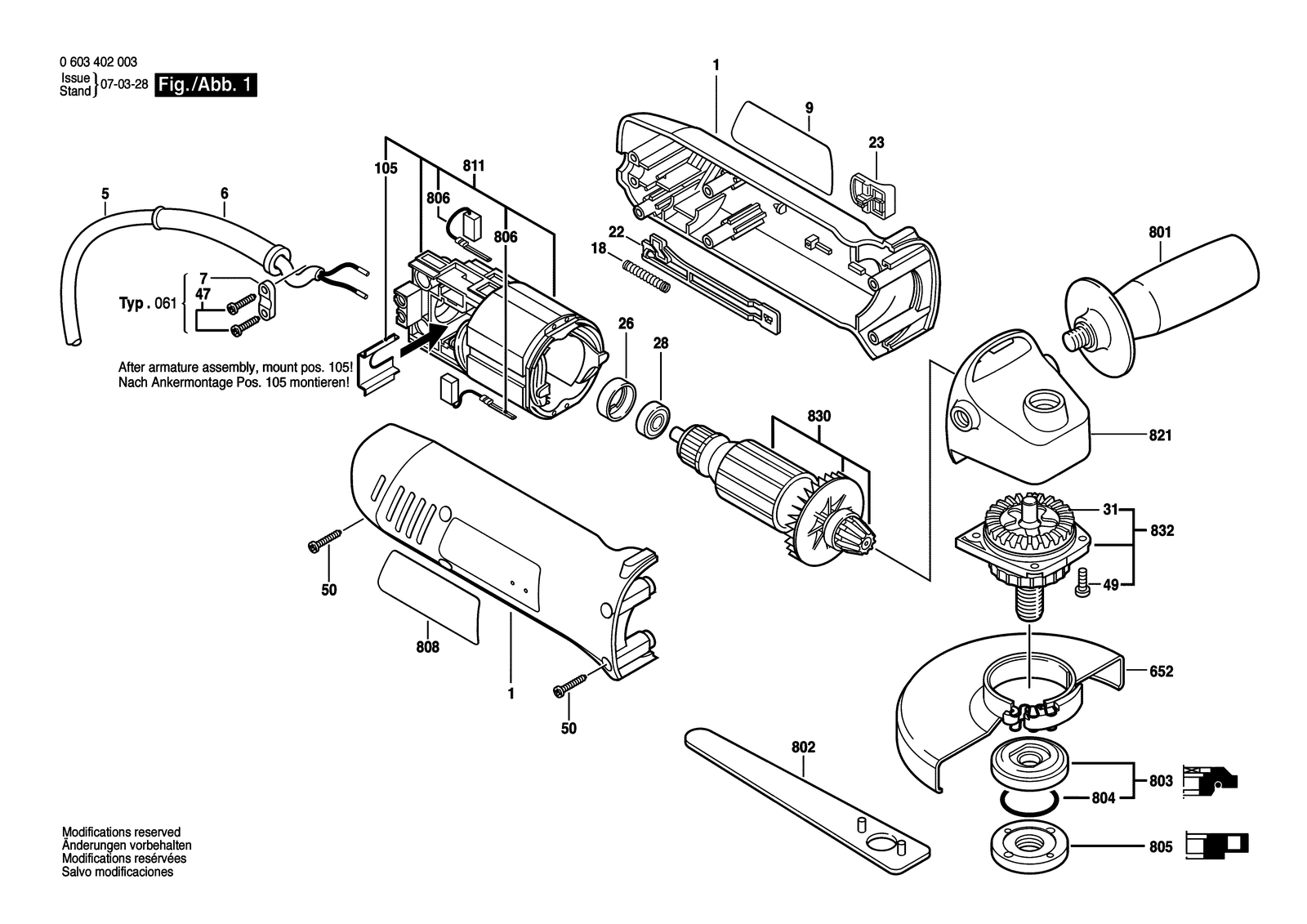

Bosch PWS 7-125 angle grinder: exploded parts diagram, 1 sheet, 169 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PWS 7-125: 169 positions on 1 sheet
Bosch PWS 7-125 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1605108203 | Housing Section |
| 1 | 1605108203 | Housing Section |
| 1 | 1605108203 | Housing Section |
| 1 | 1605108203 | Housing Section |
| 1 | 1605108203 | Housing Section |
| 1 | 1605108203 | Housing Section |
| 105 | 1600591034 | Intermediate Plate |
| 105 | 1600591034 | Intermediate Plate |
| 105 | 1600591034 | Intermediate Plate |
| 105 | 1600591034 | Intermediate Plate |
| 105 | 1600591034 | Intermediate Plate |
| 105 | 1600591034 | Intermediate Plate |
| 18 | 1604611026 | Compression Spring |
| 18 | 1604611026 | Compression Spring |
| 18 | 1604611026 | Compression Spring |
| 18 | 1604611026 | Compression Spring |
| 18 | 1604611026 | Compression Spring |
| 18 | 1604611026 | Compression Spring |
| 22 | 1602319014 | Adjusting Slide |
| 22 | 1602319014 | Adjusting Slide |
| 22 | 1602319014 | Adjusting Slide |
| 22 | 1602319014 | Adjusting Slide |
| 22 | 1602319014 | Adjusting Slide |
| 22 | 1602319014 | Adjusting Slide |
| 23 | 1602026077 | Switch Handle Black |
| 23 | 1602026077 | Switch Handle Black |
| 23 | 1602026077 | Switch Handle Black |
| 23 | 1602026077 | Switch Handle Black |
| 23 | 1602026077 | Switch Handle Black |
| 23 | 1602026077 | Switch Handle Black |
| 26 | 1600502020 | Rubber Bushing |
| 26 | 1600502020 | Rubber Bushing |
| 26 | 1600502020 | Rubber Bushing |
| 26 | 1600502020 | Rubber Bushing |
| 26 | 1600502020 | Rubber Bushing |
| 26 | 1600502020 | Rubber Bushing |
| 28 | 1600905021 | Ball Bearing |
| 28 | 1600905021 | Ball Bearing |
| 28 | 1600905021 | Ball Bearing |
| 28 | 1600905021 | Ball Bearing |
| 28 | 1600905021 | Ball Bearing |
| 28 | 1600905021 | Ball Bearing |
| 31 | 1606333624 | Crown Gear |
| 31 | 1606333624 | Crown Gear |
| 31 | 1606333624 | Crown Gear |
| 31 | 1606333624 | Crown Gear |
| 31 | 1606333624 | Crown Gear |
| 31 | 1606333624 | Crown Gear |
| 47 | 1619P00029 | Screw |
| 49 | 1603435068 | Thread-forming tap. Screw DIN 7500, M4X10, SR10.2 |
| 49 | 1603435068 | Thread-forming tap. Screw DIN 7500, M4X10, SR10.2 |
| 49 | 1603435068 | Thread-forming tap. Screw DIN 7500, M4X10, SR10.2 |
| 49 | 1603435068 | Thread-forming tap. Screw DIN 7500, M4X10, SR10.2 |
| 49 | 1603435068 | Thread-forming tap. Screw DIN 7500, M4X10, SR10.2 |
| 49 | 1603435068 | Thread-forming tap. Screw DIN 7500, M4X10, SR10.2 |
| 5 | 1607000387 | Power supply cord CN 2,65M 2 X 0,75MM H05 W-f |
| 5 | 1619P00072 | Power supply cord AUS 2,65M 2 X 1,0MM Pvc |
| 5 | 1619P00092 | Power supply cord J 2,5M 2 X 1,25MM Pvc |
| 5 | 2604460147 | Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 1607000387 | Power supply cord CN 2,65M 2 X 0,75MM H05 W-f |
| 5 | 2604460147 | Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 1607000387 | Power supply cord CN 2,65M 2 X 0,75MM H05 W-f |
| 5 | 1607000387 | Power supply cord CN 2,65M 2 X 0,75MM H05 W-f |
| 5 | 1607000387 | Power supply cord CN 2,65M 2 X 0,75MM H05 W-f |
| 5 | 1607000387 | Power supply cord CN 2,65M 2 X 0,75MM H05 W-f |
| 50 | 1619P00105 | Torx Oval-Head Screw 4X20 |
| 50 | 1619P00105 | Torx Oval-Head Screw 4X20 |
| 50 | 1619P00105 | Torx Oval-Head Screw 4X20 |
| 50 | 1619P00105 | Torx Oval-Head Screw 4X20 |
| 50 | 1619P00105 | Torx Oval-Head Screw 4X20 |
| 50 | 1619P00105 | Torx Oval-Head Screw 4X20 |
| 6 | 2600703011 | Grommet Ø8,3-Ø9,4X95 MM |
| 6 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 6 | 2600703013 | Grommet Ø7,6-Ø8,2X95 MM |
| 6 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 6 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 6 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 6 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 6 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 652 | 1619P00157 | Protective Cover |
| 652 | 2609000390 | Protective Guard |
| 652 | 2609000390 | Protective Guard |
| 652 | 2609000390 | Protective Guard |
| 652 | 1605510307 | Protective Cover Ø 125 MM |
| 652 | 1605510307 | Protective Cover Ø 125 MM |
| 652 | 1605510307 | Protective Cover Ø 125 MM |
| 7 | 1611035005 | Cable Clip |
| 801 | 160202509T | Auxiliary Handle |
| 801 | 160202509T | Auxiliary Handle |
| 801 | 160202509T | Auxiliary Handle |
| 801 | 160202509T | Auxiliary Handle |
| 801 | 160202509T | Auxiliary Handle |
| 801 | 160202509T | Auxiliary Handle |
| 802 | 1619P08927 | Pin-Type Face-Wrench |
| 802 | 1619P08928 | Pin-Type Face-Wrench |
| 802 | 1619P08927 | Pin-Type Face-Wrench |
| 802 | 1619P08927 | Pin-Type Face-Wrench |
| 802 | 1607950052 | Pin-Type Face-Wrench |
| 802 | 1607950052 | Pin-Type Face-Wrench |
| 802 | 1607950052 | Pin-Type Face-Wrench |
| 803 | 1605703112 | Clamping-Flange Ø15/20 MM |
| 803 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 803 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 803 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 803 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 803 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 803 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 804 | 1600210039 | O-Ring 20,35X1,78 MM |
| 804 | 1600210039 | O-Ring 20,35X1,78 MM |
| 804 | 1600210039 | O-Ring 20,35X1,78 MM |
| 804 | 1600210039 | O-Ring 20,35X1,78 MM |
| 804 | 1600210039 | O-Ring 20,35X1,78 MM |
| 804 | 1600210039 | O-Ring 20,35X1,78 MM |
| 805 | 1603345043 | Round Nut M14 |
| 805 | 1619P09976 | Round Nut With 2 Holes |
| 805 | 1603345043 | Round Nut M14 |
| 805 | 1603345043 | Round Nut M14 |
| 805 | 1603345043 | Round Nut M14 |
| 805 | 1603345043 | Round Nut M14 |
| 805 | 1603345043 | Round Nut M14 |
| 806 | 1607000994 | Carbon-Brush Set |
| 806 | 1607000994 | Carbon-Brush Set |
| 806 | 1607000994 | Carbon-Brush Set |
| 806 | 1607000994 | Carbon-Brush Set |
| 806 | 1607000994 | Carbon-Brush Set |
| 806 | 1607000994 | Carbon-Brush Set |
| 808 | 1619P00529 | Nameplate |
| 808 | 1619P00530 | Nameplate |
| 808 | 1619P00531 | Nameplate |
| 808 | 1619P00532 | Nameplate |
| 808 | 1619P00533 | Nameplate |
| 808 | 160111A3H3 | Nameplate |
| 808 | 160111A3H3 | Nameplate |
| 808 | 160111A3H3 | Nameplate |
| 808 | 160111A3H3 | Nameplate |
| 808 | 160111A3H3 | Nameplate |
| 811 | 1607000721 | Field |
| 811 | 1607000723 | Field 230-240V |
| 811 | 1607000723 | Field 230-240V |
| 811 | 1607000723 | Field 230-240V |
| 811 | 1607000723 | Field 230-240V |
| 811 | 1607000723 | Field 230-240V |
| 811 | 1607000723 | Field 230-240V |
| 821 | 1607000995 | Gear Housing |
| 821 | 1607000995 | Gear Housing |
| 821 | 1607000995 | Gear Housing |
| 821 | 1607000995 | Gear Housing |
| 821 | 1607000995 | Gear Housing |
| 821 | 1607000995 | Gear Housing |
| 830 | 1607000990 | Armature With Fan 230-240V |
| 830 | 1607000998 | Armature |
| 830 | 1607000990 | Armature With Fan 230-240V |
| 830 | 1607000990 | Armature With Fan 230-240V |
| 830 | 1607000990 | Armature With Fan 230-240V |
| 830 | 1607000990 | Armature With Fan 230-240V |
| 830 | 1607000990 | Armature With Fan 230-240V |
| 832 | 1607000719 | Grinding Spindle |
| 832 | 1607000719 | Grinding Spindle |
| 832 | 1607000719 | Grinding Spindle |
| 832 | 1607000719 | Grinding Spindle |
| 832 | 1607000719 | Grinding Spindle |
| 832 | 1607000719 | Grinding Spindle |
| 9 | 1601118855 | Manufacturer's nameplate |
| 9 | 1601118E38 | Manufacturer's nameplate |
| 9 | 1601118855 | Manufacturer's nameplate |
| 9 | 1601118C16 | Manufacturer's nameplate |
| 9 | 1601118C18 | Manufacturer's nameplate |
| 9 | 1601118856 | Manufacturer's nameplate |
| 9 | 1601118C17 | Manufacturer's nameplate |
