Bosch PWS 620-100 angle grinder: exploded parts diagram, 1 sheet, 56 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PWS 620-100: 56 positions on 1 sheet

Bosch PWS 620-100 parts list (1 sheet)

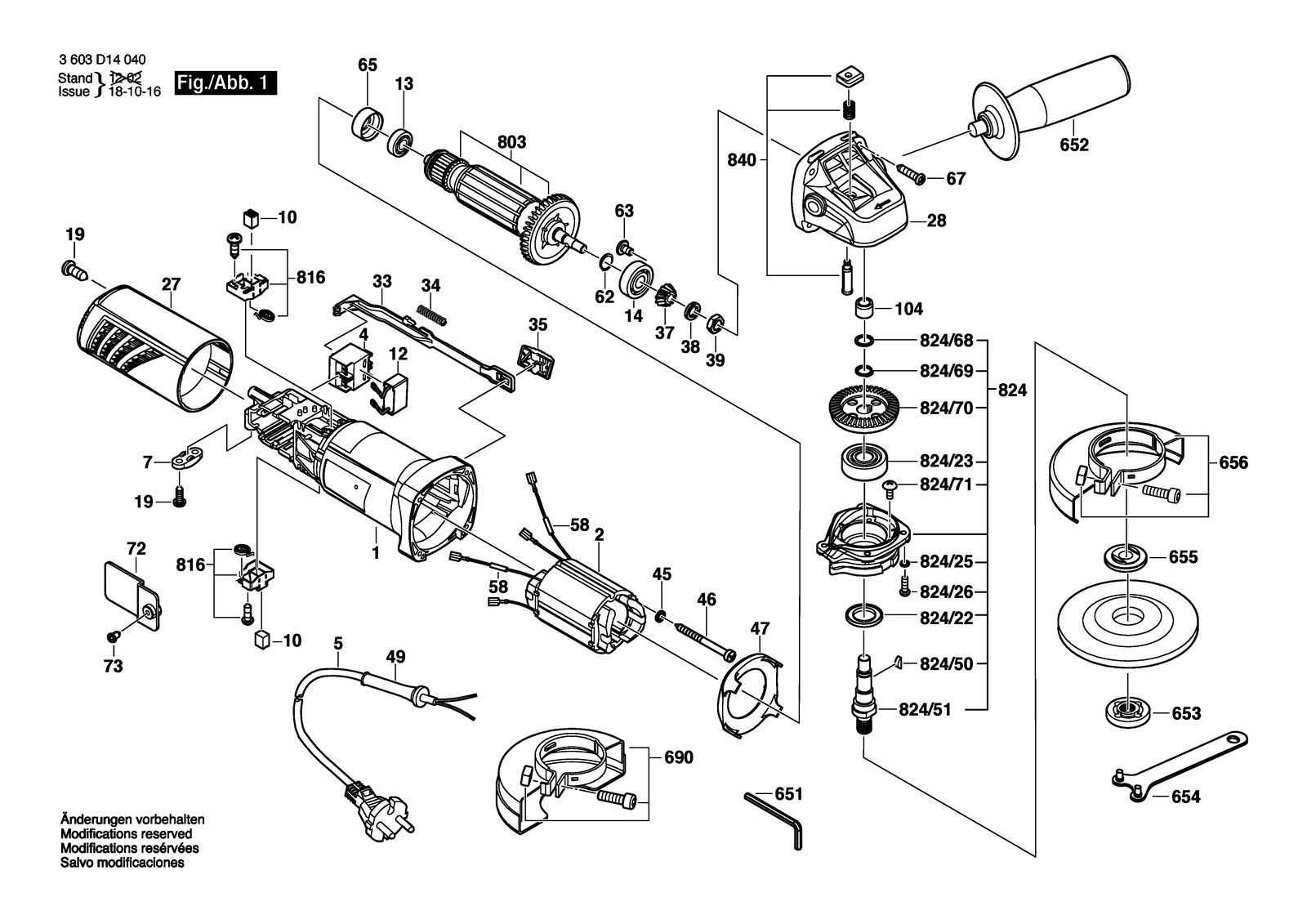

Bosch PWS 620-100 parts diagram, sheet 1
No.Part numberPart name
11619PA3263Motor Housing
101619PA0808Carbon-Brush Set
1041619PA0826Needle bearing
121619PA0784Suppression Capacitor
131619PA0780Groove ball bearing
141619PA0787Groove ball bearing
191619PA0801Special Screw
21619PA0775Field 220-240V
21619PA3287Field 100V
271619PA3267Housing Cover
281619PA3268Gear Housing
331619PA0793Adjusting Slide
341619PA0792Compression Spring
351619PA3269Switch Button
371619PA0798Bevel Gear
381619PA0799Spring Washer
391619PA0800Hex Nut
41619PA0781On-Off Switch
451619PA0803Washer
461619PA0796Screw
471619PA0797Air-Deflector Ring
491619PA0782Grommet
51619PA3264Power supply cord
51619PA3280Power supply cord
581619PA0827Suppressor Box
621619PA0785Retaining ring
631619PA0786Screw
651619PA0795Intermediate Ring
6511619PA0806Hex Screw Driver
6521619PA0829Auxiliary Handle
6531619PA0830Round Nut
6531619PA4177Round Nut
6541619PA0831Pin-Type Face-Wrench
6551619PA0832Clamping-Flange
6551619PA4178Clamping-Flange
6561619PA0833Protective Guard Silver
671619PA0805Tapping Screw
6901619PA3290Protective Guard
71619PA0783Cable Clip
721619PA3274Cover
731619PA3275Screw
8031619PA0776Armature 220-240V
8031619PA3285Armature 100V
8161619PA0788Brush Holder
8241619PA3270Spindle
824/221619PA0819Sealing disk
824/231619PA0815Groove ball bearing
824/251619PA0804Spring Washer
824/261619PA0818Cross Recessed-Head Screw
824/501619PA0820Woodruff Key
824/511619PA0821Grinding Spindle
824/681619PA0811Retaining ring
824/691619PA0812Washer
824/701619PA0813Crown Gear
824/711619PA0814Screw
8401619PA3272Push button set
