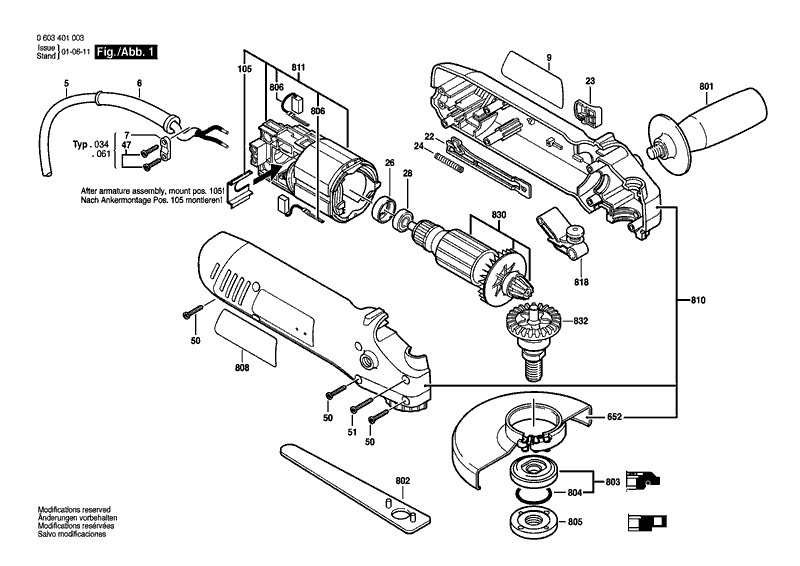

Bosch PWS 6-115 angle grinder: exploded parts diagram, 1 sheet, 138 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PWS 6-115: 138 positions on 1 sheet
Bosch PWS 6-115 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 105 | 1600591034 | Intermediate Plate |
| 105 | 1600591034 | Intermediate Plate |
| 105 | 1600591034 | Intermediate Plate |
| 105 | 1600591034 | Intermediate Plate |
| 105 | 1600591034 | Intermediate Plate |
| 22 | 1602319014 | Adjusting Slide |
| 22 | 1602319014 | Adjusting Slide |
| 22 | 1602319014 | Adjusting Slide |
| 22 | 1602319014 | Adjusting Slide |
| 22 | 1602319014 | Adjusting Slide |
| 23 | 1602026077 | Switch Handle Black |
| 23 | 1602026077 | Switch Handle Black |
| 23 | 1602026077 | Switch Handle Black |
| 23 | 1602026077 | Switch Handle Black |
| 23 | 1602026077 | Switch Handle Black |
| 24 | 1604611026 | Compression Spring |
| 24 | 1604611026 | Compression Spring |
| 24 | 1604611026 | Compression Spring |
| 24 | 1604611026 | Compression Spring |
| 24 | 1604611026 | Compression Spring |
| 26 | 1600502020 | Rubber Bushing |
| 26 | 1600502020 | Rubber Bushing |
| 26 | 1600502020 | Rubber Bushing |
| 26 | 1600502020 | Rubber Bushing |
| 26 | 1600502020 | Rubber Bushing |
| 28 | 1600905021 | Ball Bearing |
| 28 | 1600905021 | Ball Bearing |
| 28 | 1600905021 | Ball Bearing |
| 28 | 1600905021 | Ball Bearing |
| 28 | 1600905021 | Ball Bearing |
| 47 | 1619P00029 | Screw |
| 5 | 1607000387 | Power supply cord CN 2,65M 2 X 0,75MM H05 W-f |
| 5 | 2604460147 | Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 1604460432 | Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 1607000387 | Power supply cord CN 2,65M 2 X 0,75MM H05 W-f |
| 5 | 2604460147 | Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460229 | Power supply cord SAM 2,68M 2 X 082MM SJ 18/2 |
| 5 | 2604460283 | Power supply cord I/br 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 1604460431 | Power supply cord |
| 5 | 2604460147 | Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460283 | Power supply cord I/br 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 1607000387 | Power supply cord CN 2,65M 2 X 0,75MM H05 W-f |
| 5 | 1607000387 | Power supply cord CN 2,65M 2 X 0,75MM H05 W-f |
| 50 | 1619P00105 | Torx Oval-Head Screw 4X20 |
| 50 | 1619P00105 | Torx Oval-Head Screw 4X20 |
| 50 | 1619P00105 | Torx Oval-Head Screw 4X20 |
| 50 | 1619P00105 | Torx Oval-Head Screw 4X20 |
| 50 | 1619P00105 | Torx Oval-Head Screw 4X20 |
| 51 | 1619P00106 | Screw |
| 51 | 1619P00106 | Screw |
| 51 | 1619P00106 | Screw |
| 51 | 1619P00106 | Screw |
| 51 | 1619P00106 | Screw |
| 6 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 6 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 6 | 2600703013 | Grommet Ø7,6-Ø8,2X95 MM |
| 6 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 6 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 6 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 652 | 2609000390 | Protective Guard |
| 652 | 2609000390 | Protective Guard |
| 652 | 2609000390 | Protective Guard |
| 652 | 2609000390 | Protective Guard |
| 652 | 2609000390 | Protective Guard |
| 7 | 2601035001 | Cable Clip |
| 801 | 160202509T | Auxiliary Handle |
| 801 | 160202509T | Auxiliary Handle |
| 801 | 160202509T | Auxiliary Handle |
| 801 | 160202509T | Auxiliary Handle |
| 801 | 160202509T | Auxiliary Handle |
| 802 | 1607950052 | Pin-Type Face-Wrench |
| 802 | 1619P08927 | Pin-Type Face-Wrench |
| 802 | 1607950052 | Pin-Type Face-Wrench |
| 802 | 1607950052 | Pin-Type Face-Wrench |
| 802 | 1607950052 | Pin-Type Face-Wrench |
| 803 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 803 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 803 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 803 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 803 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 804 | 1600210039 | O-Ring 20,35X1,78 MM |
| 804 | 1600210039 | O-Ring 20,35X1,78 MM |
| 804 | 1600210039 | O-Ring 20,35X1,78 MM |
| 804 | 1600210039 | O-Ring 20,35X1,78 MM |
| 804 | 1600210039 | O-Ring 20,35X1,78 MM |
| 805 | 1603345043 | Round Nut M14 |
| 805 | 1603345043 | Round Nut M14 |
| 805 | 1603345043 | Round Nut M14 |
| 805 | 1603345043 | Round Nut M14 |
| 805 | 1603345043 | Round Nut M14 |
| 806 | 1607000994 | Carbon-Brush Set |
| 806 | 1607000352 | Carbon-Brush Set |
| 806 | 1607000994 | Carbon-Brush Set |
| 806 | 1607000994 | Carbon-Brush Set |
| 806 | 1607000994 | Carbon-Brush Set |
| 806 | 1607000994 | Carbon-Brush Set |
| 808 | 160111A3H3 | Nameplate |
| 808 | 1619P00521 | Nameplate |
| 808 | 1619P00522 | Nameplate |
| 808 | 1619P00523 | Nameplate |
| 808 | 1619P00524 | Nameplate |
| 808 | 1619P00526 | Nameplate |
| 808 | 1619P00527 | Nameplate |
| 808 | 160111A3H3 | Nameplate |
| 808 | 160111A3H3 | Nameplate |
| 808 | 160111A3H3 | Nameplate |
| 810 | 1607000371 | Housing Set |
| 810 | 1607000371 | Housing Set |
| 810 | 1607000371 | Housing Set |
| 810 | 1607000371 | Housing Set |
| 810 | 1607000371 | Housing Set |
| 811 | 1607000723 | Field 230-240V |
| 811 | 1607000722 | Field 115-120V |
| 811 | 1607000723 | Field 230-240V |
| 811 | 1607000723 | Field 230-240V |
| 811 | 1607000723 | Field 230-240V |
| 811 | 1607000723 | Field 230-240V |
| 818 | 1607000993 | Spindle Holder Black |
| 818 | 1607000993 | Spindle Holder Black |
| 818 | 1607000993 | Spindle Holder Black |
| 818 | 1607000993 | Spindle Holder Black |
| 818 | 1607000993 | Spindle Holder Black |
| 830 | 1607000990 | Armature With Fan 230-240V |
| 830 | 1607000990 | Armature With Fan 230-240V |
| 830 | 1607000997 | Armature 115-120V |
| 830 | 1607000990 | Armature With Fan 230-240V |
| 830 | 1607000990 | Armature With Fan 230-240V |
| 830 | 1607000990 | Armature With Fan 230-240V |
| 832 | 1607000992 | Grinding Spindle M14 |
| 832 | 1607000992 | Grinding Spindle M14 |
| 832 | 1607000992 | Grinding Spindle M14 |
| 832 | 1607000992 | Grinding Spindle M14 |
| 832 | 1607000992 | Grinding Spindle M14 |
| 9 | 1601118853 | Manufacturer's nameplate Sunny Side |
| 9 | 1601118854 | Manufacturer's nameplate Sunny Side |
| 9 | 1601118854 | Manufacturer's nameplate Sunny Side |
| 9 | 1601118C14 | Manufacturer's nameplate |
| 9 | 1601118C15 | Manufacturer's nameplate |
