Bosch PWS 20-230 J
Bosch PWS 20-230 J angle grinder: exploded parts diagram, 2 sheets, 170 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

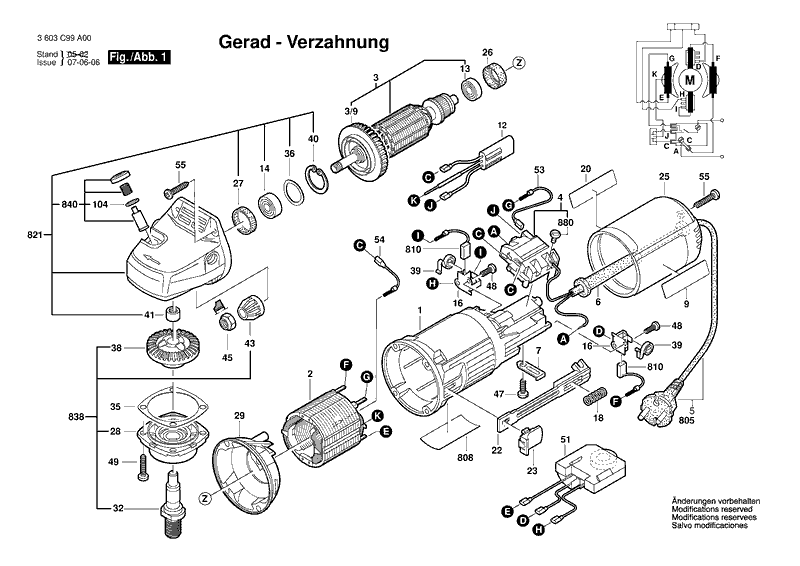

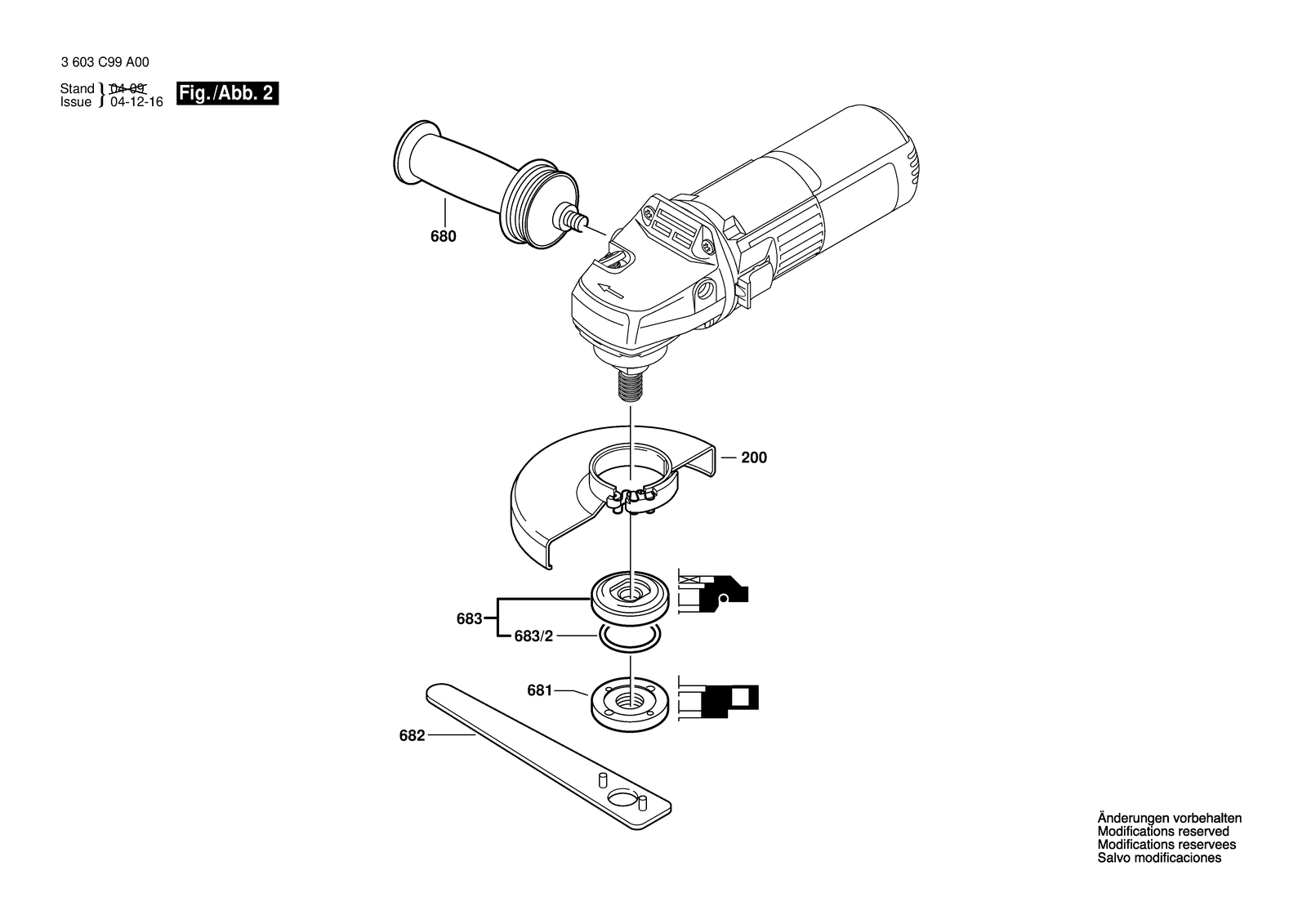

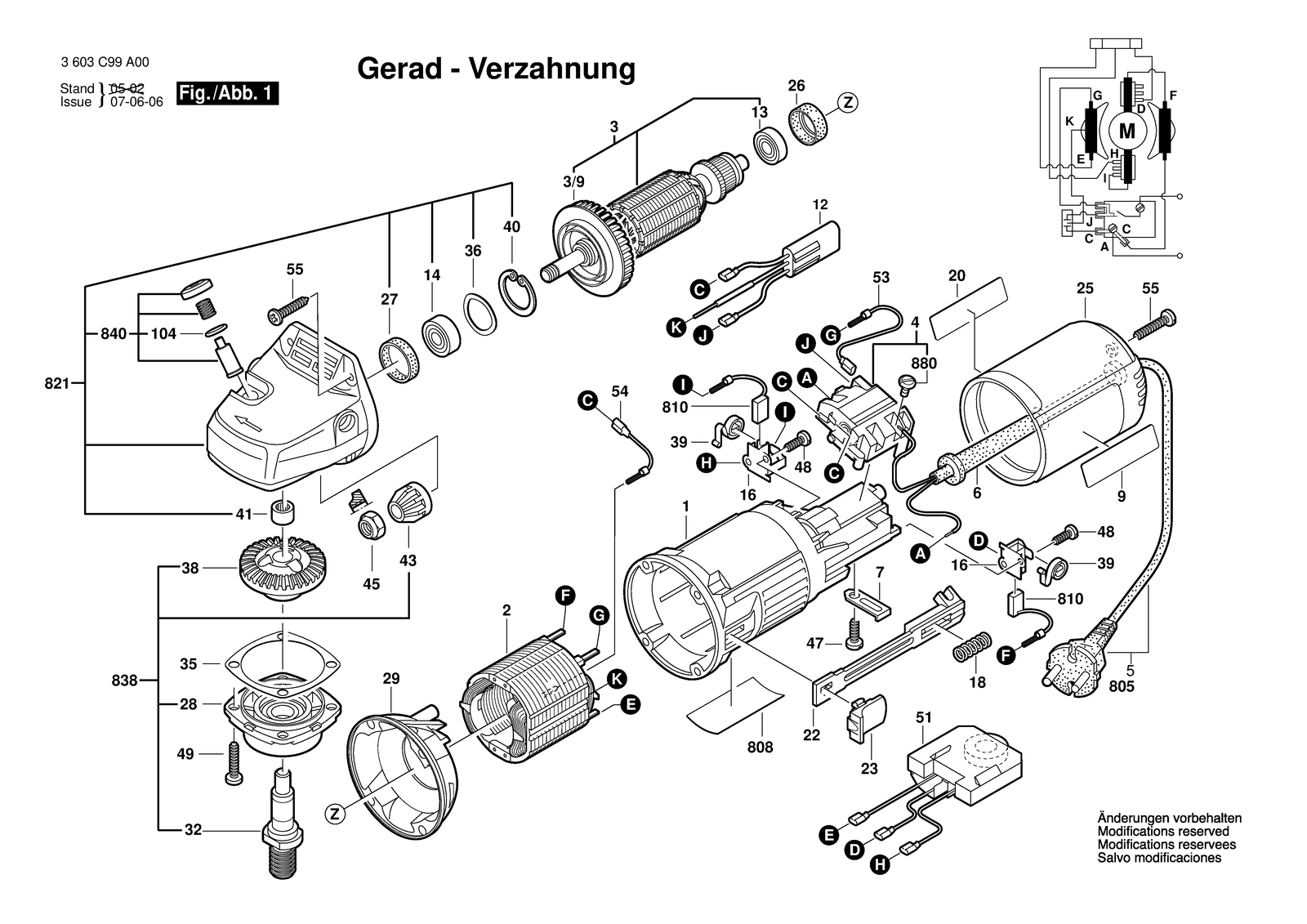

All parts of Bosch PWS 20-230 J: 170 positions on 2 sheets
Bosch PWS 20-230 J parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1605108189 | Motor Housing Green |
| 1 | 1605108189 | Motor Housing Green |
| 1 | 1605108189 | Motor Housing Green |
| 104 | 1600210044 | O-Ring Blue 4,5X1,0 MM |
| 104 | 1600210044 | O-Ring Blue 4,5X1,0 MM |
| 104 | 1600210044 | O-Ring Blue 4,5X1,0 MM |
| 12 | 2609001564 | Suppression Filter |
| 12 | 2609001564 | Suppression Filter |
| 12 | 2609001564 | Suppression Filter |
| 13 | 2600905032 | Ball Bearing 7X19X6 |
| 13 | 2600905032 | Ball Bearing 7X19X6 |
| 13 | 2600905032 | Ball Bearing 7X19X6 |
| 14 | 2600905080 | Groove ball bearing |
| 14 | 2600905080 | Groove ball bearing |
| 14 | 2600905080 | Groove ball bearing |
| 16 | 1600A003G4 | Brush Holder |
| 16 | 1600A003G4 | Brush Holder |
| 16 | 1600A003G4 | Brush Holder |
| 18 | 1604611026 | Compression Spring |
| 18 | 1604611026 | Compression Spring |
| 18 | 1604611026 | Compression Spring |
| 2 | 2609000764 | Field 220-230V |
| 2 | 2609000764 | Field 220-230V |
| 2 | 2609000764 | Field 220-230V |
| 20 | 2609000578 | Manufacturer's nameplate PWS 850 Ce |
| 20 | 2609000579 | Manufacturer's nameplate PWS 9-125 Ce |
| 20 | 2609001887 | Manufacturer's nameplate Pws Edition |
| 20 | 2609002520 | Manufacturer's nameplate PWS 9-125 X-Cel |
| 20 | 2609000832 | Manufacturer's nameplate PWS 8-125 Ce |
| 200 | 2609000391 | Protective Guard |
| 200 | 2609000391 | Protective Guard |
| 200 | 2609000391 | Protective Guard |
| 22 | 1602319002 | Adjusting Slide |
| 22 | 1602319002 | Adjusting Slide |
| 22 | 1602319002 | Adjusting Slide |
| 23 | 2609002368 | Switch Button Black |
| 23 | 2609002368 | Switch Button Black |
| 23 | 2609002368 | Switch Button Black |
| 25 | 2609000250 | Housing Cover |
| 25 | 2609000250 | Housing Cover |
| 25 | 2609000250 | Housing Cover |
| 26 | 1600502020 | Rubber Bushing |
| 26 | 1600502020 | Rubber Bushing |
| 26 | 1600502020 | Rubber Bushing |
| 27 | 1600206025 | Rubber Ring |
| 27 | 1600206025 | Rubber Ring |
| 27 | 1600206025 | Rubber Ring |
| 28 | 2609000320 | Bearing Flange |
| 28 | 2609000320 | Bearing Flange |
| 28 | 2609000320 | Bearing Flange |
| 29 | 1601328005 | Air-Deflector Ring |
| 29 | 1601328005 | Air-Deflector Ring |
| 29 | 1601328005 | Air-Deflector Ring |
| 3 | 1604010248 | Armature With Fan 220-230V |
| 3 | 1604010248 | Armature With Fan 220-230V |
| 3 | 1604010248 | Armature With Fan 220-230V |
| 3/9 | 1606610121 | Fan |
| 3/9 | 1606610121 | Fan |
| 3/9 | 1606610121 | Fan |
| 32 | 1607000D6A | Grinding Spindle |
| 32 | 1607000D6A | Grinding Spindle |
| 32 | 1607000D6A | Grinding Spindle |
| 35 | 1600136010 | Shim Thick 0,2 MM |
| 35 | 1600136011 | Shim Thick 0,3 MM |
| 35 | 1600136012 | Shim Thick 0,1 MM |
| 35 | 1600136010 | Shim Thick 0,2 MM |
| 35 | 1600136011 | Shim Thick 0,3 MM |
| 35 | 1600136012 | Shim Thick 0,1 MM |
| 35 | 1600136010 | Shim Thick 0,2 MM |
| 35 | 1600136011 | Shim Thick 0,3 MM |
| 35 | 1600136012 | Shim Thick 0,1 MM |
| 36 | 1600150011 | Spring Washer |
| 36 | 1600150011 | Spring Washer |
| 36 | 1600150011 | Spring Washer |
| 38 | 1606333606 | Crown Gear Z=36 |
| 38 | 1606333606 | Crown Gear Z=36 |
| 38 | 1606333606 | Crown Gear Z=36 |
| 39 | 1604652013 | Spiral Spring |
| 39 | 1604652013 | Spiral Spring |
| 39 | 1604652013 | Spiral Spring |
| 4 | 1607200086 | On-Off Switch |
| 4 | 1607200086 | On-Off Switch |
| 4 | 1607200086 | On-Off Switch |
| 40 | 2916660009 | Spring retaining ring DIN 472-25X1,2MM |
| 40 | 2916660009 | Spring retaining ring DIN 472-25X1,2MM |
| 40 | 2916660009 | Spring retaining ring DIN 472-25X1,2MM |
| 41 | 1600200029 | Plain bearing |
| 41 | 1600200029 | Plain bearing |
| 41 | 1600200029 | Plain bearing |
| 43 | 1606333605 | Bevel Gear Z=11 |
| 43 | 1606333605 | Bevel Gear Z=11 |
| 43 | 1606333605 | Bevel Gear Z=11 |
| 45 | 1603300016 | Hex Nut M7, SW10 |
| 45 | 1603300016 | Hex Nut M7, SW10 |
| 45 | 1603300016 | Hex Nut M7, SW10 |
| 47 | 2603490021 | Torx Oval-Head Screw 4X12 |
| 47 | 2603490021 | Torx Oval-Head Screw 4X12 |
| 47 | 2603490021 | Torx Oval-Head Screw 4X12 |
| 48 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 48 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 48 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 49 | 2914491410 | Thread-forming tap. Screw M4X16 |
| 49 | 2914491410 | Thread-forming tap. Screw M4X16 |
| 49 | 2914491410 | Thread-forming tap. Screw M4X16 |
| 5 | 1604460148 | Power supply cord CH 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 1604460148 | Power supply cord CH 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 1604460150 | Power supply cord GB 240V 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 1604460318 | Power supply cord |
| 51 | 1607233020 | Speed governor 230V |
| 51 | 1607233020 | Speed governor 230V |
| 51 | 1607233020 | Speed governor 230V |
| 53 | 1604448015 | Connecting Cable |
| 53 | 1604448015 | Connecting Cable |
| 53 | 1604448015 | Connecting Cable |
| 54 | 1604448016 | Connecting Cable |
| 54 | 1604448016 | Connecting Cable |
| 54 | 1604448016 | Connecting Cable |
| 55 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 55 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 55 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 6 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 6 | 2600703011 | Grommet Ø8,3-Ø9,4X95 MM |
| 6 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 6 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 680 | 2609002198 | Handle Black |
| 680 | 2609002198 | Handle Black |
| 680 | 2609002198 | Handle Black |
| 681 | 1603345043 | Round Nut M14 |
| 681 | 1603345043 | Round Nut M14 |
| 681 | 1603345043 | Round Nut M14 |
| 682 | 1619P08927 | Pin-Type Face-Wrench |
| 682 | 1619P08927 | Pin-Type Face-Wrench |
| 682 | 1619P08927 | Pin-Type Face-Wrench |
| 683 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 683 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 683 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 683/2 | 1600210039 | O-Ring 20,35X1,78 MM |
| 683/2 | 1600210039 | O-Ring 20,35X1,78 MM |
| 683/2 | 1600210039 | O-Ring 20,35X1,78 MM |
| 7 | 1601302017 | Fastening Clamp |
| 7 | 1601302017 | Fastening Clamp |
| 7 | 1601302017 | Fastening Clamp |
| 805 | 1607000386 | Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 805 | 1607000386 | Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 808 | 2609000517 | Nameplate |
| 808 | 2609000518 | Nameplate |
| 808 | 2609000519 | Nameplate |
| 808 | 2609002026 | Nameplate |
| 808 | 2609002524 | Nameplate |
| 808 | 2609000838 | Nameplate |
| 810 | 2609004138 | Carbon-Brush Set |
| 810 | 2609004138 | Carbon-Brush Set |
| 810 | 2609004138 | Carbon-Brush Set |
| 821 | 2609000768 | Gear Housing |
| 821 | 2609000768 | Gear Housing |
| 821 | 2609000768 | Gear Housing |
| 838 | 2609000769 | Crown Gear |
| 838 | 2609000769 | Crown Gear |
| 838 | 2609000769 | Crown Gear |
| 840 | 1607000253 | Push-Button Black |
| 840 | 1607000253 | Push-Button Black |
| 840 | 1607000253 | Push-Button Black |
| 880 | 2910110048 | Pan head screw DIN 85-AM3X6-CUZN |
| 880 | 2910110048 | Pan head screw DIN 85-AM3X6-CUZN |
| 880 | 2910110048 | Pan head screw DIN 85-AM3X6-CUZN |
| 9 | 2609000591 | Manufacturer's nameplate PWS 850 Ce |
| 9 | 1601118M31 | Manufacturer's nameplate Pws Edition |
| 9 | 2609000592 | Manufacturer's nameplate PWS 9-125 Ce |
| 9 | 2609002467 | Manufacturer's nameplate PWS 9-125 X-Cel |
| 9 | 2609000831 | Manufacturer's nameplate PWS 8-125 Ce |
