Makita PW5000C
Makita PW5000C: exploded parts diagram, 1 sheet, 62 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita PW5000C: 62 positions on 1 sheet

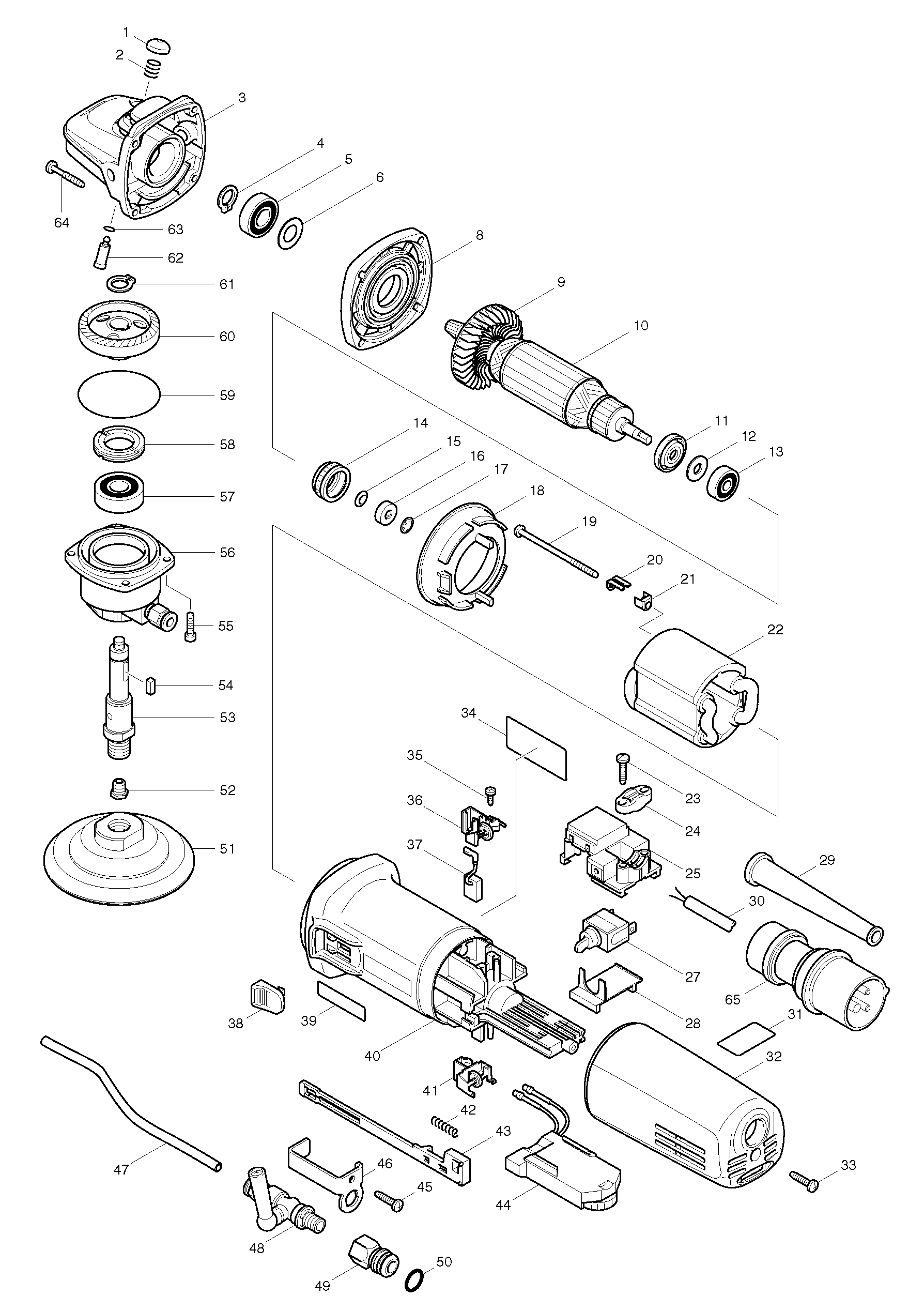

Sheet 1: Makita PW5000C parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 417236-8 | Makita 417236-8 PIN CAP |
| 2 | 233072-2 | Makita 233072-2 COMPRESSION SPRING 8, 9523NB |
| 3 | 153718-3 | Makita 153718-3 GEAR HOUSING COMP.9565C |
| 4 | 961052-5 | Makita 961052-5 RETAINING RING S-12, 4100NH |
| 5 | 211131-2 | Makita 211131-2 BALL BEARING 6001DDW, 5903R |
| 6 | 253084-9 | Makita 253084-9 FLAT WASHER 12, HR4002 |
| 8 | 317359-1 | Makita 317359-1 GEAR HOUSING COVER |
| 10 | 515266-4 | Makita 515266-4 ARMATURE ASS'Y 115V PW5001C PW5000C |
| 11 | 681656-4 | Makita 681656-4 INSULATION WASHER |
| 12 | 253823-7 | Makita 253823-7 FLAT WASHER 7, LS1040 |
| 13 | 210027-4 | Makita 210027-4 BALL BEARING 627DDW |
| 14 | 421738-8 | Makita 421738-8 LABYRINTH RUBBER RING 22 |
| 15 | 267756-0 | Makita 267756-0 WAVE WASHER 6 |
| 16 | 688117-5 | Makita 688117-5 Magnet Sleeve for GD0800C GDO810C |
| 17 | 259039-2 | Makita 259039-2 SELF LOCK 6 4340FTC |
| 18 | 413076-2 | Makita 413076-2 BAFFLE PLATE |
| 19 | 266258-3 | Makita 266258-3 TAPPING SCREW 4X70 |
| 20 | 344871-8 | Makita 344871-8 RETAINER, HR2230 |
| 21 | 417237-6 | Makita 417237-6 INSULATION COVER, MT814 |
| 22 | 626546-4 | Makita 626546-4 FIELD 115V, PW5000C |
| 23 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 24 | 687052-4 | Makita 687052-4 CORD CLAMP, 4100NH |
| 25 | 632945-0 | Makita 632945-0 SWITCH BLOCK |
| 27 | 651418-4 | Makita 651418-4 Switch ST115A-40 for 9526B SG1250 PW5000C 4305 BO6040 |
| 28 | 687113-0 | Makita 687113-0 COVER |
| 29 | 682566-8 | Makita 682566-8 CORD GUAUD 10-110, 6824 |
| 30 | 665937-4 | Makita 665937-4 POWER SUPPLY CORD 1.0-2-5 |
| 31 | 816398-3 | |
| 32 | 418453-3 | |
| 33 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 34 | 860101-4 | |
| 35 | 266256-7 | Makita 266256-7 TAPPING SCREW PT3X10 |
| 36 | 643765-7 | |
| 37 | 191978-9 | Makita 191978-9 Carbon Brushes CB-318 for BO6040 GD0800C PW5000 |
| 38 | 417813-6 | Makita 417813-6 Switch Knob 9564 9565 BO6040 GD0800C SG1250 PW5000C |
| 39 | 819080-3 | |
| 40 | 183740-6 | Makita 183740-6 MOTOR HOUSING SG1250 |
| 41 | 643805-1 | |
| 42 | 233071-4 | Makita 233071-4 COMPRESSION SPRING 4 |
| 43 | 417186-7 | Makita 417186-7 SWITCH LEVER |
| 44 | 631595-8 | Makita 631595-8 Controller for PW5000C |
| 45 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 46 | 345372-9 | |
| 47 | 245031-4 | |
| 48 | 153716-7 | |
| 49 | 331669-2 | Makita 331669-2 HOSE JOINT FORPW5000 |
| 50 | 213107-5 | Makita 213107-5 O RING 12 |
| 51 | 743080-0 | Makita 743080-0 PAD 100 PW5000 5PCS |
| 52 | 324407-9 | Makita 324407-9 NOZZLE FORPW5000 |
| 53 | 324409-5 | Makita 324409-5 SPINDLE PW5000C |
| 54 | 254202-2 | Makita 254202-2 KEY 4 LS1013 |
| 55 | 265490-6 | Makita 265490-6 HEX. SOCKET HEAD BOLT M4X |
| 56 | 153717-5 | Makita 153717-5 BEARING BOX COMPLETE PW5001C |
| 57 | 211129-9 | Makita 211129-9 Ball Bearing 6201DDW 5606B |
| 58 | 285841-7 | Makita 285841-7 BEARING RETAINER 9565C |
| 59 | 213673-2 | Makita 213673-2 O RING 52 |
| 60 | 227455-6 | Makita 227455-6 SPIRAL BEVEL GEAR 38 PW5001C |
| 61 | 961052-5 | Makita 961052-5 RETAINING RING S-12, 4100NH |
| 62 | 256459-1 | Makita 256459-1 PIN |
| 63 | 213048-5 | Makita 213048-5 O-Ring 6 |
| 64 | 266257-5 | Makita 266257-5 TAPPING SCREW 4*28, 9565C |
| 65 | 655033-6 | Makita 655033-6 PLUG PW5000C |
