Bosch PVS 280 A

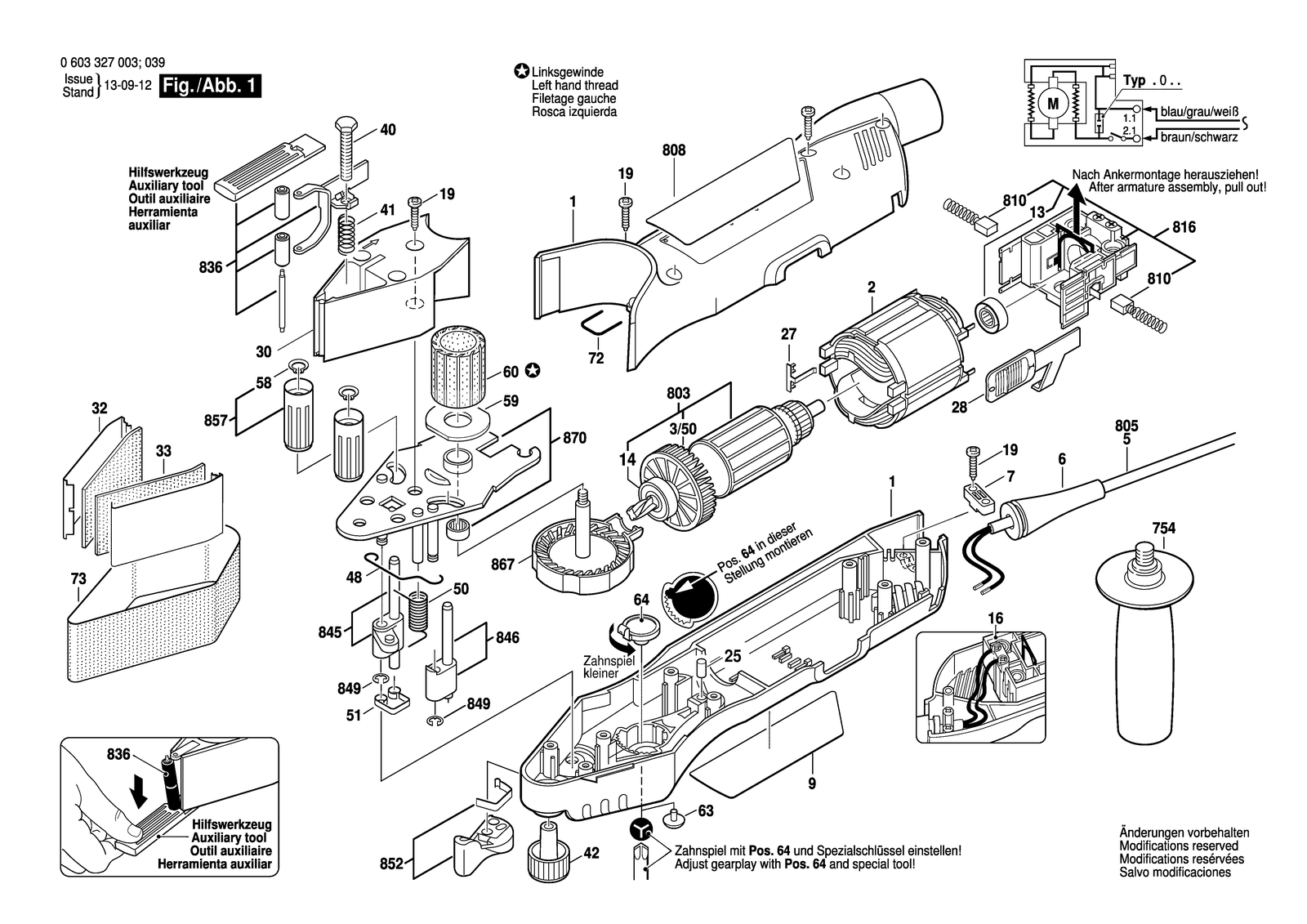

Bosch PVS 280 A multi-purpose belt sander: exploded parts diagram, 1 sheet, 64 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PVS 280 A: 64 positions on 1 sheet
Bosch PVS 280 A parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605104574 | Housing Section Green |
| 13 | 2605805008 | Flanged Bearing |
| 14 | 2600905065 | Groove ball bearing 9X24X7 |
| 19 | 2603490022 | Screw 4X16 |
| 2 | 2604220586 | Field 100V |
| 2 | 2604220587 | Field 115V |
| 2 | 2604220588 | Field 230-240V |
| 25 | 2603100056 | Damping rubber |
| 27 | 2601329037 | Contact Spring |
| 28 | 2602319014 | Switch Slide |
| 3/50 | 2606610090 | Fan |
| 30 | 2608000194 | Wedge |
| 32 | 2601098045 | Slide Plate |
| 33 | 2601005019 | Felt Strip |
| 40 | 2911061207 | Hex Screw M 6X35 DIN 933-8.8 |
| 41 | 2604612006 | Compression Spring |
| 42 | 2606621011 | Control Knob Red |
| 48 | 2601990018 | Release Lever |
| 5 | 1604460431 | Power supply cord |
| 5 | 2604460135 | Power supply cord J 2,5M 2 X 0,75MM Pvc |
| 5 | 2604460140 | Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460145 | Power supply cord AUS 2,6M 2 X 0,75MM Pvc |
| 5 | 2604460229 | Power supply cord SAM 2,68M 2 X 082MM SJ 18/2 |
| 5 | 2604460282 | Power supply cord I / BR 2,65M 2 X 1,0MM H05 Vv-F |
| 50 | 2604651009 | Coiled Spring |
| 51 | 2604680002 | Retaining Spring |
| 58 | 2600118008 | Clamping Ring |
| 59 | 2601010059 | Ceramic Plate |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 6 | 2600703018 | Grommet Ø7,3-Ø8,6X76 MM |
| 6 | 2600703019 | Grommet Ø8,7-Ø9,6X76 MM |
| 60 | 2606625026 | Drive Roller |
| 63 | 2600591011 | Plug |
| 64 | 2605500138 | Adjusting Plate Black |
| 7 | 1611035005 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 72 | 2603239027 | Sealing Cord |
| 73 | 2608604893 | Abrasive Belt |
| 754 | 160202509T | Auxiliary Handle |
| 803 | 2604010942 | Armature 100V |
| 803 | 2604010943 | Armature 115V |
| 803 | 2604010944 | Armature 230V |
| 805 | 1607000388 | Power supply cord EU 2,65M 2 X 1,0MM H05 Rn-F |
| 808 | 2601119503 | Marking Plate |
| 808 | 2601119504 | Marking Plate |
| 808 | 2601119505 | Nameplate |
| 808 | 2601119506 | Nameplate |
| 808 | 2601119507 | Nameplate |
| 808 | 2601119508 | Marking Plate |
| 808 | 2601119510 | Marking Plate |
| 808 | 2601119512 | Marking Plate |
| 808 | 2601119513 | Nameplate |
| 810 | 2604321921 | Carbon-Brush Set |
| 816 | 2604337901 | Brush Plate |
| 836 | 2606625902 | Deflection pulley |
| 845 | 2601990900 | Tape Stretching Lever |
| 846 | 2601990901 | Tape Stretching Lever |
| 849 | 2916080007 | Locking washer DIN 6799-4-FST |
| 852 | 2601990902 | Release Lever |
| 857 | 2606625903 | Roller |
| 867 | 2606334902 | Crown Gear |
| 870 | 2605500907 | Gear Cover |
| 9 | 2601119135 | Manufacturer's nameplate |
| 9 | 2601119756 | Manufacturer's nameplate |
