Makita PV7000C
Makita PV7000C: exploded parts diagram, 1 sheet, 42 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita PV7000C: 42 positions on 1 sheet

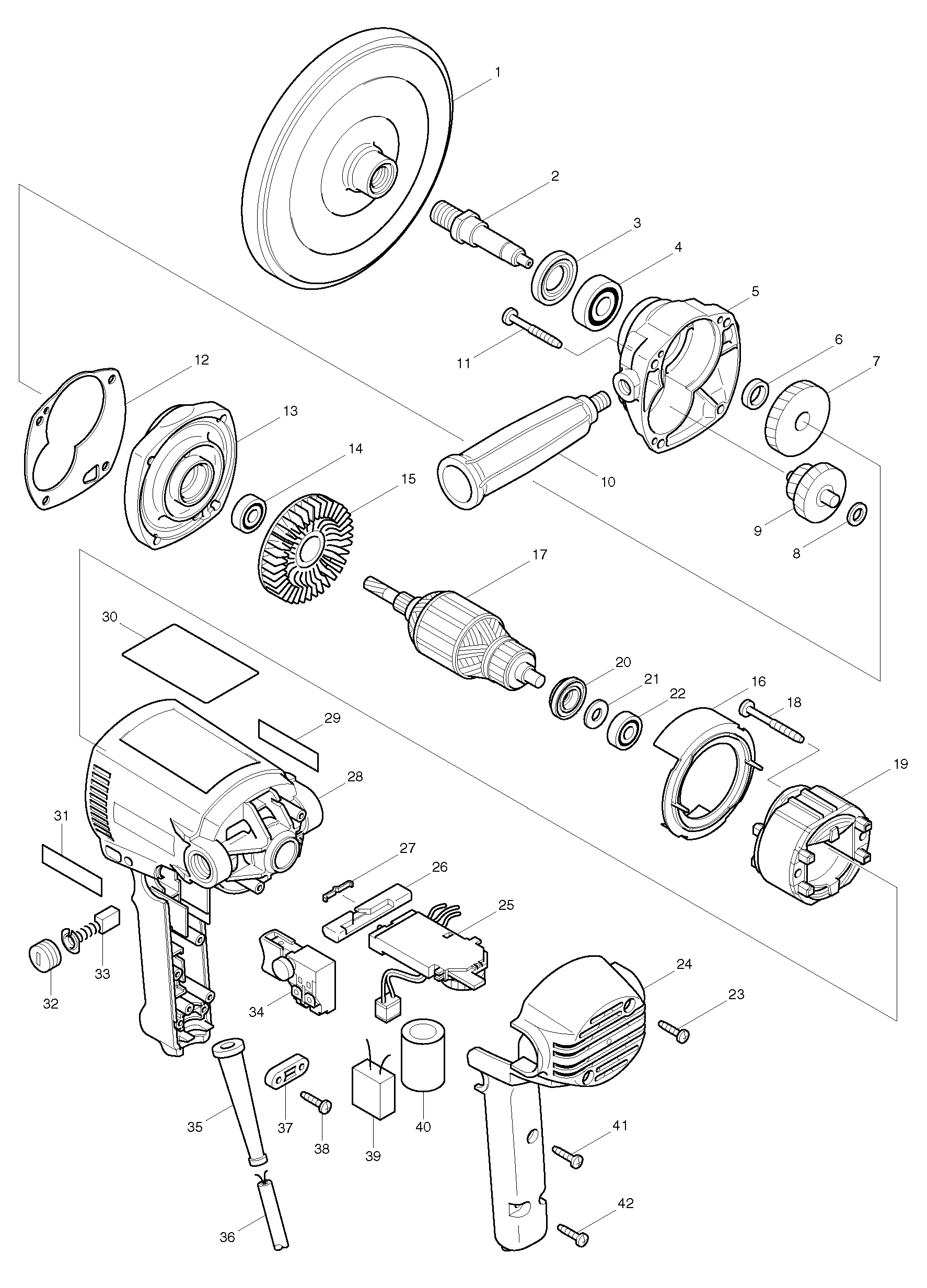

Sheet 1: Makita PV7000C parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 743053-3 | Makita 743053-3 Rubber Backing Pad Hook and Loop for 9237CB |
| 2 | 324079-0 | Makita 324079-0 SPINDLE |
| 3 | 152690-6 | |
| 4 | 211129-9 | Makita 211129-9 Ball Bearing 6201DDW 5606B |
| 5 | 152691-4 | Makita 152691-4 GEAR HOUSING COMPLETE |
| 6 | 257707-1 | |
| 7 | 226536-3 | |
| 8 | 253215-0 | Makita 253215-0 FLAT WASHER 8 |
| 9 | 226141-6 | |
| 10 | 273649-1 | |
| 11 | 266211-9 | Makita 266211-9 TAPPING SCREW 5X40 |
| 12 | 442132-1 | Makita 442132-1 GASKET |
| 13 | 152692-2 | Makita 152692-2 GEAR HOUSING COVER COMPLE TE |
| 14 | 210005-4 | Makita 210005-4 BALL BEARING 608DDW, UB1100 |
| 15 | 240020-4 | Makita 240020-4 FAN 65 |
| 16 | 413077-0 | |
| 17 | 516433-4 | LOST Makita 516433-4 Armature Ass'y 220-240V for PV7000C |
| 18 | 266056-5 | Makita 266056-5 TAPPING SCREW 5X45 |
| 19 | 599013-1 | Makita 599013-1 FIELD ASS'Y 220-240V |
| 20 | 681660-3 | Makita 681660-3 INSULATION WASHER, SA7000C |
| 21 | 253139-0 | Makita 253139-0 FLAT WASHER 8, 6823 |
| 22 | 210005-4 | Makita 210005-4 BALL BEARING 608DDW, UB1100 |
| 23 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 24 | 417450-6 | |
| 25 | 631427-9 | DISC Makita 631427-9 Controller 240v for PV7000C Polisher |
| 26 | 417449-1 | |
| 27 | 232201-4 | Makita 232201-4 LEAF SPRING |
| 28 | 183300-4 | |
| 29 | 819063-3 | Makita 819063-3 MAKITA LOGO LABEL, 9523NB |
| 30 | 852814-1 | |
| 31 | 819063-3 | Makita 819063-3 MAKITA LOGO LABEL, 9523NB |
| 32 | 643750-0 | Makita 643750-0 BRUSH HOLDER CAP, 4100NH |
| 33 | 191963-2 | Makita 191963-2 Carbon Brushes CB-303 for 5703 9403 9404 9903 |
| 34 | 651297-0 | Makita 651297-0 Trigger Switch PV7001C GV7000C |
| 35 | 682559-5 | Makita 682559-5 CORD GUARD 8-110, 6826 |
| 36 | 695034-2 | Makita 695034-2 POWER SUPPLY CORD 1.0-2-4 |
| 37 | 687052-4 | Makita 687052-4 CORD CLAMP, 4100NH |
| 38 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 39 | 645253-0 | Makita 645253-0 CAPACITOR, 6410 |
| 40 | 685722-9 | Makita 685722-9 SPONGE SHEET |
| 41 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 42 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
