Bosch PushDrive

Bosch PushDrive cordless screw driver: exploded parts diagram, 1 sheet, 18 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PushDrive: 18 positions on 1 sheet

Bosch PushDrive parts list (1 sheet)

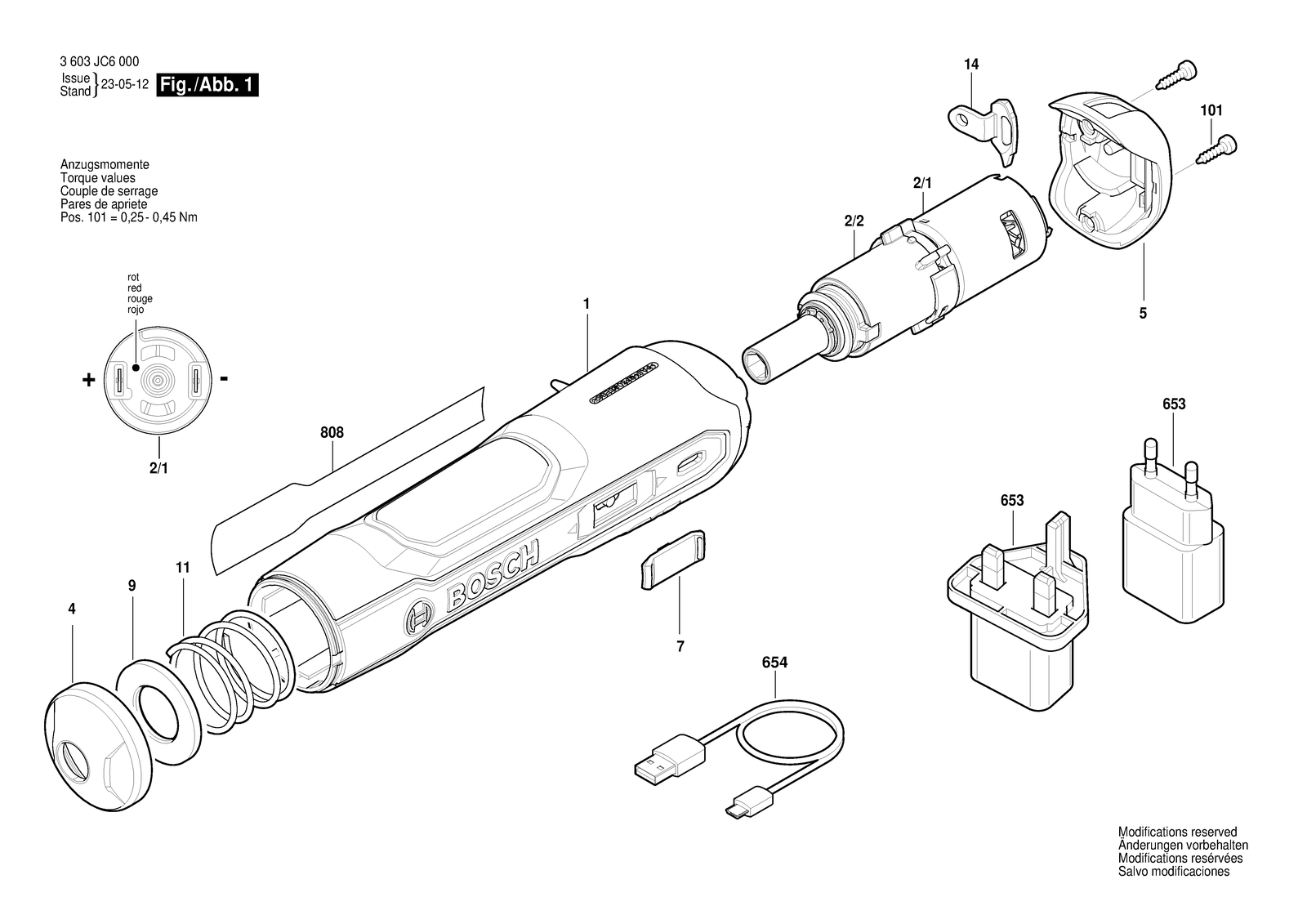

Bosch PushDrive parts diagram, sheet 1
No.Part numberPart name
11600A016U1Housing
1012609111496Screw
111604612028Compression Spring
1416055002DVCover
2/1160702266WDC motor
2/21600A011H9Gear Box
41600A011H8Front Cap
51600A011H7Cell Cover
6532609120713Charger EU 100-240V 5V 1A
6532609120715Charger J 100-240V 5V 1A
6532609120716Charger KR 100-240V 5V 1A
6532609120718Charger GB 100-240V 5V 1A
6541607000DN8USB cable USB Type A / Micro USB
71600A011HDChange-Over Switch
808160111A5XZNameplate
808160111A6NPNameplate
808160111A6NRNameplate
91600A011HBWasher
