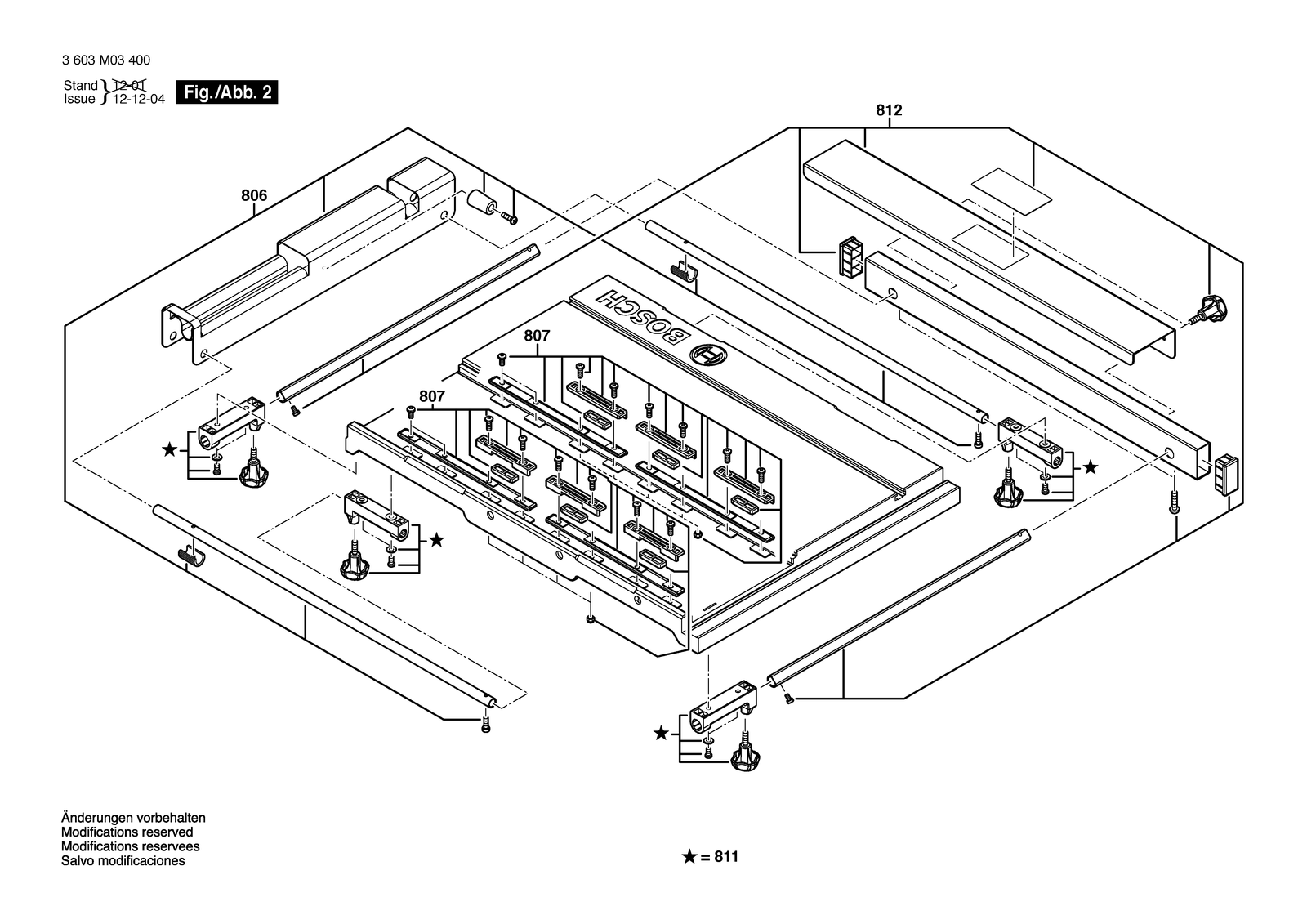

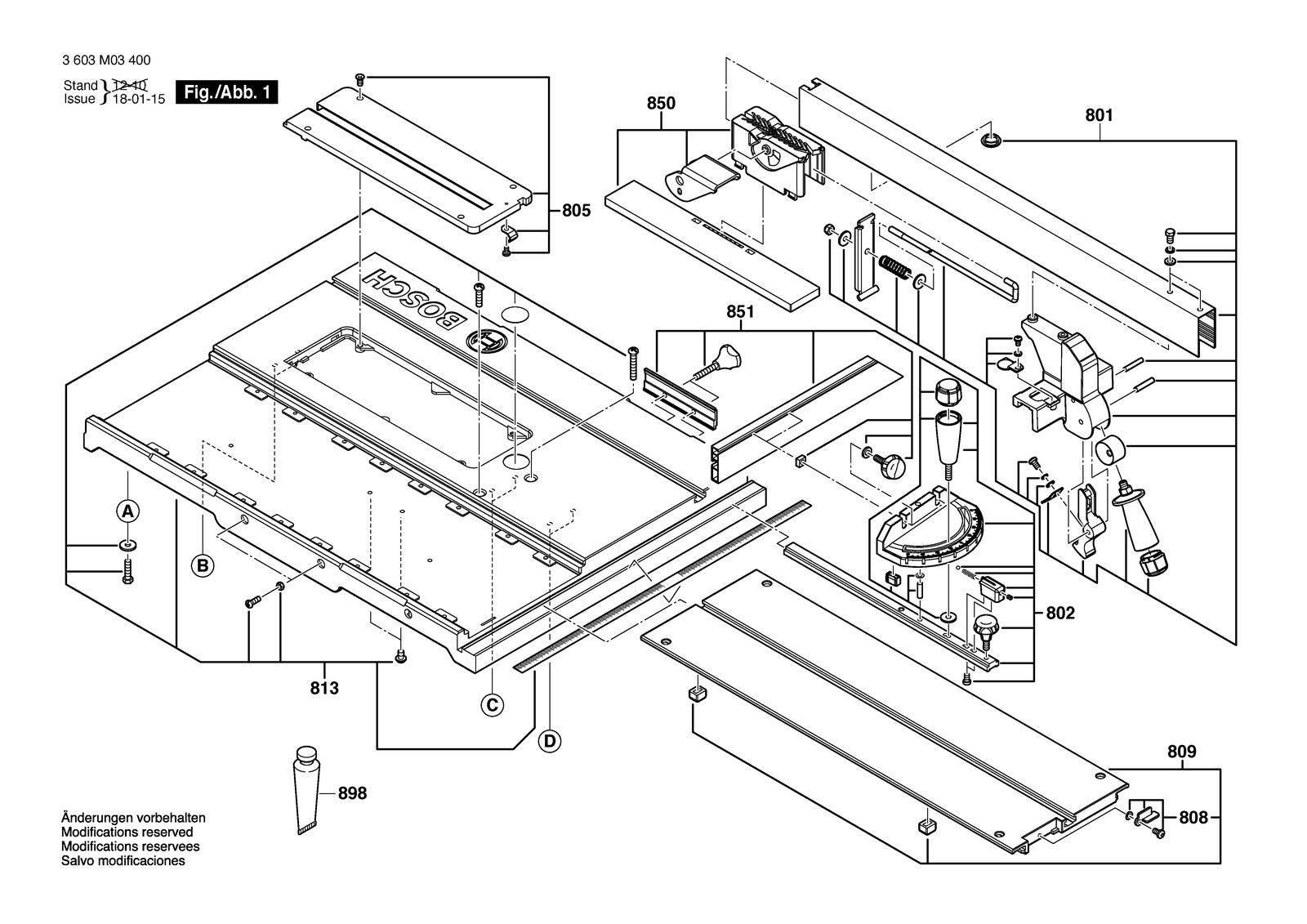

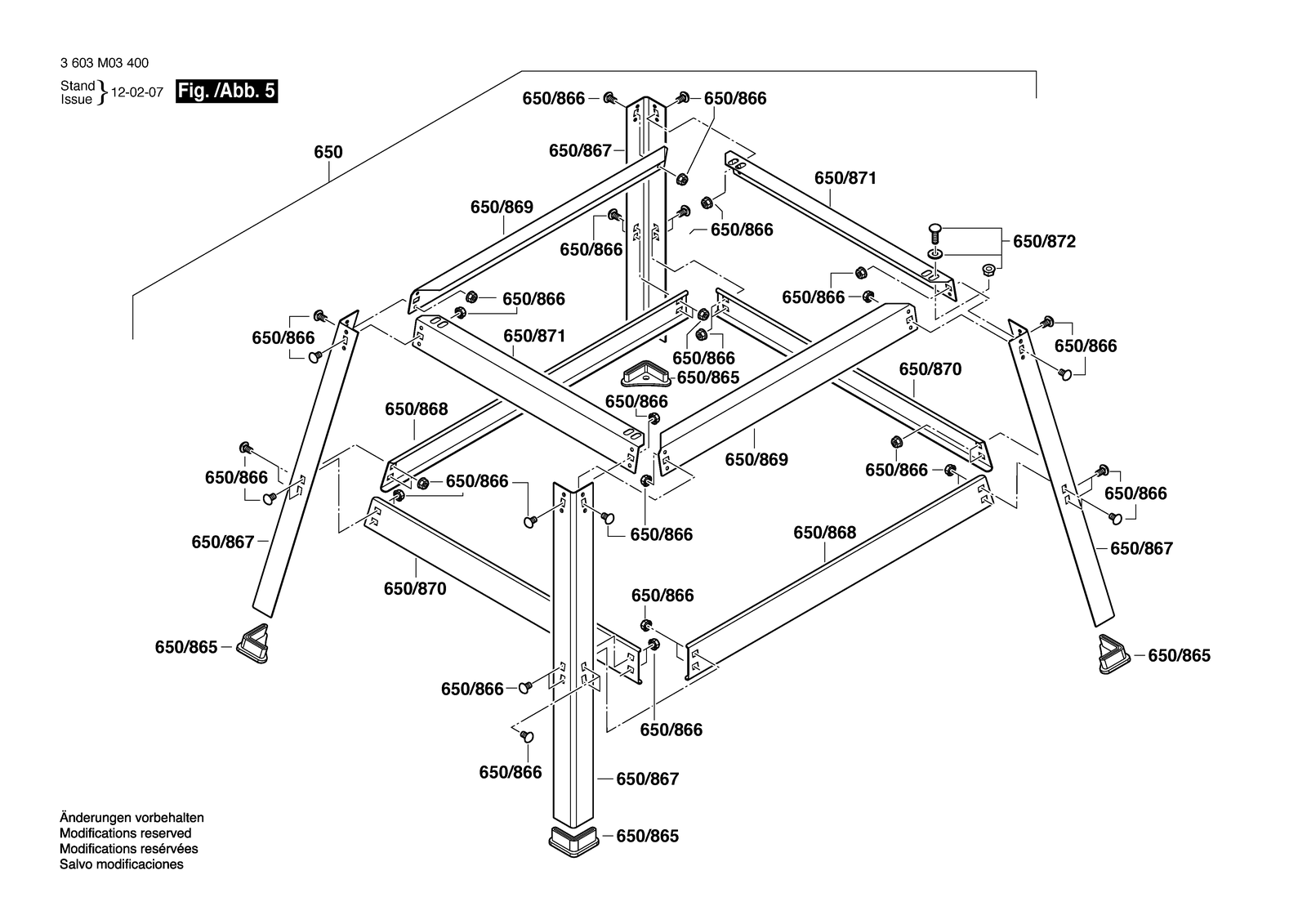

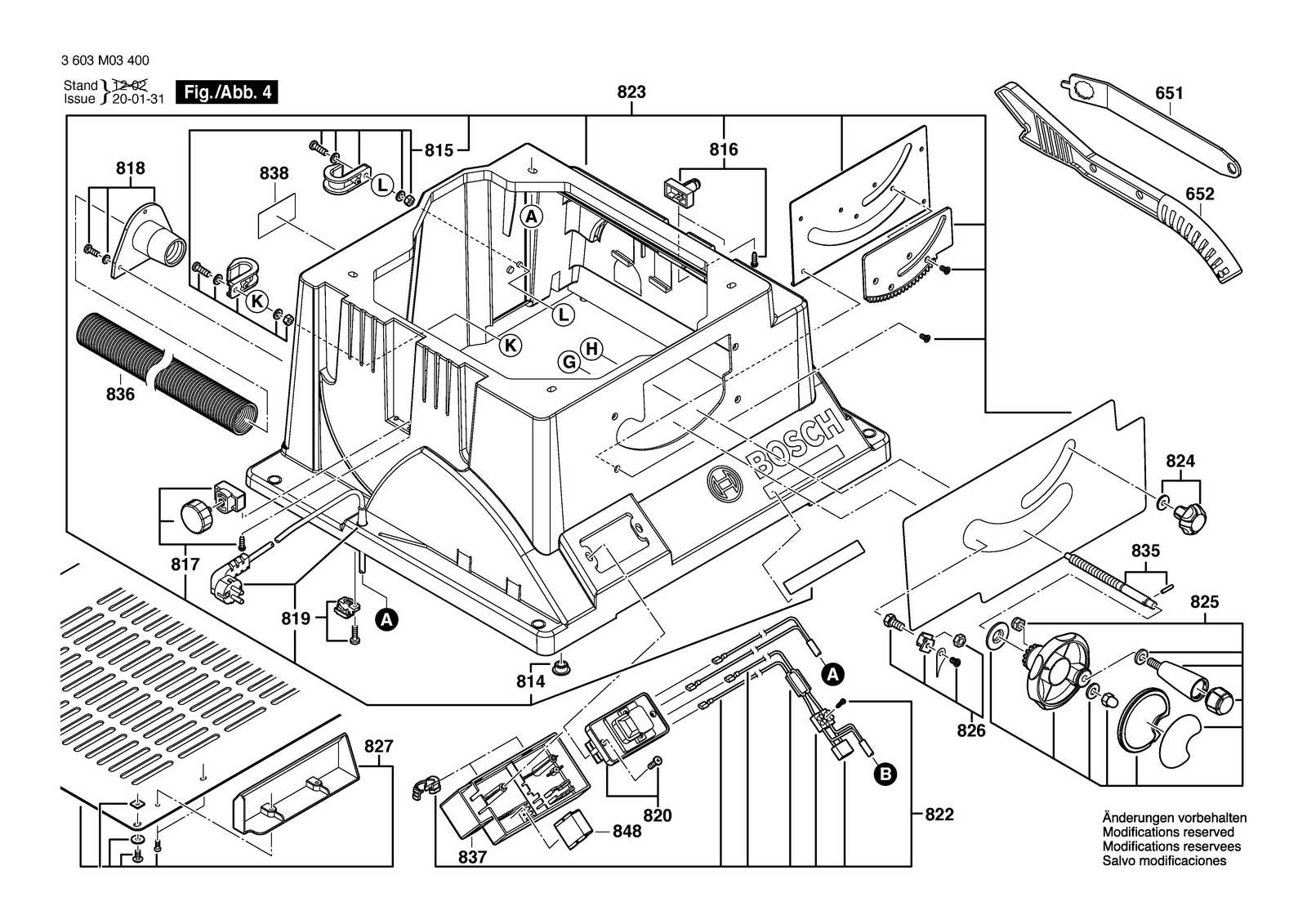

Bosch PTS 10 table saw: exploded parts diagram, 5 sheets, 61 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PTS 10: 61 positions on 5 sheets
Bosch PTS 10 parts list (5 sheets)
| No. | Part number | Part name |
|---|---|---|
| 650 | 1619PA3202 | Base |
| 650/865 | 1619PA3203 | Rubber Base |
| 650/866 | 1619PA3204 | Fastening parts kit 24 piece |
| 650/867 | 1619PA3205 | Profile Strut |
| 650/868 | 1619PA3206 | Profile Strut |
| 650/869 | 1619PA3207 | Profile Strut |
| 650/870 | 1619PA3208 | Profile Strut |
| 650/871 | 1619PA3209 | Profile Strut |
| 650/872 | 1619PA3210 | Fastening parts kit |
| 651 | 1619PA3211 | Key |
| 652 | 1619PA3212 | Pusher |
| 801 | 1619PA3153 | Edge Guide |
| 802 | 1619PA3154 | Mitre Gauge |
| 803 | 1619PA3155 | Protective Cover |
| 804 | 1619PA3156 | Protective Cover |
| 805 | 1619PA3157 | Insert |
| 806 | 1619PA3158 | Support |
| 807 | 1619PA3159 | Sliding Guide |
| 808 | 1619PA3160 | Lever |
| 809 | 1619PA3161 | Ball Rail Table |
| 811 | 1619PA3162 | Sliding Guide |
| 812 | 1619PA3163 | Support |
| 813 | 1619PA3164 | Table |
| 814 | 1619PA3165 | Rubber Base |
| 815 | 1619PA3166 | Cable Cleat |
| 816 | 1619PA3167 | Mounting Clamp |
| 817 | 1619PA3168 | Fastening Part |
| 818 | 1619PA3169 | Connection Piece |
| 819 | 1619PA3170 | Power supply cord |
| 819 | 1619PA3171 | Power supply cord |
| 820 | 1619PA3172 | On-Off Switch |
| 822 | 1619PA3173 | Cable Set |
| 823 | 1619PA3174 | Housing |
| 824 | 1619PA3175 | Clamp Screw |
| 825 | 1619PA3176 | Vertical Adjustment |
| 826 | 1619PA3177 | Pointer |
| 827 | 1619PA3178 | Cover Plate |
| 828 | 1619PA3179 | Swivel Bearing |
| 829 | 1619PA3180 | Carrier |
| 830 | 1619PA3181 | Fastening parts kit |
| 832 | 1619PA3182 | Locking Device |
| 833 | 1619PA3183 | Toolholder |
| 834 | 1619PA3184 | Swivelling Axis |
| 835 | 1619PA3185 | Shaft |
| 836 | 1619PA3186 | Suction Pipe |
| 837 | 1619PA3187 | Switch Housing |
| 838 | 1619PA3188 | Nameplate |
| 838 | 1619PA3189 | Nameplate |
| 839 | 1619PA3190 | Piston Assembly Group |
| 840 | 1619PA3191 | Un. Flange-Mtd. Motor |
| 841 | 1619PA3192 | Armature 230V |
| 842 | 1619PA3193 | Bearing |
| 843 | 1619PA3194 | Field 230V |
| 844 | 1619PA3195 | Motor Housing |
| 845 | 1619PA3196 | Carbon-Brush Set |
| 846 | 1619PA3197 | Gear Housing |
| 847 | 1619PA3198 | Output Shaft |
| 848 | 1619PA3199 | Soft Start-Up Module |
| 850 | 1619PA3200 | Edge Guide |
| 851 | 1619PA3201 | Edge Guide |
| 898 | 1615430005 | Grease Tube 45 Ml |
