Bosch PTS 10 table saw: exploded parts diagram, 5 sheets, 60 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PTS 10: 60 positions on 5 sheets

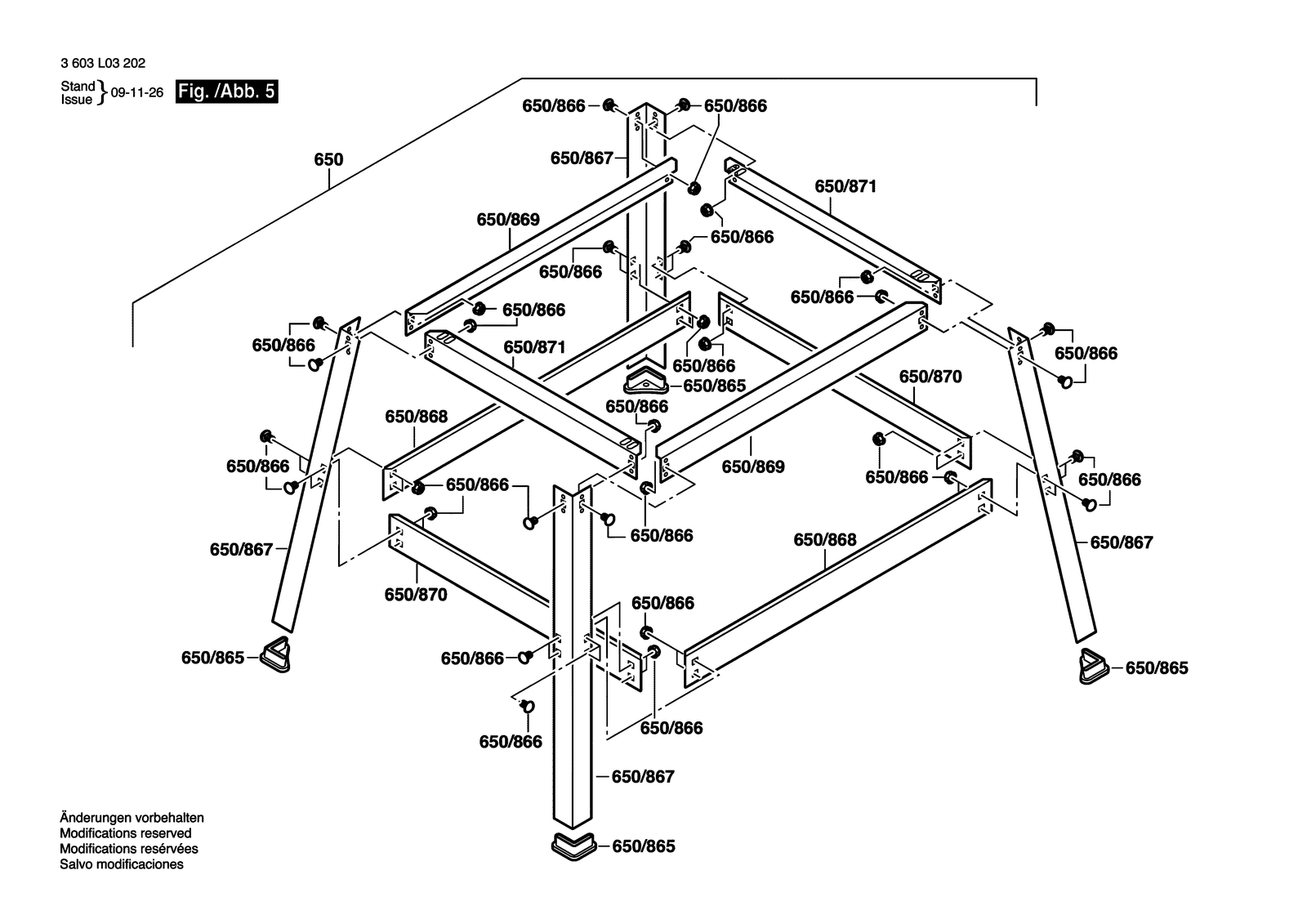

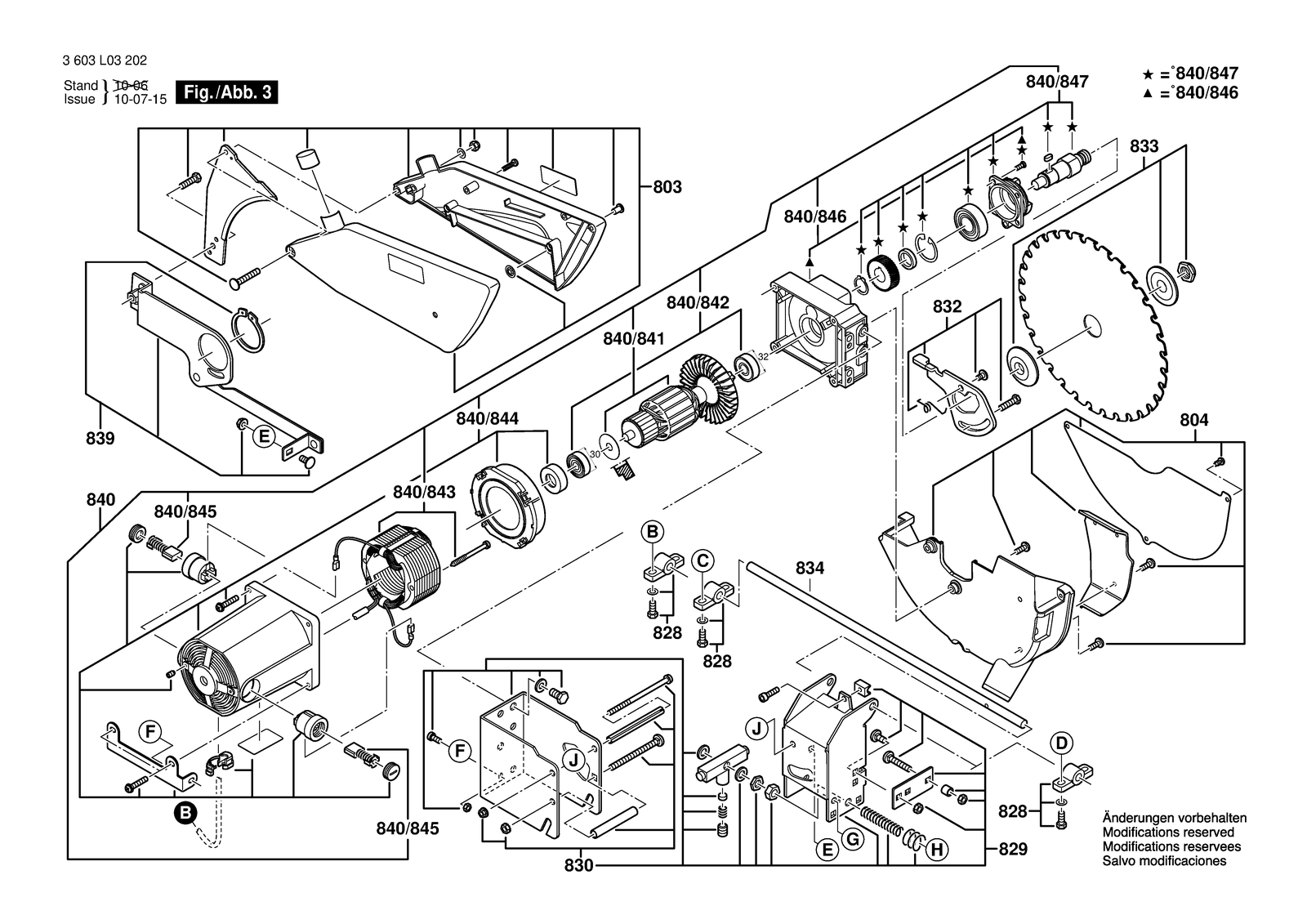

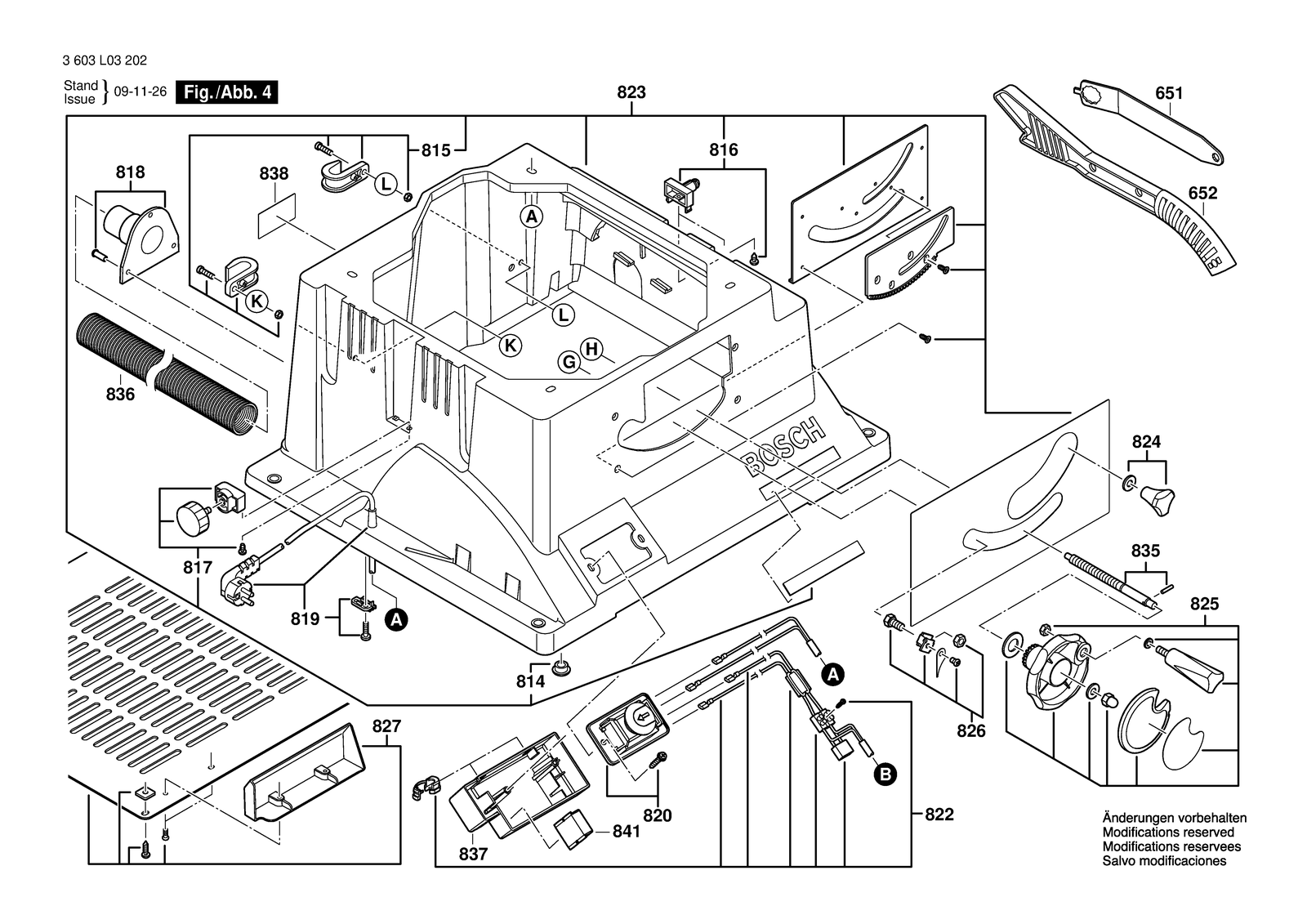

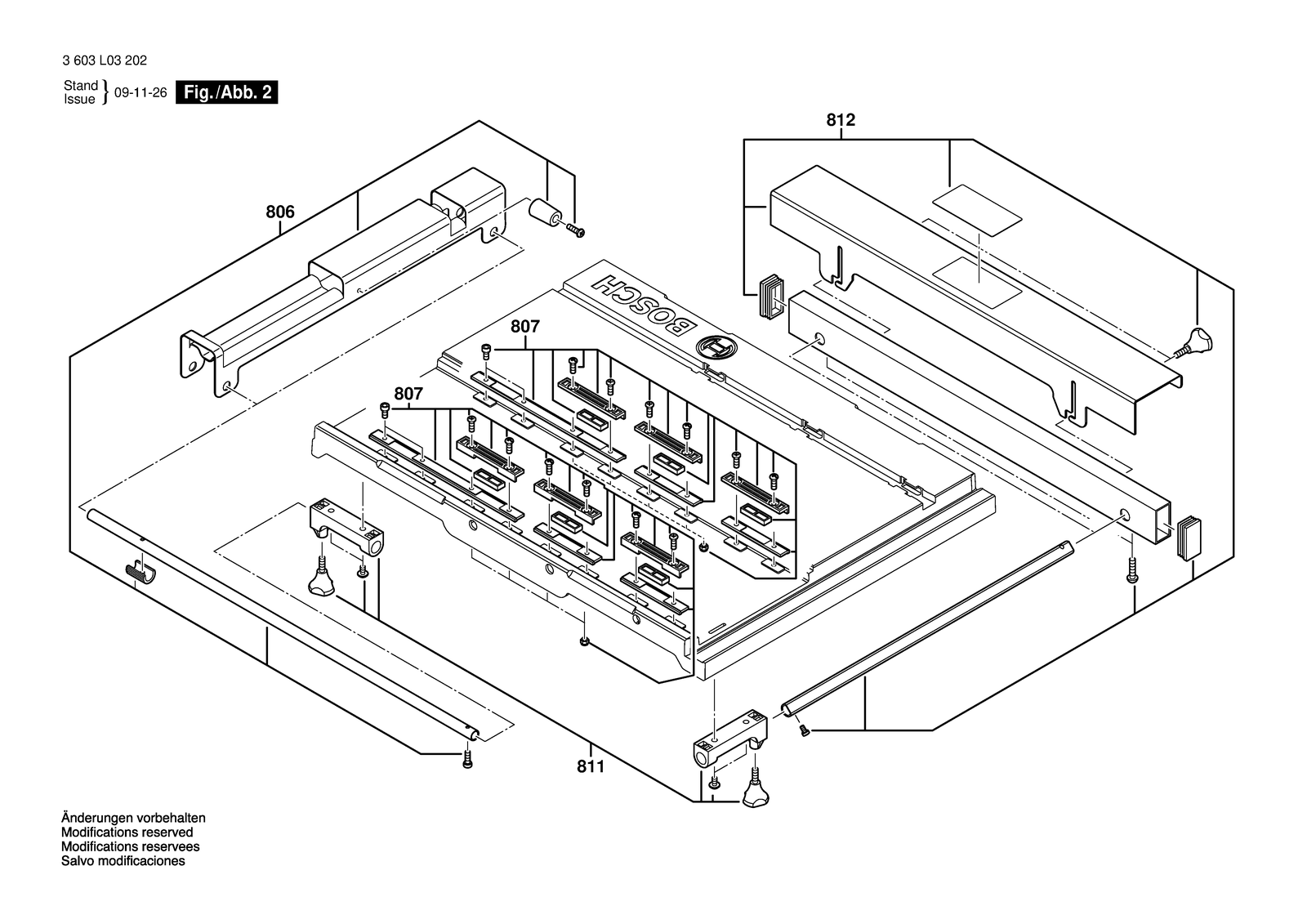

Bosch PTS 10 parts list (5 sheets)
| No. | Part number | Part name |
|---|---|---|
| 650 | 1609203P64 | Base |
| 650/865 | 1609203P87 | Rubber Base |
| 650/866 | 1609203P88 | Fastening parts kit |
| 650/867 | 1609203P89 | Profile Strut |
| 650/868 | 1609203P90 | Profile Strut |
| 650/869 | 1609203P91 | Profile Strut |
| 650/870 | 1609203P92 | Profile Strut |
| 650/871 | 1609203P93 | Profile Strut |
| 651 | 1600A000B3 | Key |
| 652 | 1609203P85 | Pusher |
| 801 | 1609203X57 | Edge Guide |
| 802 | 1609203S51 | Mitre Gauge |
| 803 | 1600A000B4 | Protective Cover |
| 804 | 1609203X58 | Edge Guide |
| 805 | 1609203P33 | Insert |
| 806 | 1609203P34 | Support |
| 807 | 1609203P35 | Sliding Guide |
| 808 | 1609203P36 | Lever |
| 809 | 1609203P37 | Ball Rail Table |
| 811 | 1609203P39 | Sliding Guide |
| 812 | 1609203P40 | Support |
| 813 | 1609203X59 | Table |
| 814 | 1609203P42 | Rubber Base |
| 815 | 1609203P43 | Cable Cleat |
| 816 | 1609203P44 | Mounting Clamp |
| 817 | 1609203P45 | Fastening Part |
| 818 | 1609203P46 | Connection Piece |
| 819 | 1600A000BK | Power supply cord |
| 819 | 1600A000BL | Power supply cord |
| 820 | 1609203P50 | Switch |
| 822 | 1600A000C2 | Cable Set |
| 823 | 1600A000C0 | Housing |
| 824 | 1609203P54 | Clamp Screw |
| 825 | 1609203P55 | Vertical Adjustment |
| 826 | 1609203P56 | Pointer |
| 827 | 1600A000B5 | Cover Plate |
| 828 | 1609203P58 | Swivel Bearing |
| 829 | 1609203P59 | Carrier |
| 830 | 1609203P60 | Fastening parts kit |
| 832 | 1609203P62 | Locking Device |
| 833 | 1609203P63 | Toolholder |
| 834 | 1609203P79 | Swivelling Axis |
| 835 | 1609203P80 | Shaft |
| 836 | 1609203P81 | Suction Pipe |
| 837 | 1609203X61 | Switch Housing |
| 838 | 1601118T02 | Nameplate |
| 838 | 1601118T03 | Nameplate |
| 839 | 1600A000B6 | Piston Assembly Group |
| 840 | 1600A000C1 | Un. Flange-Mtd. Motor |
| 840/841 | 1609203P69 | Armature 230V |
| 840/842 | 1609203P71 | Bearing |
| 840/843 | 1600A000C3 | Field 230V |
| 840/844 | 1609203P73 | Motor Housing |
| 840/845 | 1609203P74 | Carbon-Brush Set |
| 840/846 | 1609203P75 | Gear Housing |
| 840/847 | 1609203P76 | Output Shaft |
| 841 | 1609203X64 | Soft Start-Up Module |
| 850 | 1609203P38 | Edge Guide |
| 851 | 1609203S53 | Edge Guide |
| 898 | 1615430005 | Grease Tube 45 Ml |
