Bosch PTL 1 wallpaper stripper: exploded parts diagram, 1 sheet, 30 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PTL 1: 30 positions on 1 sheet

Bosch PTL 1 parts list (1 sheet)

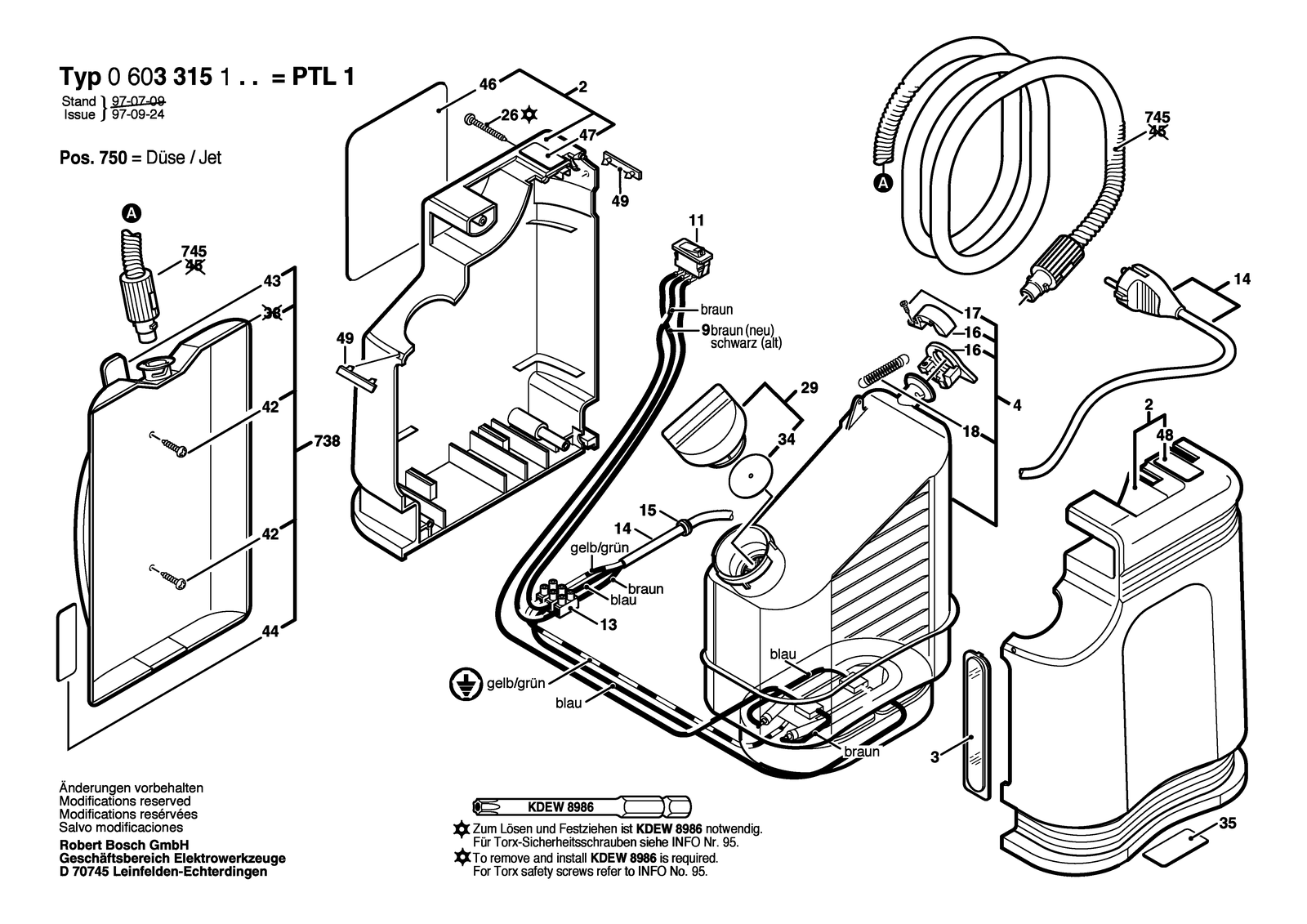

Bosch PTL 1 parts diagram, sheet 1
No.Part numberPart name
111609203340Tip Switch
131901091013Socket-Terminal Strip 3X6 MM
141609203341Power supply cord
141609203348Power supply cord
141609203488Power supply cord
151609203342Grommet
161609203785Blocking Bush
171609203786Oval-Head Screw
181609203787Extension Spring
21609203781Housing Section
261609203351Torx Oval-Head Screw Ø 4X40 MM
291609203343RSV Cap
31609203336Sight Glass
341609203339Seal
351601118784Nameplate
351601118785Nameplate
351601118786Nameplate
351601118813Nameplate
41609203782Plastic Container
41609203784Plastic Container
421609203352Oval-Head Screw Ø 4X16 MM
431609203470Handle
441601118513Reference Plate
461601118514Reference Plate
471601118516Reference Plate
481601118515Reference Plate
491609203477Pickup Clip
7382609390282Steam Distributor
7452609390283Hose L= 3,5 M
91609203924Connecting Cable Black
