Bosch PTK 3,6 V

Bosch PTK 3,6 V tacker: exploded parts diagram, 1 sheet, 11 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PTK 3,6 V: 11 positions on 1 sheet

Bosch PTK 3,6 V parts list (1 sheet)

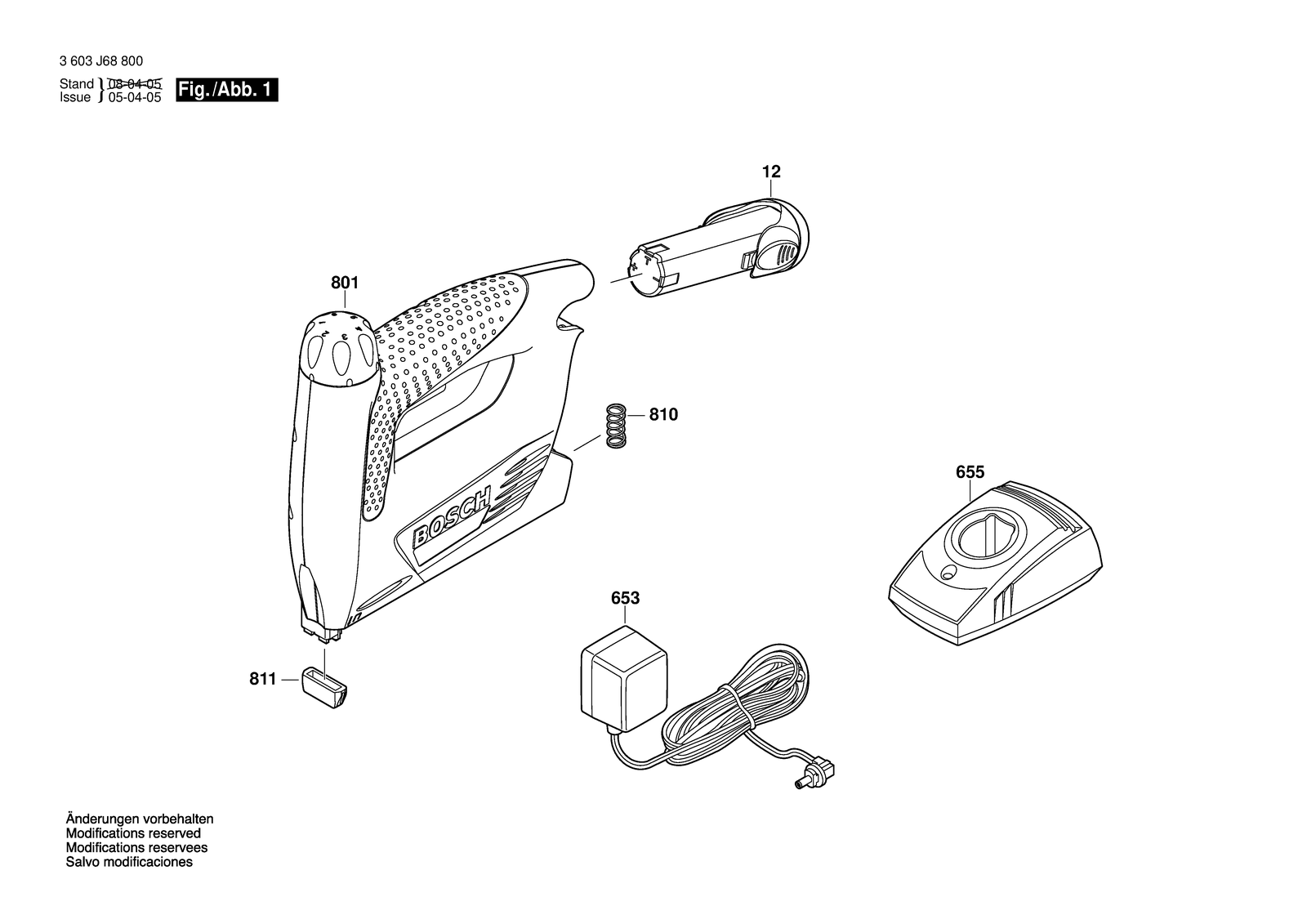

Bosch PTK 3,6 V parts diagram, sheet 1
No.Part numberPart name
121609203P68Accumulator package
121609203S27Accumulator package
6532607224789Fast Charger Weu/oeu 230/3,6V
6532607224791Fast Charger GB 230/3,6V
6532607225173Fast Charger AUS 240V/3,6V
6532607225211Fast Charger J 100/3,6V
6551609203L94Charging Station
8011609203R01Tacker PTK 3,6V
8011609203R89Tacker PTK 3,6V
8101609203P66Spring
8111609203P67Cover
