Bosch PTK 28 E

Bosch PTK 28 E tacker: exploded parts diagram, 1 sheet, 31 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PTK 28 E: 31 positions on 1 sheet

Bosch PTK 28 E parts list (1 sheet)

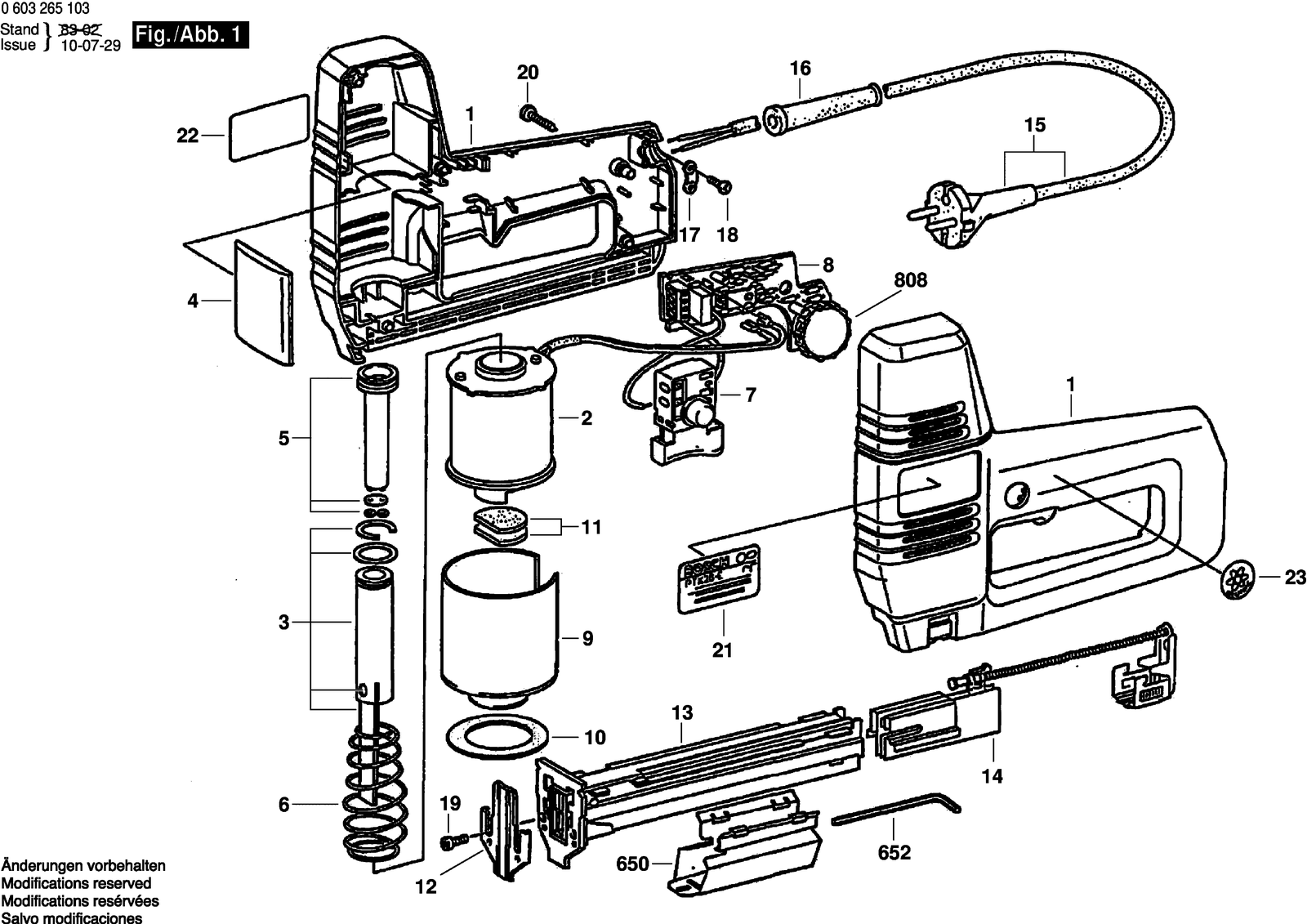

Bosch PTK 28 E parts diagram, sheet 1
No.Part numberPart name
11609201406Motor Housing
101609201415Rubber Ring
111609201410Shock Absorber
121609201566Front Panel
131609201412Tacker Feeder
141609201413Slide Frame
151604460015Power supply cord CH 4,15M 2 X 1,0MM H05 Vv-F
151607000389Power supply cord
161600703016Grommet Ø6,4-Ø7,5X75 MM
171609202592Cable Clip
181609201263Tapping Screw
192910141122Hex Socket Head Cap Screw DIN 912-M 4X12-8.8
21609201407Solenoid
202910211028Tapping Screw DIN 7971 BZ4,2X22
211601110288Nameplate
211601110290Nameplate
211601110291Nameplate
211601110292Nameplate
221601110289Sticker
232601110581Sticker
31609201408Tappet
41609201383Counterweight
51609201409Shock Absorber
61609201411Compression Spring
6501609201238Tab Washer
6521907950004Offset Screwdriver DIN 911, SW3
71609201260On-Off Switch
81609201509Electronic Board
81609203657Electronic Board
8081609203658Thumbwheel
91609201414Holding Plate
