Bosch PTK 14 E

Bosch PTK 14 E tacker: exploded parts diagram, 1 sheet, 48 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PTK 14 E: 48 positions on 1 sheet

Bosch PTK 14 E parts list (1 sheet)

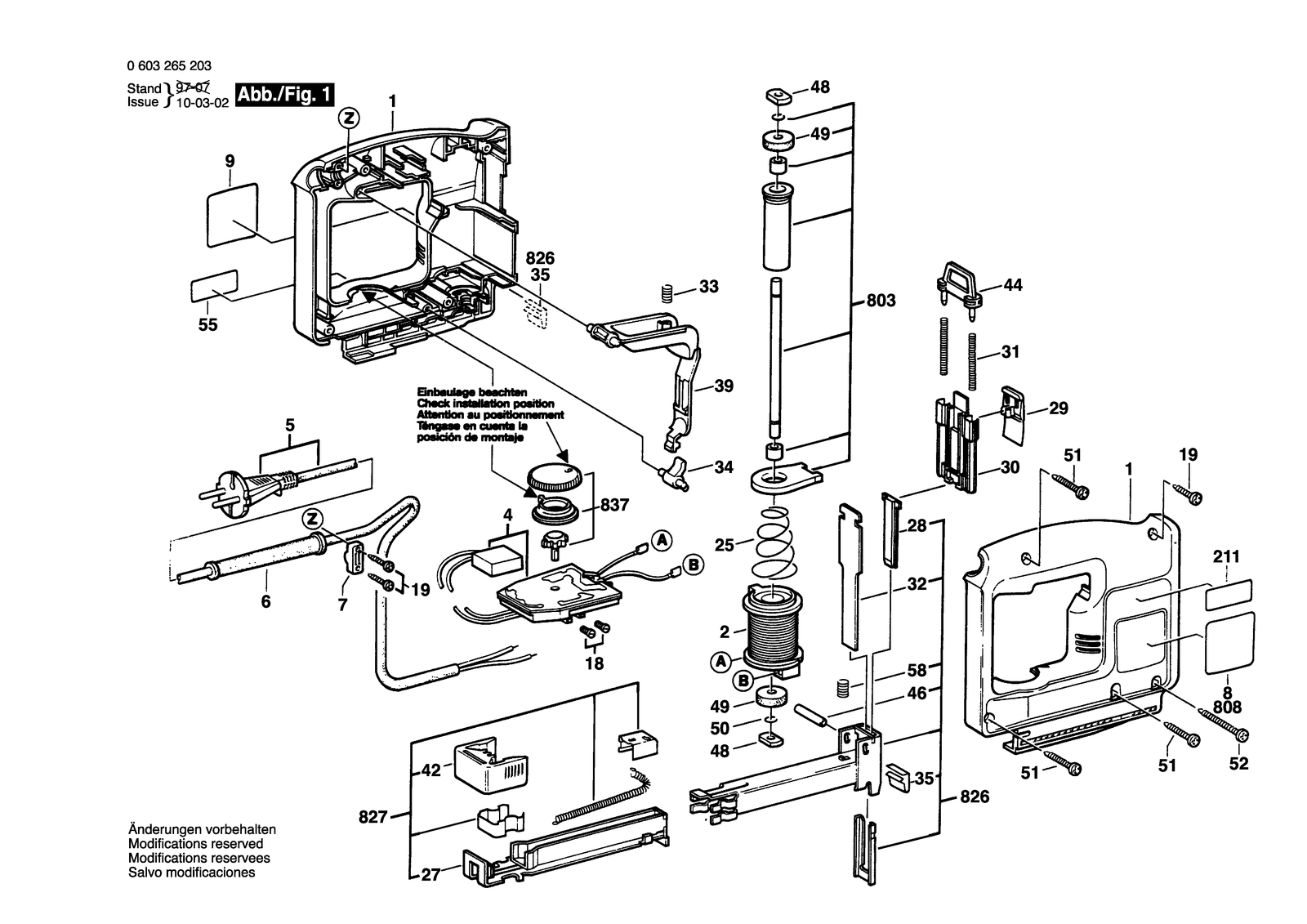

Bosch PTK 14 E parts diagram, sheet 1
No.Part numberPart name
12605104290Housing Section Green
182603410002Socket head cap screw
192912401019Tapping Screw DIN7981-ST3,9X16-C-Z
22604230001Solenoid
2111601110265Reference Plate
252604643001Compression Spring
272601389000Tacker feeder bottom half
282601020010Striker Bar
292602388008Slide Button
302602388009Adjusting Slide
312604610025Compression Spring
322601098009Tappet
332604611013Compression Spring
342602053001Pressure Lever
352601329009Shaped Spring
392608005020Trigger Handle
42607233052Electronic Board 220-240V
422605510024Ratchet Cap
442608005021Crossbeam
462600300021Stop Bushing
482600190039Supporting Disc
492600109001Stop Disc
51604460124Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F
51604460431Power supply cord
51607000388Power supply cord EU 2,65M 2 X 1,0MM H05 Rn-F
52604460114Power supply cord AUS 2,6M 2 X 0,75MM Pvc
52604460282Power supply cord I / BR 2,65M 2 X 1,0MM H05 Vv-F
502916540003Retaining ring
512912401021Tapping Screw DIN7981-ST3,9X22-C-Z
522603429001Tapping Screw 3,9X38-C-H-DIN 7981
551601118992Sticker
581604626006Compression Spring
62600703012Grommet Ø6,5-Ø6,9X95 MM
62600703013Grommet Ø7,6-Ø8,2X95 MM
71611035005Cable Clip
72601035001Cable Clip
8032604240001Solenoid armature
8081601118963Nameplate
8081601118K87Nameplate
8081601118K88Nameplate
8081601118K89Nameplate
8081601118K90Nameplate
8082601110567Nameplate
8082601119115Nameplate
8262601329900Tacker feeder top half
8272601389900Tacker feeder bottom half
8372600021900Rotary Handle
91601118820Reference Plate
