Bosch PTC 640

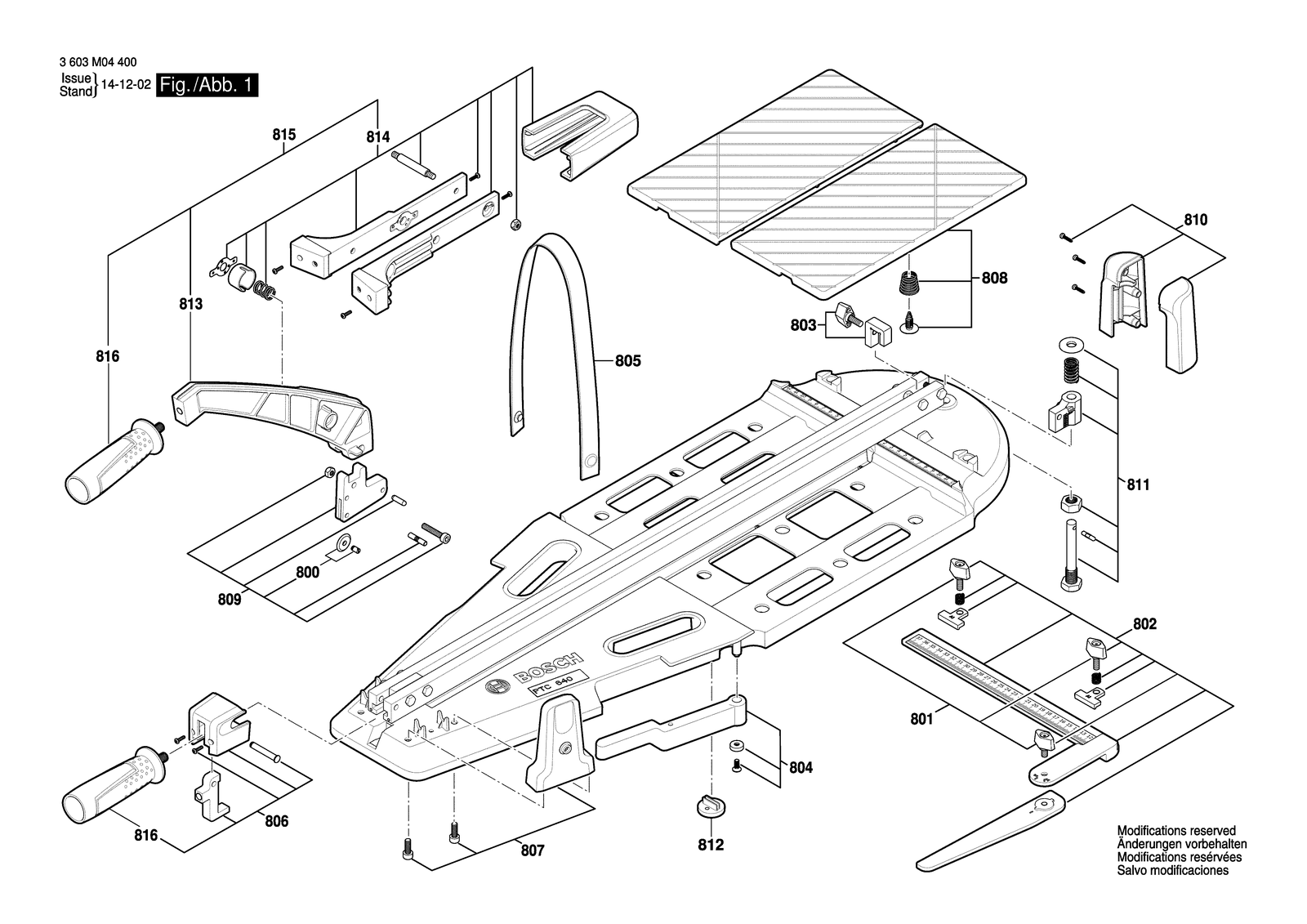

Bosch PTC 640 tile cutter: exploded parts diagram, 1 sheet, 17 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PTC 640: 17 positions on 1 sheet
Bosch PTC 640 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 800 | 1600A0088L | Cutting Unit |
| 801 | 1600A0088M | Knob |
| 802 | 1600A0088P | Rule |
| 803 | 1600A0088R | End stop |
| 804 | 1600A0088S | Linkage |
| 805 | 1600A0088T | Belt |
| 806 | 1600A0088U | Hook |
| 807 | 1600A0088V | End stop |
| 808 | 1600A0088W | Support Plate |
| 809 | 1600A0088Y | Holder |
| 810 | 1600A0088Z | Cover |
| 811 | 1600A00890 | Hinge |
| 812 | 1600A00891 | Rubber Base |
| 813 | 1600A00892 | Lever Arm |
| 814 | 1600A00893 | Lever Arm |
| 815 | 1600A00894 | Lever |
| 816 | 1600A00895 | Handle |
