Bosch PTA 1000

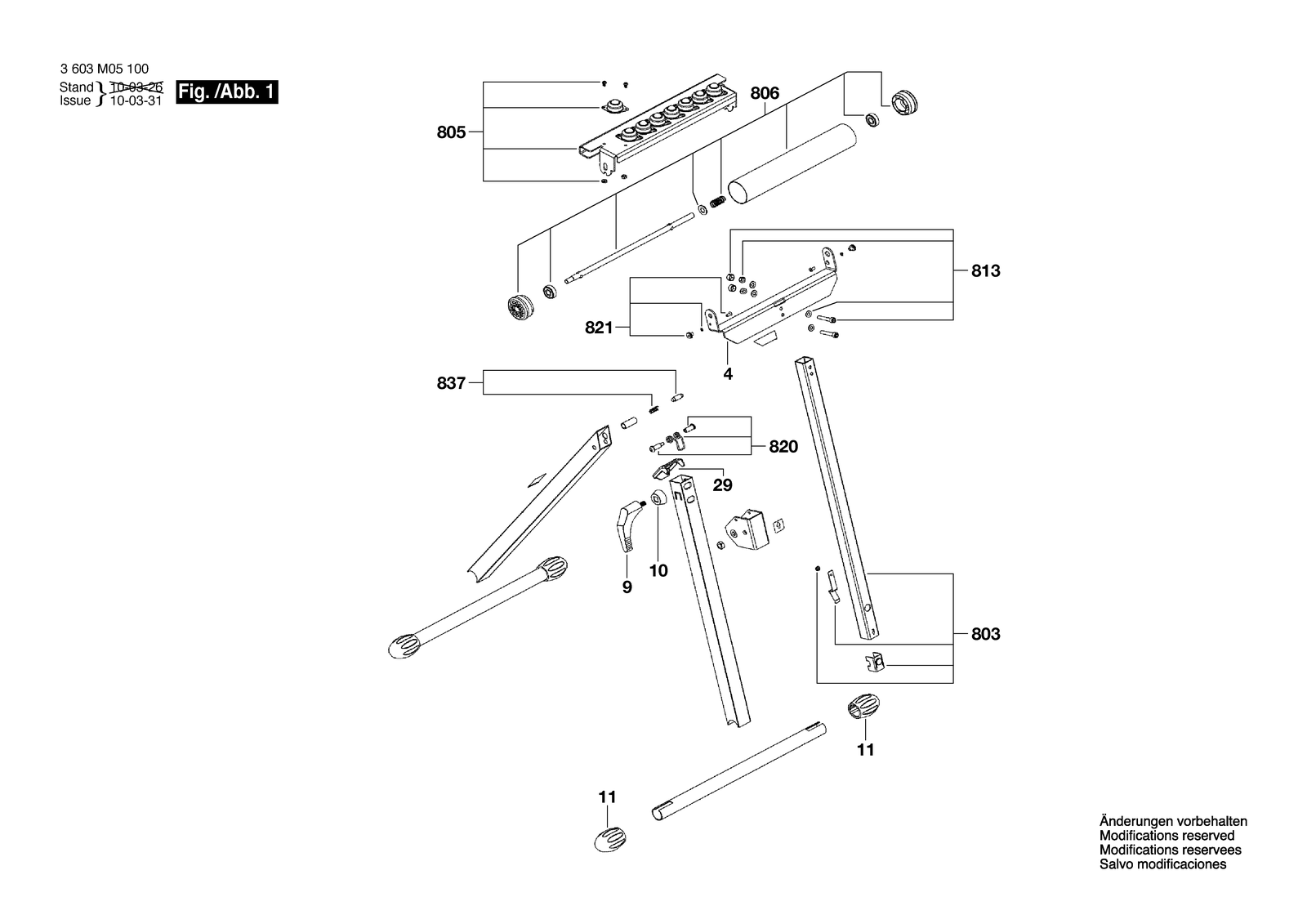

Bosch PTA 1000 work table: exploded parts diagram, 1 sheet, 12 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PTA 1000: 12 positions on 1 sheet
Bosch PTA 1000 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 10 | 1619PA0565 | Protective Cap |
| 11 | 1619PA0566 | Rubber Base |
| 29 | 1619PA0582 | Protective Cap |
| 4 | 1619PA0559 | Bracket |
| 803 | 1619PA0617 | Mounting Kit |
| 805 | 1619PA0611 | Assembly Kit |
| 806 | 1619PA0612 | Roller |
| 813 | 1619PA0613 | Bolt |
| 820 | 1619PA0616 | Fastening parts kit |
| 821 | 1619PA0614 | Nut |
| 837 | 1619PA0615 | Locking Pin |
| 9 | 1619PA0564 | Rotary Handle |
