Bosch PTA 1

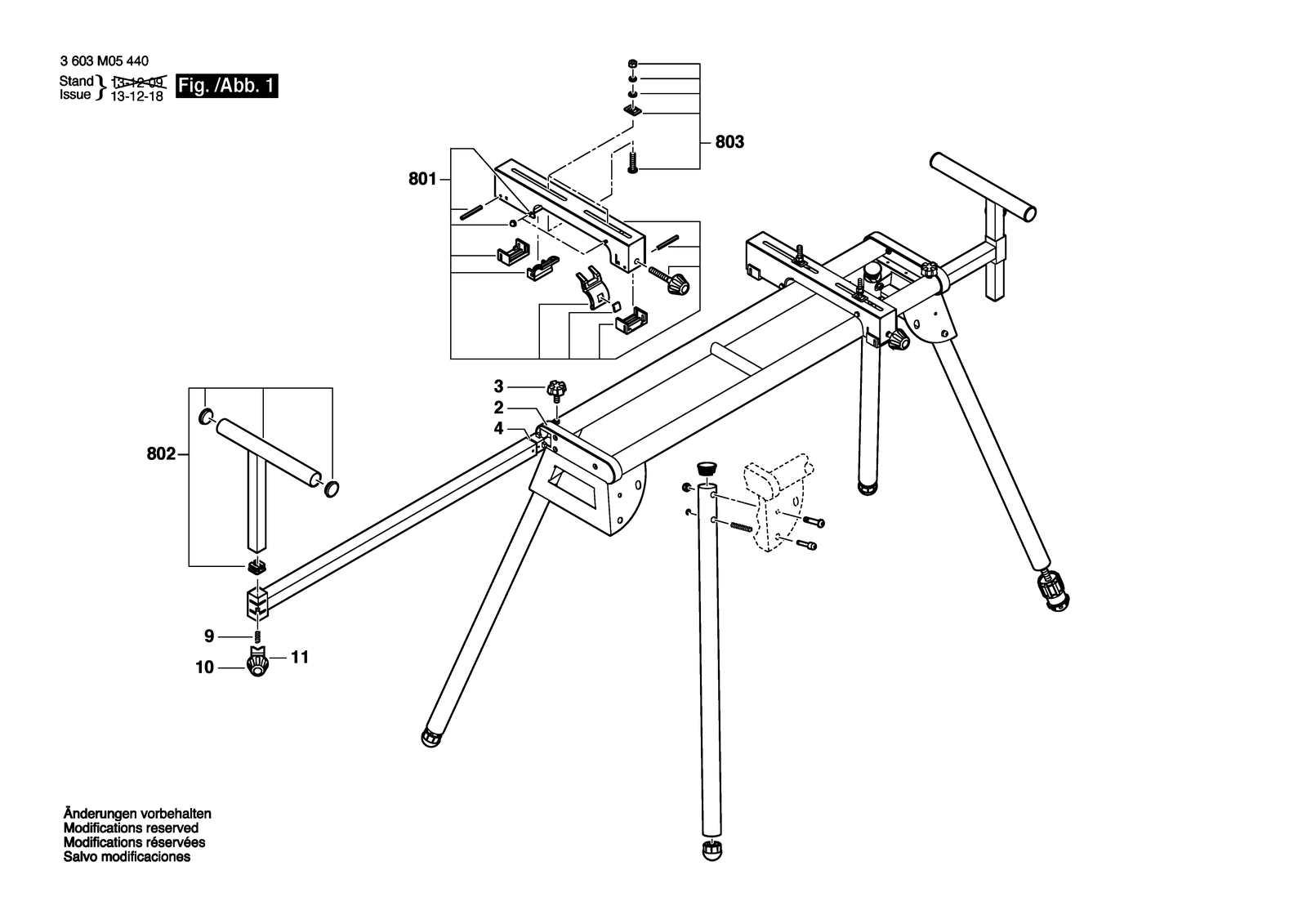

Bosch PTA 1 table: exploded parts diagram, 1 sheet, 9 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PTA 1: 9 positions on 1 sheet
Bosch PTA 1 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 10 | 1619PA6616 | Clamp |
| 11 | 1619PA6617 | Knob |
| 2 | 1619PA6608 | Cover |
| 3 | 1619PA6609 | Knob |
| 4 | 1619PA6610 | Block |
| 801 | 1619PA6645 | Mounting Device |
| 802 | 1619PA6646 | Support |
| 803 | 1619PA6647 | Fastening parts kit |
| 9 | 1619PA6615 | Spring |
