Bosch PST Universal

Bosch PST Universal jig saw: exploded parts diagram, 1 sheet, 39 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PST Universal: 39 positions on 1 sheet

Bosch PST Universal parts list (1 sheet)

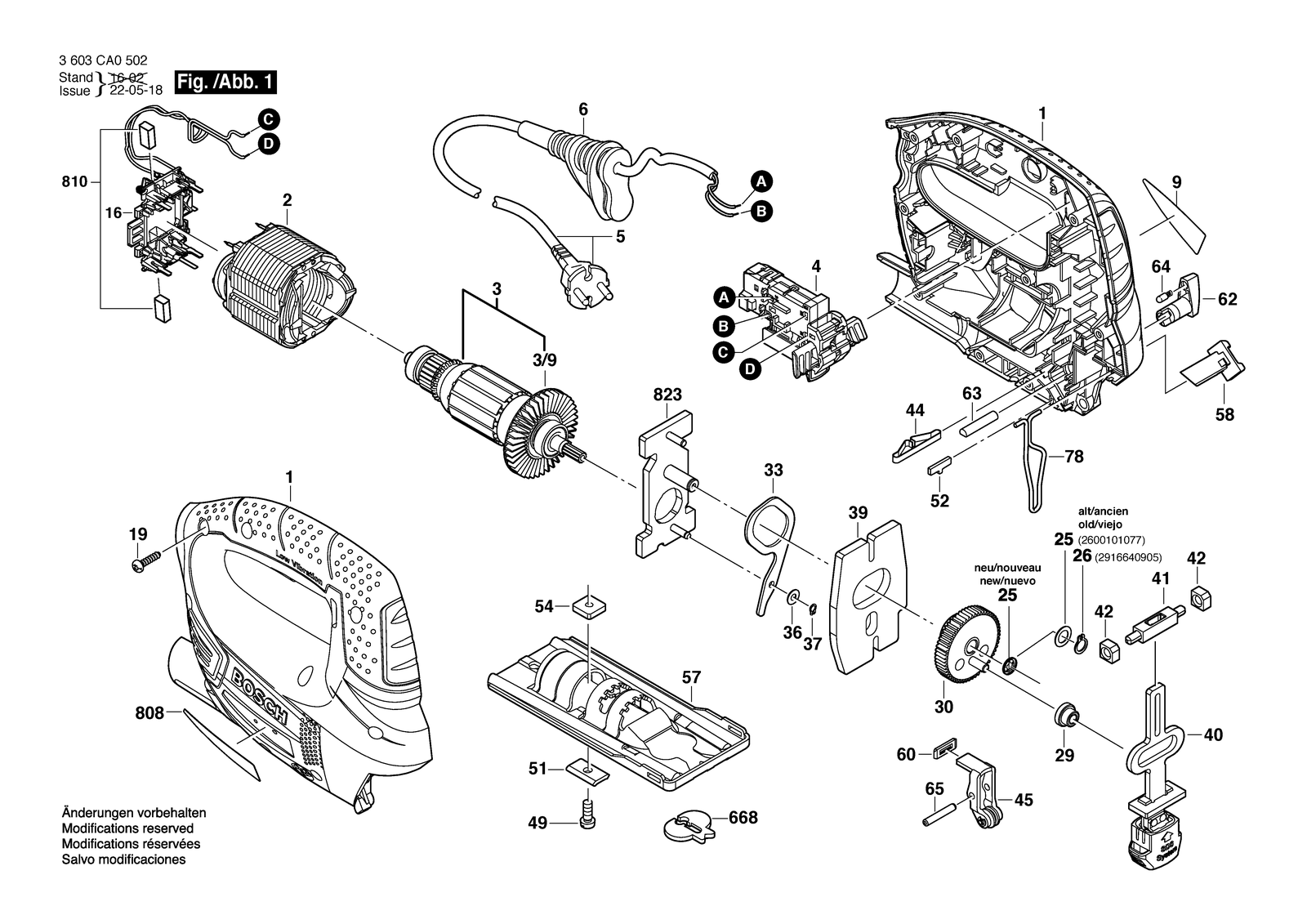

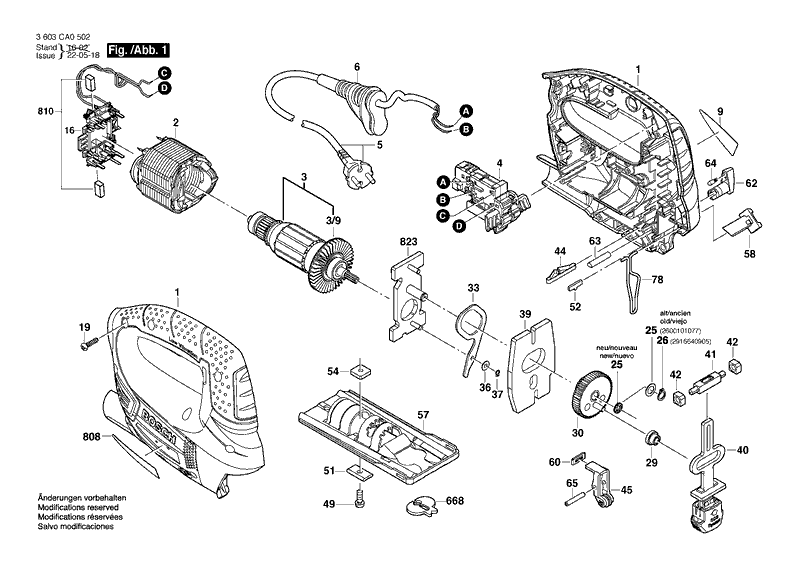

Bosch PST Universal parts diagram, sheet 1
No.Part numberPart name
12609003432Housing Green
162609006437Brush Holder
192603490022Screw 4X16
22609007838Field
251600A023S8Retaining Washer
292600914022Needle bearing
32609003433Armature 220-240V
3/92609002159Fan
302609003655Eccentric Cog Wheel
332609003444Fork Lever
362600100588Shim 0,5 MM
372916640001Spring retaining ring DIN 471-4X0,4-FST
392609003452Counterweight
41607200239Switch
402609003490Lifting Rod
412609003638Plain bearing
422609003450Insert
442604613004Compression Spring
452609001608Roller Lever
492603413034Socket head cap screw
52604460260Power supply cord EU 2,7M 2 X 0,75MM H05 Vv-F
512602317052Profile Beading
522601030166Adjusting Pin
542600040003Fixing plate
572609004368Base Plate
582609003448Switch Slide Red
62609003080Grommet Ø6,4-Ø7,2X76 MM
602601015077Sealing Plate
622609003447Change-Over Switch
632609003508Control Shaft
642600590006Ratchet Cap
652609002725Straight Pin
6682601016065Splintering Protector
782609003350Protecting Cover Black
808160111A2K3Nameplate
8102610391290Carbon-Brush Set
8232609004583Bearing Bracket
9161111C04BManufacturer's nameplate Pst Universal
92609004934Manufacturer's nameplate PST 750 Pe
