Bosch PST 750 PEL

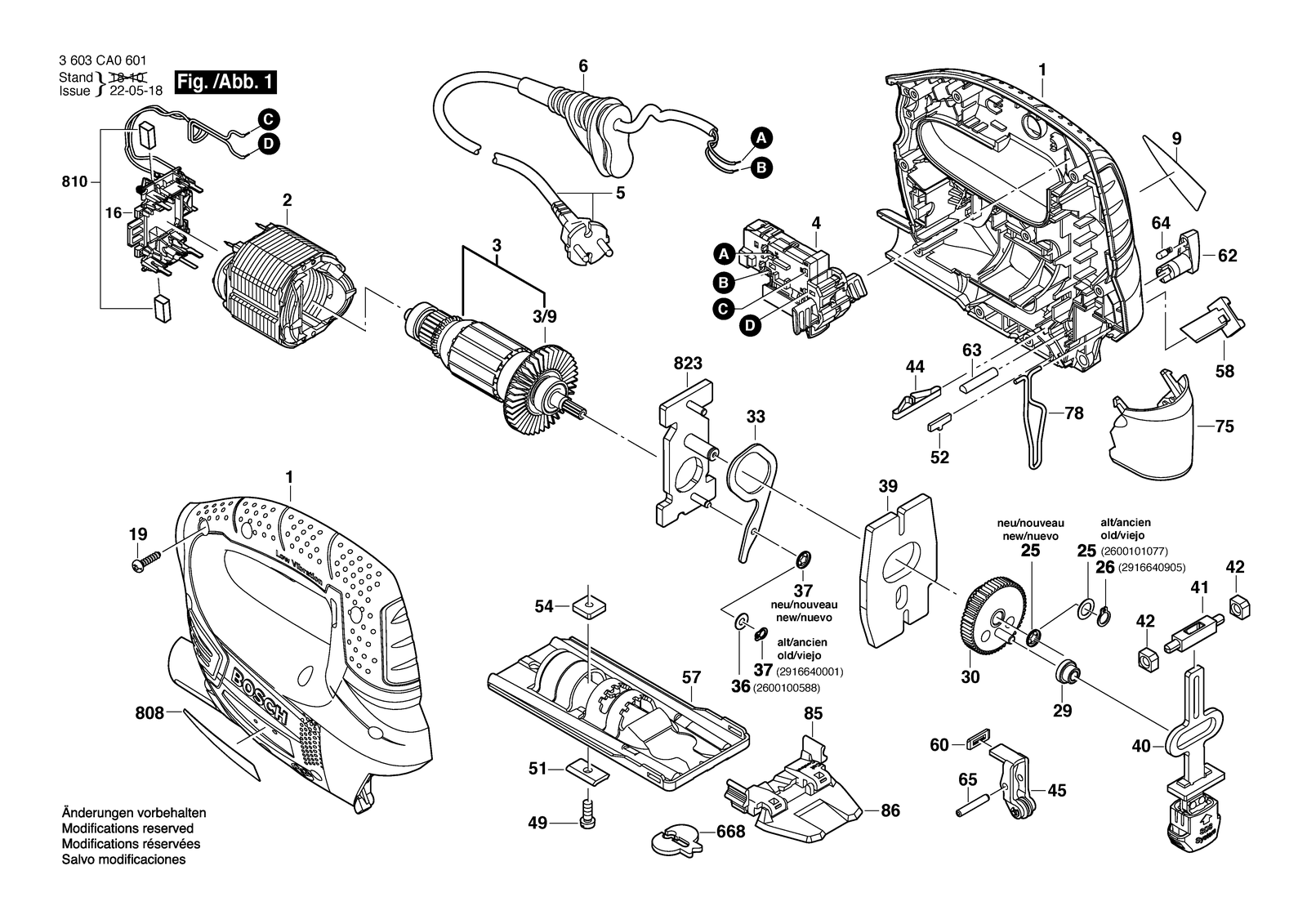

Bosch PST 750 PEL jig saw: exploded parts diagram, 1 sheet, 40 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PST 750 PEL: 40 positions on 1 sheet
Bosch PST 750 PEL parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2609003432 | Housing Green |
| 16 | 2609006437 | Brush Holder |
| 19 | 2603490022 | Screw 4X16 |
| 2 | 2609007838 | Field |
| 25 | 1600A023S8 | Retaining Washer |
| 29 | 2600914022 | Needle bearing |
| 3 | 2609003433 | Armature 220-240V |
| 3/9 | 2609002159 | Fan |
| 30 | 2609003655 | Eccentric Cog Wheel |
| 33 | 2609003444 | Fork Lever |
| 37 | 1600A008C6 | Retaining Washer |
| 39 | 2609003452 | Counterweight |
| 4 | 1607200239 | Switch |
| 40 | 2609003490 | Lifting Rod |
| 41 | 2609003638 | Plain bearing |
| 42 | 2609003450 | Insert |
| 44 | 2604613004 | Compression Spring |
| 45 | 2609001608 | Roller Lever |
| 49 | 2603413034 | Socket head cap screw |
| 5 | 2604460260 | Power supply cord EU 2,7M 2 X 0,75MM H05 Vv-F |
| 51 | 2602317052 | Profile Beading |
| 52 | 2601030166 | Adjusting Pin |
| 54 | 2600040003 | Fixing plate |
| 57 | 2609004368 | Base Plate |
| 58 | 2609003448 | Switch Slide Red |
| 6 | 2609003080 | Grommet Ø6,4-Ø7,2X76 MM |
| 60 | 2601015077 | Sealing Plate |
| 62 | 2609003447 | Change-Over Switch |
| 63 | 2609003508 | Control Shaft |
| 64 | 2600590006 | Ratchet Cap |
| 65 | 2609002725 | Straight Pin |
| 668 | 2601016065 | Splintering Protector |
| 75 | 2609003453 | Covering hood |
| 78 | 2609003350 | Protecting Cover Black |
| 808 | 160111A2K5 | Nameplate |
| 810 | 2610391290 | Carbon-Brush Set |
| 823 | 2609004583 | Bearing Bracket |
| 85 | 2609003509 | Support |
| 86 | 2609003510 | Window |
| 9 | 2609005060 | Manufacturer's nameplate PST 750 Pel |
