Bosch PST 750 PE

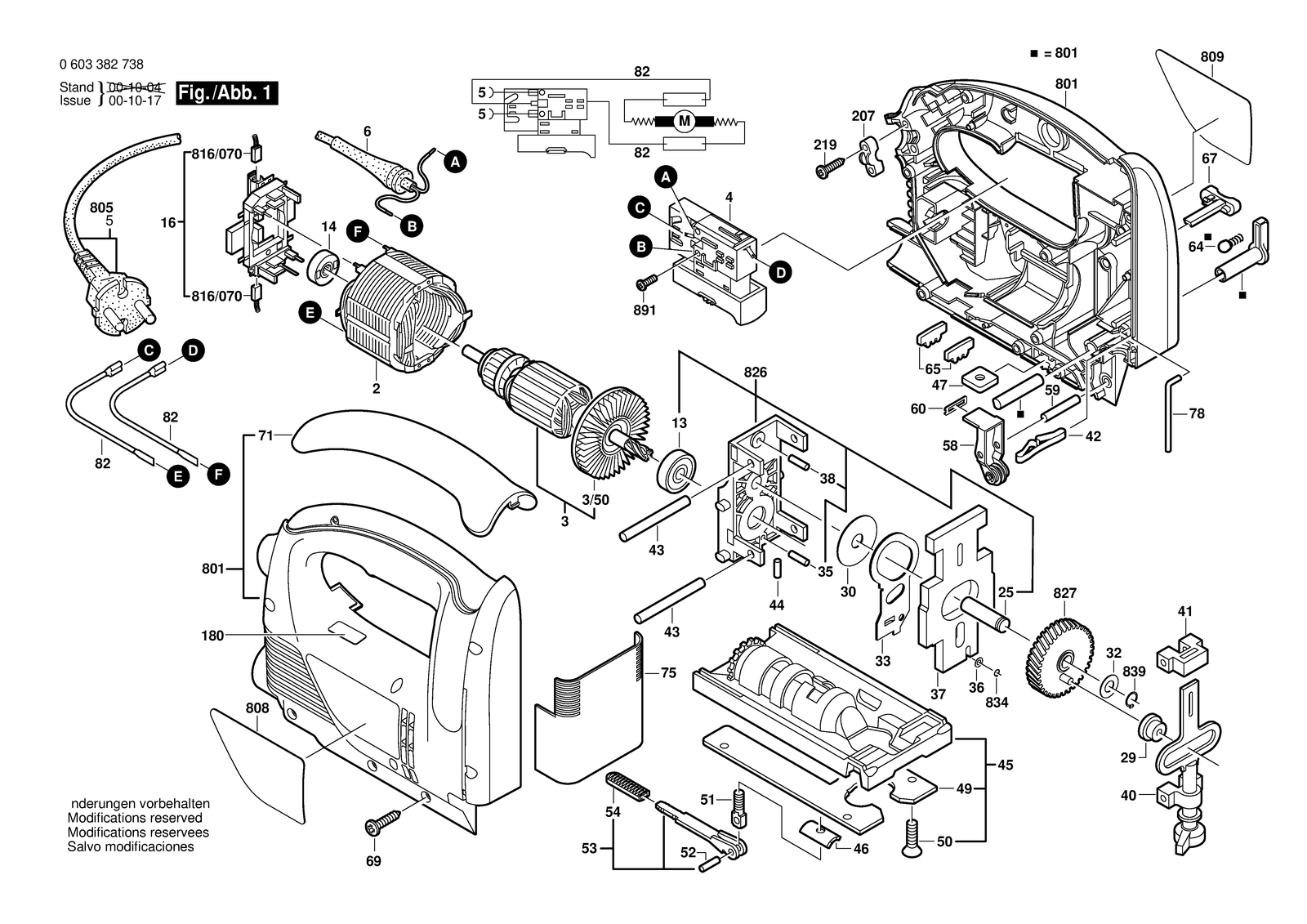

Bosch PST 750 PE jig saw: exploded parts diagram, 1 sheet, 56 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PST 750 PE: 56 positions on 1 sheet
Bosch PST 750 PE parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 13 | 2600905021 | Groove ball bearing 9X24X7 |
| 14 | 2605805008 | Flanged Bearing |
| 16 | 2604337087 | Brush Plate |
| 180 | 3601119137 | Warning Plate Caution |
| 2 | 2604220660 | Field 100-120V |
| 207 | 1611035005 | Cable Clip |
| 219 | 2603490022 | Screw 4X16 |
| 25 | 2603105080 | Bearing bolt |
| 29 | 2600914022 | Needle bearing |
| 3 | 2604011236 | Armature 100V |
| 3/50 | 2606610029 | Fan |
| 30 | 2600101048 | Shim 0,5 MM |
| 32 | 2600101077 | Shim 0,5 MM |
| 33 | 2601923012 | Fork Lever |
| 35 | 2603105091 | Bearing bolt |
| 36 | 2600100588 | Shim 0,5 MM |
| 37 | 2601098060 | Counterweight |
| 38 | 1903201054 | Needle Roller 4X15,8 MM |
| 4 | 2607200583 | On-Off Switch |
| 40 | 2600780147 | Lifting Rod |
| 41 | 2605801038 | Plain bearing |
| 42 | 2604613004 | Compression Spring |
| 43 | 2603201089 | Needle Roller |
| 44 | 2603105084 | Bearing bolt |
| 45 | 2601098081 | Base Plate |
| 46 | 2602317037 | Profile Beading |
| 47 | 2600040003 | Fixing plate |
| 49 | 2601098050 | Base Plate |
| 5 | 2604460095 | Power supply cord J 2,5M 2 X 0,75MM Pvc |
| 50 | 2603421014 | Thread-forming tap. Screw |
| 51 | 2603349011 | Threaded Fitting |
| 52 | 2917850094 | Straight Pin 4M 6X10 N31A |
| 53 | 2602098016 | Tensioning Lever |
| 54 | 2600591013 | Cap-Handle |
| 58 | 2601321051 | Roller Lever |
| 59 | 2609002725 | Straight Pin |
| 6 | 2600703019 | Grommet Ø8,7-Ø9,6X76 MM |
| 60 | 2601015077 | Sealing Plate |
| 64 | 2600590006 | Ratchet Cap |
| 65 | 2601038111 | Locking element |
| 67 | 2602026096 | Switch Slide |
| 69 | 2603490022 | Screw 4X16 |
| 71 | 2608040148 | Handle Cover |
| 75 | 2605510169 | Covering hood |
| 78 | 2603105088 | Locking pin |
| 801 | 2605105929 | Housing Section Blue |
| 805 | 1607000386 | Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 808 | 2601117579 | Reference Plate |
| 809 | 2601117811 | Manufacturer's nameplate |
| 816/070 | 2604321914 | Carbon-Brush Set |
| 82 | 2604448127 | Connecting Cable White L=220 MM |
| 826 | 2605807936 | Bearing Bracket |
| 827 | 2606320904 | Eccentric Cog Wheel |
| 834 | 2916640001 | Spring retaining ring DIN 471-4X0,4-FST |
| 839 | 2916640005 | Spring retaining ring DIN 471-8X0,8 Fst |
| 891 | 2603410046 | Cross Recessed-Head Screw M3X5 |
