Bosch PST 700 PEL

Bosch PST 700 PEL jig saw: exploded parts diagram, 1 sheet, 50 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PST 700 PEL: 50 positions on 1 sheet

Bosch PST 700 PEL parts list (1 sheet)

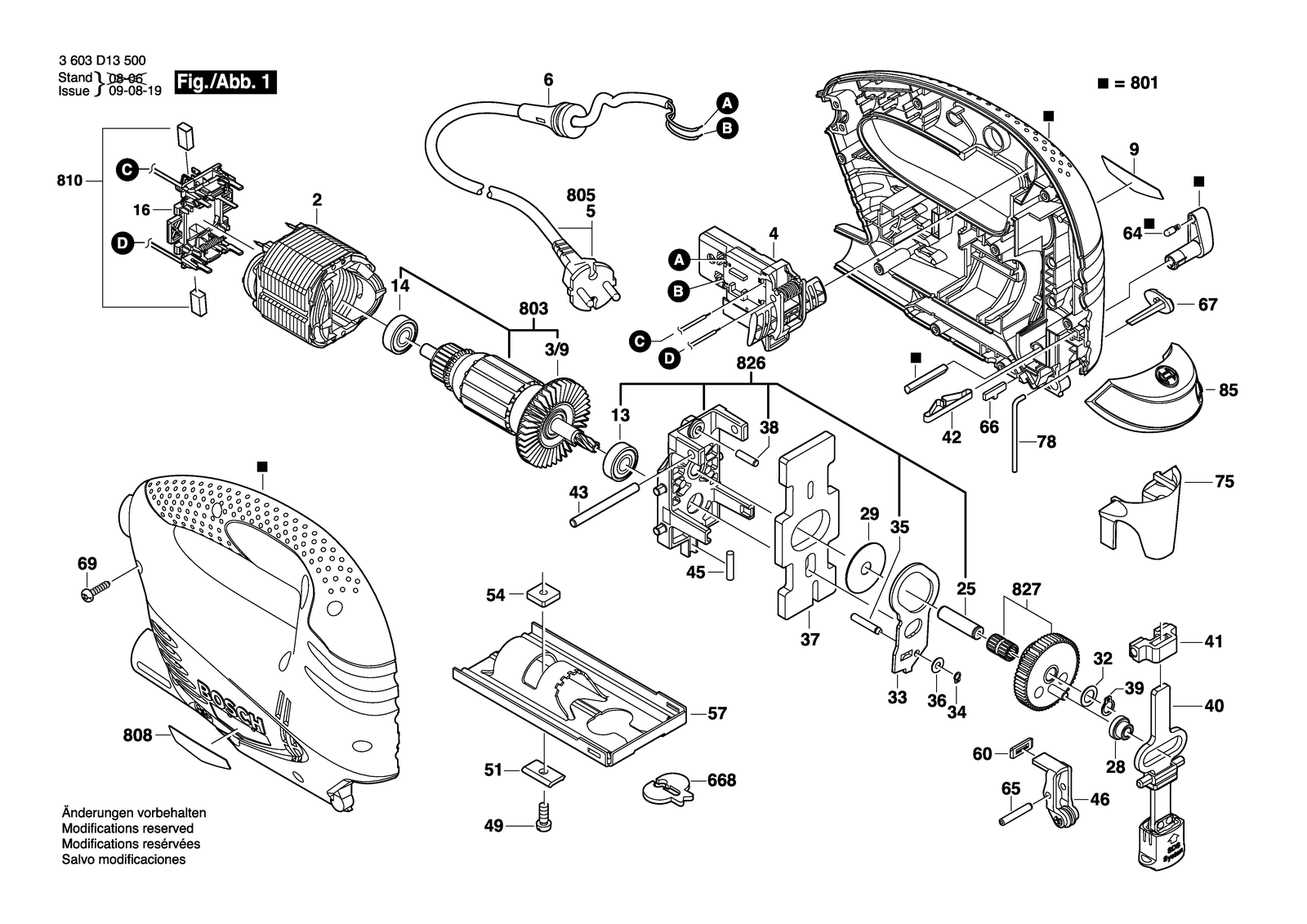

Bosch PST 700 PEL parts diagram, sheet 1
No.Part numberPart name
133130900020Groove ball bearing 8X22X7 608-2Z/C3
142609000639Groove ball bearing 8X22X7 608-2Z/C5
162609005742Brush Plate
22609007838Field
252609002622Bearing bolt
282609002267Plain bearing
292600101048Shim 0,5 MM
3/92609002159Fan
322600101077Shim 0,5 MM
332601923012Fork Lever
342916640001Spring retaining ring DIN 471-4X0,4-FST
352603105091Bearing bolt
362600100588Shim 0,5 MM
372609002263Counterweight
381903201054Needle Roller 4X15,8 MM
392916640905Spring retaining ring 8X0,8 N31A MR7
42609002397Switch
402609002410Lifting Rod
412609002268Plain bearing
422604613004Compression Spring
432603201089Needle Roller
452609002270Bearing bolt
462609001608Roller Lever
492603413034Socket head cap screw
52604460243Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F
52604460259Power supply cord EU 230V 2,7M 2 X 0,75MM H05 Vv-F
52604460297Power supply cord AUS 240V 2,6M 2 X 0,75MM H05 Vv-F
512602317052Profile Beading
542600040003Fixing plate
572609002165Base Plate
62609002019Grommet
602601015077Sealing Plate
642600590006Ratchet Cap
652609002725Straight Pin
662601030166Adjusting Pin
6682601016065Splintering Protector
672602026153Switch Slide Red
692603490022Screw 4X16
752609002302Covering hood
782609002297Protecting Cover Black
8012609002494Housing Green
8032609002491Armature 230-240V
8082609002379Nameplate
8082609002380Nameplate
8082609002381Nameplate
8102610391290Carbon-Brush Set
8262609002492Bearing Bracket
8272609002493Eccentric Cog Wheel
852607010486Laser module
92609002374Manufacturer's nameplate PST 700 Pel
