Bosch PST 700 PE jig saw: exploded parts diagram, 1 sheet, 51 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PST 700 PE: 51 positions on 1 sheet

Bosch PST 700 PE parts list (1 sheet)

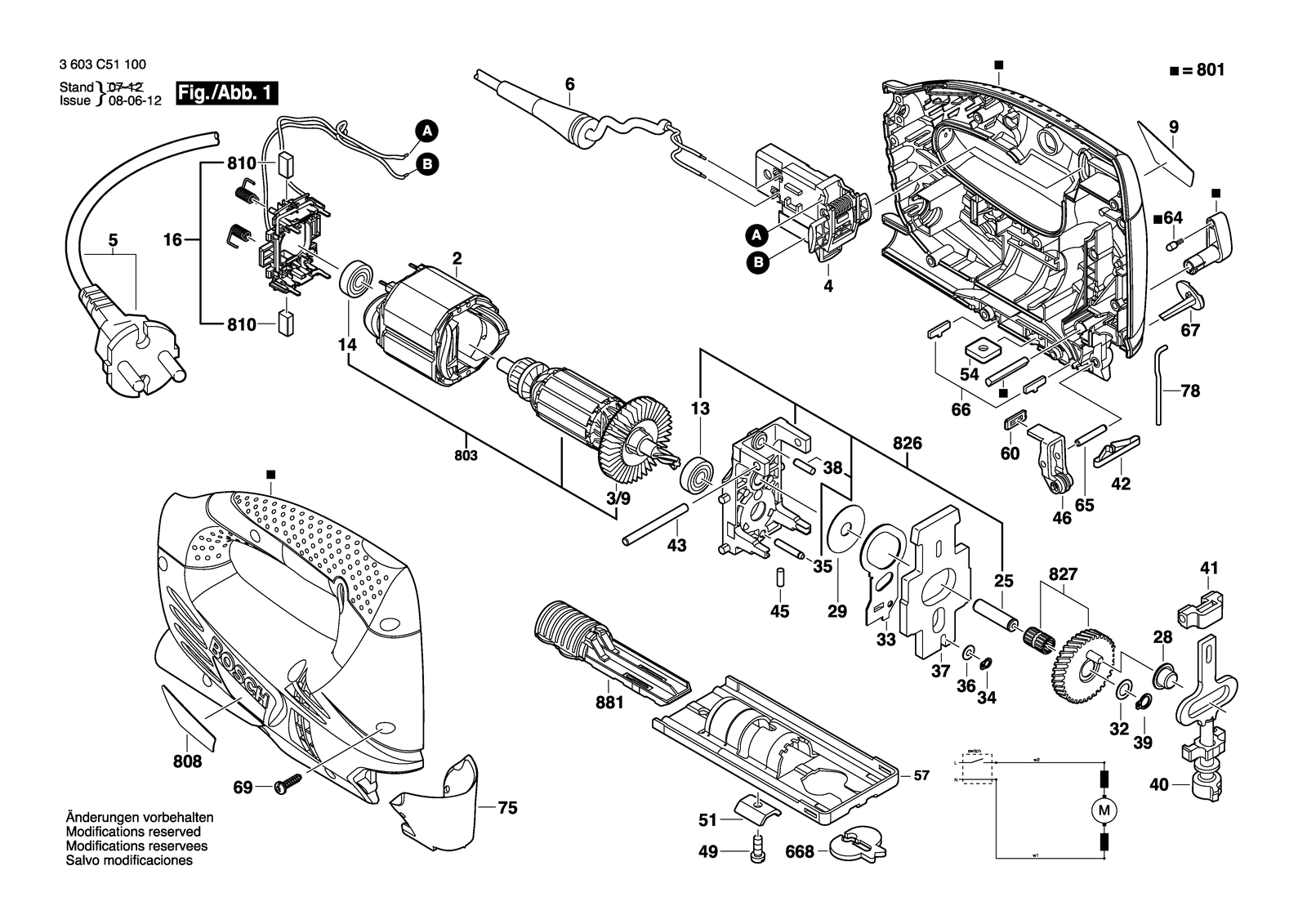

Bosch PST 700 PE parts diagram, sheet 1
No.Part numberPart name
133130900020Groove ball bearing 8X22X7 608-2Z/C3
143130900020Groove ball bearing 8X22X7 608-2Z/C3
162604337110Brush Plate
22604220682Field 230-240V
252603105080Bearing bolt
282600914022Needle bearing
292600101048Shim 0,5 MM
3/92606610123Fan
322600101077Shim 0,5 MM
332601923012Fork Lever
342916640001Spring retaining ring DIN 471-4X0,4-FST
352603105091Bearing bolt
362600100588Shim 0,5 MM
372601098098Counterweight
381903201055Needle Roller
392916640905Spring retaining ring 8X0,8 N31A MR7
42607200636Switch
402600780149Lifting Rod
412605801038Plain bearing
422604613004Compression Spring
432603201089Needle Roller
452603105084Bearing bolt
462609001608Roller Lever
492603413034Socket head cap screw
51604460433Power supply cord CH 2,65M 2 X 0,75MM H05 Vv-F
51607000387Power supply cord CN 2,65M 2 X 0,75MM H05 W-f
52604460243Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F
512602317052Profile Beading
542600040003Fixing plate
572601016088Base Plate
62609002019Grommet
602601015077Sealing Plate
642600590006Ratchet Cap
652609002725Straight Pin
662601030166Adjusting Pin
6682601016065Splintering Protector
672602026153Switch Slide Red
692603490022Screw 4X16
752605510253Covering hood
782603105088Locking pin
8012609001927Housing Section
8032609001928Armature 230-240V
8082609001763Nameplate
8082609001764Nameplate
8082609001765Nameplate
8102610391290Carbon-Brush Set
8262609001930Bearing Bracket
8272609001931Eccentric Cog Wheel
8812608040231Saw Blade Depot
92601115261Manufacturer's nameplate PST 700 Pe
92609001801Manufacturer's nameplate
