Bosch PST 700 PAE

Bosch PST 700 PAE jig saw: exploded parts diagram, 1 sheet, 101 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PST 700 PAE: 101 positions on 1 sheet

Bosch PST 700 PAE parts list (1 sheet)

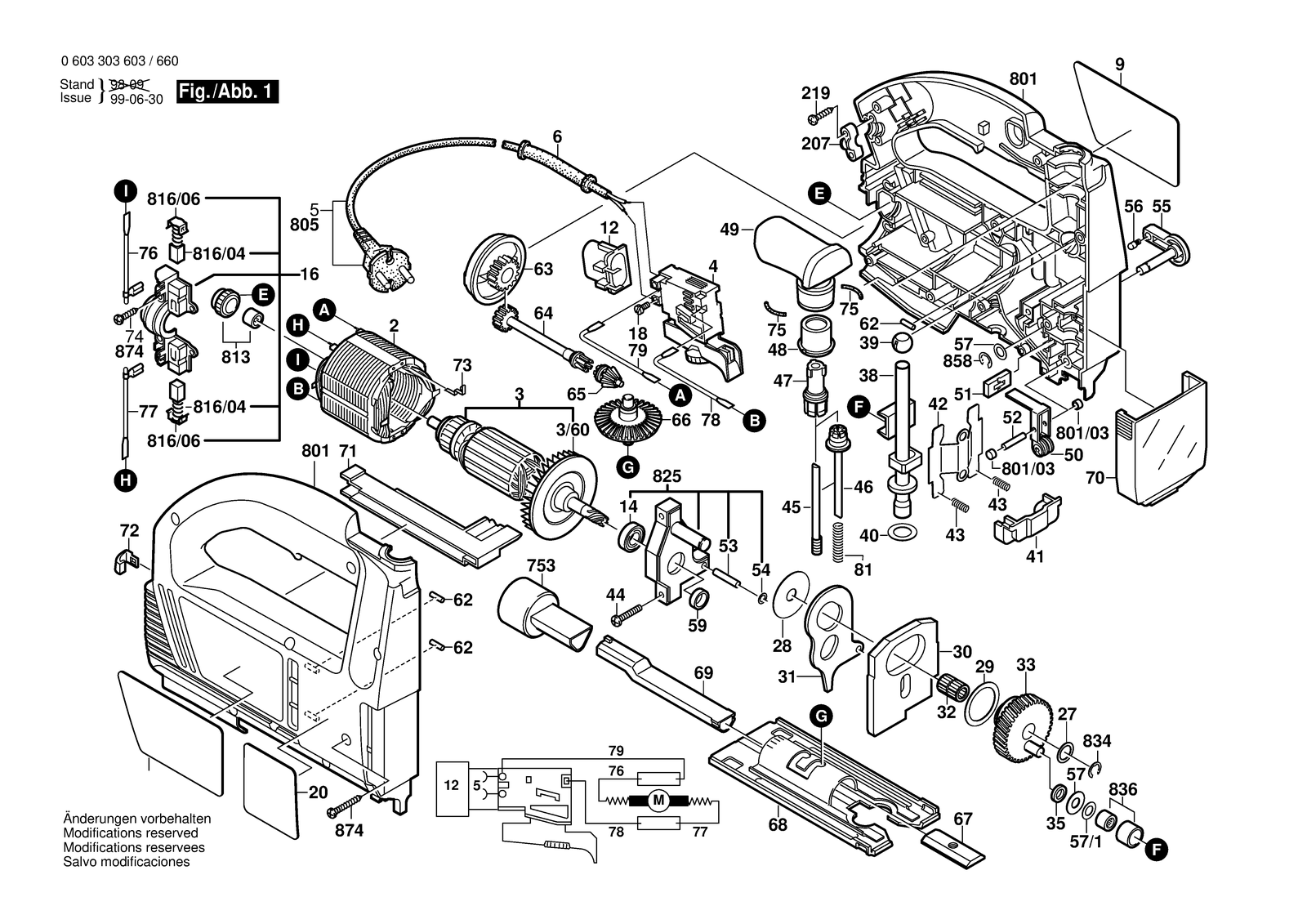

Bosch PST 700 PAE parts diagram, sheet 1
No.Part numberPart name
122607329138Suppression Capacitor
142600905021Groove ball bearing 9X24X7
162605807060Brush Plate
162605807122Brush Plate
162609992617Brush Plate
162609992618Brush Plate
182603410001Socket head cap screw M3X6,5-4.8
22604220438Field 220-230V
22604220447Field 230-240V
22604220482Field 100-115V
2071611035005Cable Clip
2072601035001Cable Clip
2192910611019Tapping Screw DIN 7981-ST3,9X16-C-H
272600101047Shim 0,3 MM
282600101048Shim 0,5 MM
292600102614Shim 0,5 MM
32604010893Armature 100V
32604010894Armature 115V
32604010895Armature 230V
3/602606610050Fan
302601098025Counterweight 5,5 MM
312601923009Fork Lever
322600913007Needle-Roller Assembly
332606320049Eccentric Cog Wheel Z=39
352600200035Intermediate Ring
382600780060Lifting Rod
392600302009Sintered-Metal Bushing
42607200313On-Off Switch
42607200411On-Off Switch
402600101612Shim 0,5 MM
402600116012Shim 0,3 MM
412602316011Support Plate
422601322014Guide Bracket
432604613000Compression Spring
442910950128Oval-Head Screw DIN 7985-M4X18-8.8-H
452603490004Clamp Screw
462606491012Coupling Half
472606491010Ratchet
482600451002Guide Sleeve
492608040073Rotary Handle
51604460015Power supply cord CH 4,15M 2 X 1,0MM H05 Vv-F
51614460010Power supply cord Usa/can/sma 2,15M 2 X 0,82MM SJ 16/2
52604460095Power supply cord J 2,5M 2 X 0,75MM Pvc
52604460131Power supply cord I 4,15M 2 X 1,0MM H05 Vv-F
52604460132Power supply cord GB 4,15M 2 X 1,00MM H05 Vv-F
52604460290Power supply cord AUS 240V 2,6M 2 X 0,75MM H05 Vv-F
502601321049Roller Lever
512601015057Sealing Plate
522609002725Straight Pin
532917530099Straight Pin DIN 6325-4M6X20
542600100510Shim 0,5 MM
552602026055Change-Over Switch Black 230V
562600590006Ratchet Cap
572600100568Shim 0,5 MM
572600100572Shim
572600100607Shim 0,3 MM
592600400030Retaining snap ring
62600703006Grommet Ø9,5 MM
62600703007Grommet Ø7 MM
62600703008Grommet Ø8,2 MM
622603201020Bearing bolt
632608040074Rotary Handle
642606491013Ratchet
652606333029Pinion Z=8
662606333028Bevel Gear Z=32
672602317028Profile Beading
682601016073Base Plate
692605730037Suction Channel
702605510149Covering hood
712608040075Inserted Part
722608040077Sealing cap
732601329047Contact Spring
752603100055Loop
7532600499032Fitting
762604448190Connecting Cable White L=50 MM
772604448123Connecting Cable White L=73 MM
782604448118Connecting Cable Blue L=213 MM
792604448119Connecting Cable Blue L=263MM
8012605104853Housing Section Green
8051607000389Power supply cord
8082601119252Nameplate
8082601119253Marking Plate
8082601119254Marking Plate
8082601119255Marking Plate
8082601119256Marking Plate
8082601119257Marking Plate
8082601119258Marking Plate
8082601119456Nameplate
812604610040Compression Spring
8132600917902Needle-Roller Bearing
816/042604321905Carbon-Brush Set
816/042604321916Carbon-Brush Set
816/062601322013Ratchet Cap
816/062601329051Ratchet Cap
8252605807925Bearing Bracket
8342916080909Locking washer DIN 6799-6-FST
8362600917900Needle bearing
8582916080008Locking washer DIN 6799-5-FST
8742910611020Tapping Screw DIN 7981-ST3,9X19-C-H
92601118351Manufacturer's nameplate Sunny Side
92601118492Manufacturer's nameplate Sunny Side
