Bosch PST 650 L

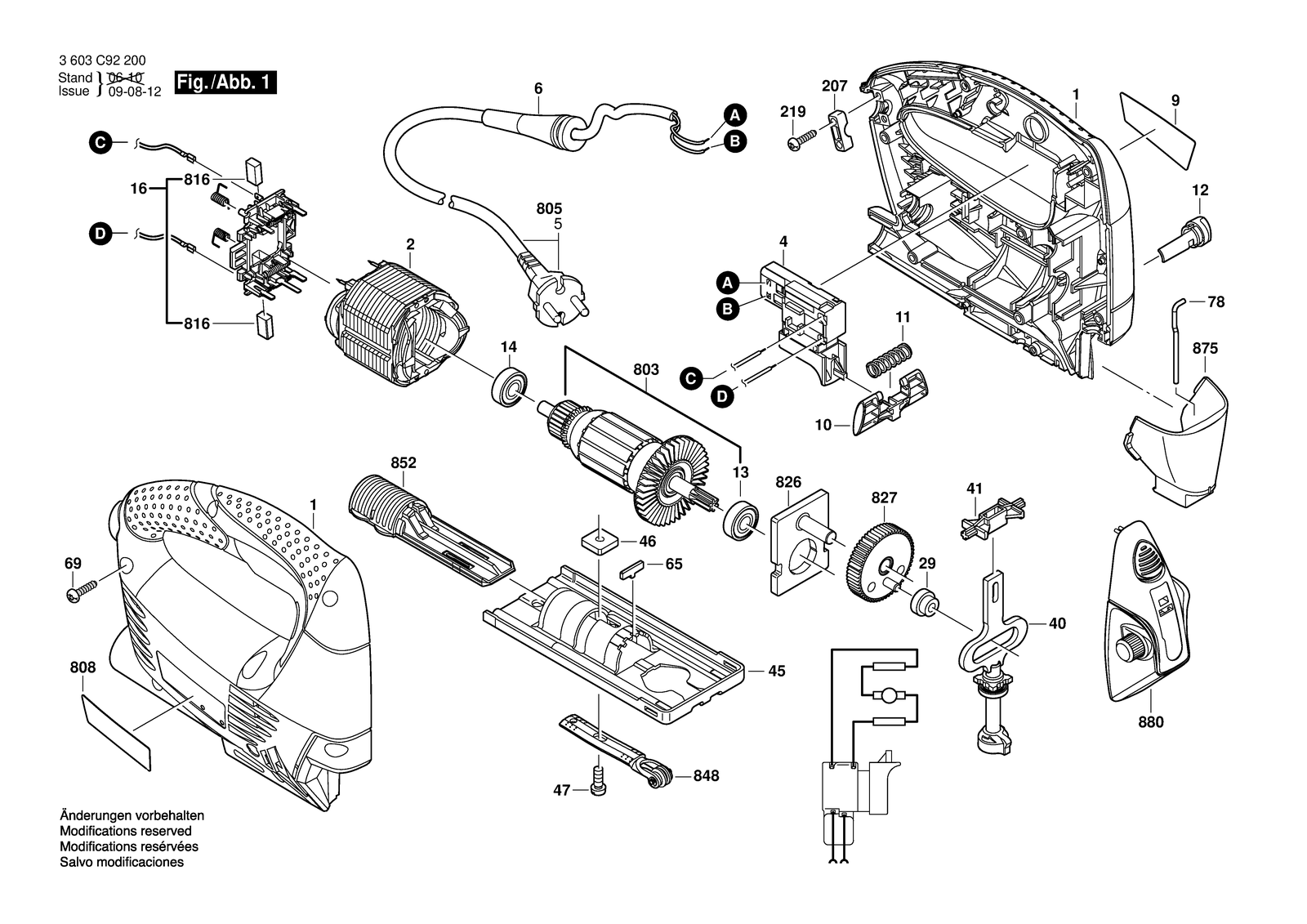

Bosch PST 650 L jig saw: exploded parts diagram, 1 sheet, 80 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PST 650 L: 80 positions on 1 sheet
Bosch PST 650 L parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2609000656 | Housing Section |
| 1 | 2609000656 | Housing Section |
| 10 | 2609000290 | Locking Lever |
| 10 | 2609000290 | Locking Lever |
| 11 | 2609000421 | Compression Spring |
| 11 | 2609000421 | Compression Spring |
| 12 | 2602026132 | Rotary-Knob Valve Red |
| 12 | 2602026132 | Rotary-Knob Valve Red |
| 13 | 3130900020 | Groove ball bearing 8X22X7 608-2Z/C3 |
| 13 | 3130900020 | Groove ball bearing 8X22X7 608-2Z/C3 |
| 14 | 3130900020 | Groove ball bearing 8X22X7 608-2Z/C3 |
| 14 | 2600301068 | Sintered-Metal Bushing |
| 16 | 2604337102 | Brush Plate |
| 16 | 2604337102 | Brush Plate |
| 16 | 2604337103 | Brush Plate |
| 2 | 2604220601 | Field 220-240V |
| 2 | 2604220601 | Field 220-240V |
| 2 | 2604220654 | Field 100-110V |
| 207 | 2601035001 | Cable Clip |
| 207 | 1611035005 | Cable Clip |
| 207 | 2601035001 | Cable Clip |
| 219 | 2603490022 | Screw 4X16 |
| 219 | 2603490022 | Screw 4X16 |
| 29 | 2605801044 | Plain bearing |
| 29 | 2605801044 | Plain bearing |
| 4 | 2607200608 | Switch |
| 4 | 1607200501 | Switch |
| 4 | 2607200609 | Switch |
| 40 | 2600780148 | Lifting Rod |
| 40 | 2600780148 | Lifting Rod |
| 41 | 2605801053 | Guide Bearing |
| 41 | 2605801053 | Guide Bearing |
| 45 | 2601016088 | Base Plate |
| 45 | 2601016088 | Base Plate |
| 46 | 2600040003 | Fixing plate |
| 46 | 2600040003 | Fixing plate |
| 47 | 2603413034 | Socket head cap screw |
| 47 | 2603413034 | Socket head cap screw |
| 5 | 1604460182 | Power supply cord GB 240V 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 1604460182 | Power supply cord GB 240V 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460135 | Power supply cord J 2,5M 2 X 0,75MM Pvc |
| 5 | 2604460295 | Power supply cord AUS 2,6M 2 X 0,75MM H05 Vv-F |
| 6 | 2609002019 | Grommet |
| 6 | 2600703019 | Grommet Ø8,7-Ø9,6X76 MM |
| 6 | 2609002019 | Grommet |
| 65 | 2601030166 | Adjusting Pin |
| 65 | 2601030166 | Adjusting Pin |
| 69 | 2603490022 | Screw 4X16 |
| 69 | 2603490022 | Screw 4X16 |
| 78 | 2603105088 | Locking pin |
| 78 | 2603105088 | Locking pin |
| 803 | 2609000359 | Armature 220-240V |
| 803 | 2609000359 | Armature 220-240V |
| 803 | 2609000360 | Armature 100-110V |
| 805 | 1607000386 | Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 805 | 1607000386 | Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 808 | 2609000956 | Nameplate |
| 808 | 2609000957 | Nameplate |
| 808 | 2609000958 | Nameplate |
| 808 | 2609000959 | Nameplate |
| 808 | 2609000960 | Nameplate |
| 808 | 2609000961 | Nameplate |
| 816 | 2610391290 | Carbon-Brush Set |
| 816 | 2609000460 | Carbon-Brush Set 100-120V |
| 816 | 2610391290 | Carbon-Brush Set |
| 826 | 2609000346 | Bearing Bracket |
| 826 | 2609000346 | Bearing Bracket |
| 827 | 2609002094 | Eccentric Cog Wheel |
| 827 | 2609002094 | Eccentric Cog Wheel |
| 848 | 2601321072 | Retaining Bracket |
| 848 | 2601321072 | Retaining Bracket |
| 852 | 2608040231 | Saw Blade Depot |
| 852 | 2608040231 | Saw Blade Depot |
| 875 | 2605510219 | Covering hood |
| 875 | 2605510219 | Covering hood |
| 880 | 2609001212 | Laser |
| 880 | 2609001212 | Laser |
| 880 | 2609001341 | Laser |
| 9 | 2609000954 | Manufacturer's nameplate PST 650 L |
| 9 | 2609000955 | Manufacturer's nameplate PST 680 El |
