Bosch PST 650

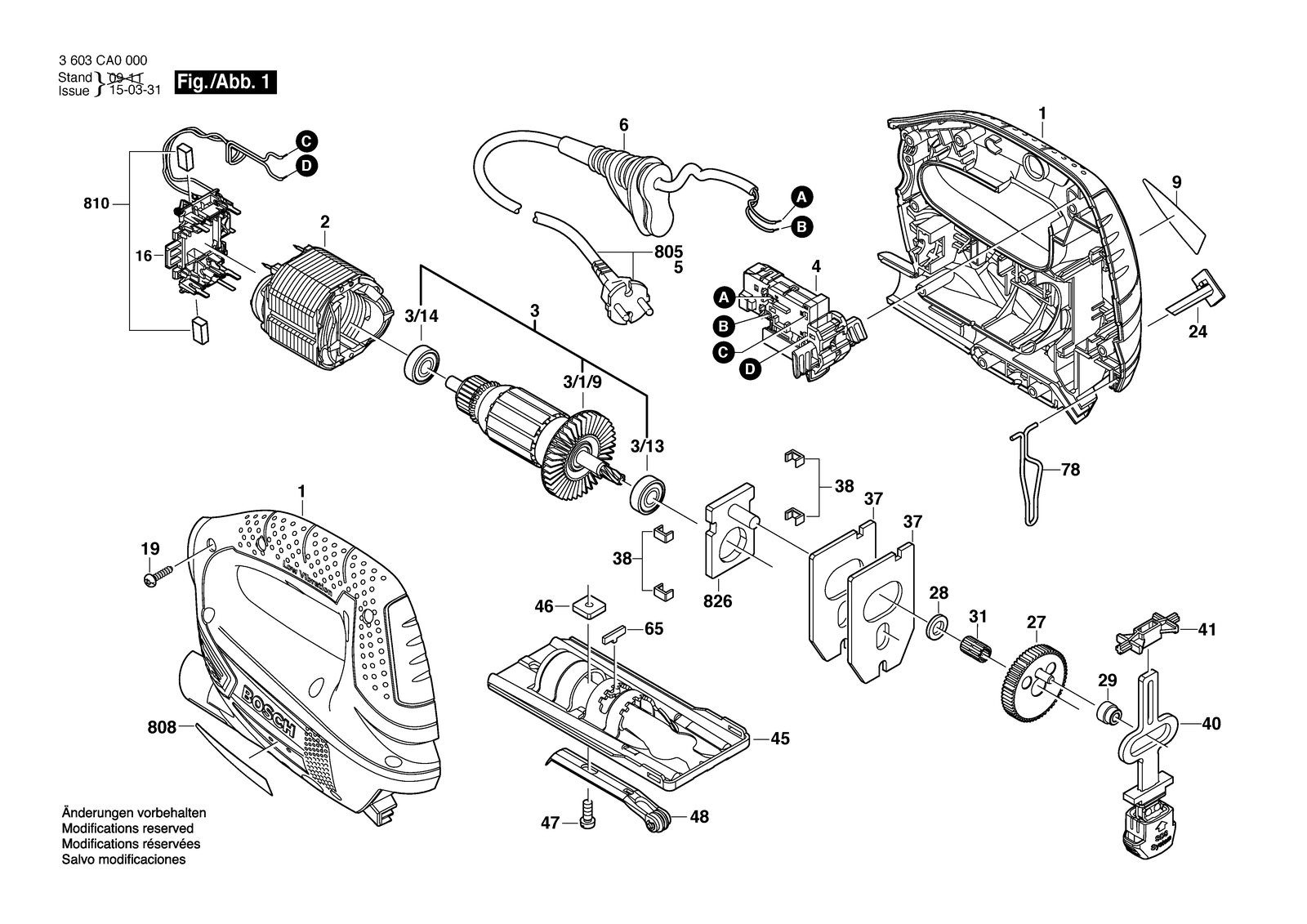

Bosch PST 650 jig saw: exploded parts diagram, 1 sheet, 82 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PST 650: 82 positions on 1 sheet
Bosch PST 650 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2609003335 | Housing Section Green |
| 1 | 2609003335 | Housing Section Green |
| 16 | 2609003338 | Brush Plate |
| 16 | 2609004698 | Brush Holder |
| 16 | 2609006437 | Brush Holder |
| 16 | 2609006437 | Brush Holder |
| 19 | 2603490022 | Screw 4X16 |
| 19 | 2603490022 | Screw 4X16 |
| 2 | 2609002875 | Field 220-240V |
| 2 | 2609004942 | Field 100V |
| 2 | 2609002875 | Field 220-240V |
| 24 | 2609003337 | Switch Slide Red |
| 24 | 2609003337 | Switch Slide Red |
| 27 | 2609003443 | Eccentric Cog Wheel |
| 27 | 2609003443 | Eccentric Cog Wheel |
| 28 | 2609003341 | Plain Washer |
| 28 | 2609003341 | Plain Washer |
| 29 | 2609003636 | Plain bearing |
| 29 | 2609003636 | Plain bearing |
| 3 | 2609003266 | Armature 220-240V |
| 3 | 2609004941 | Armature 100V |
| 3 | 2609003266 | Armature 220-240V |
| 3/1/9 | 2609002159 | Fan |
| 3/1/9 | 2609002159 | Fan |
| 3/13 | 2609000639 | Groove ball bearing 8X22X7 608-2Z/C5 |
| 3/13 | 2609000639 | Groove ball bearing 8X22X7 608-2Z/C5 |
| 3/14 | 2600905110 | Groove ball bearing 8X22X7 |
| 3/14 | 2600905110 | Groove ball bearing 8X22X7 |
| 31 | 2600913040 | Needle-Roller Assembly |
| 31 | 2600913040 | Needle-Roller Assembly |
| 37 | 2609002128 | Counterweight |
| 37 | 2609002128 | Counterweight |
| 38 | 2609002125 | Guide Component |
| 38 | 2609002125 | Guide Component |
| 4 | 1607200239 | Switch |
| 4 | 1607200242 | Switch |
| 4 | 1607200516 | Switch |
| 4 | 1607200242 | Switch |
| 40 | 2609003489 | Lifting Rod |
| 40 | 2609003489 | Lifting Rod |
| 41 | 2605801053 | Guide Bearing |
| 41 | 2605801053 | Guide Bearing |
| 45 | 2609003347 | Base Plate |
| 45 | 2609003347 | Base Plate |
| 46 | 2600040003 | Fixing plate |
| 46 | 2600040003 | Fixing plate |
| 47 | 2603413034 | Socket head cap screw |
| 47 | 2603413034 | Socket head cap screw |
| 48 | 160804011G | Retaining Bracket |
| 48 | 160804011G | Retaining Bracket |
| 5 | 2604460192 | Power supply cord J 2,5M 2 X 0,75MM Pvc |
| 5 | 2604460243 | Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460259 | Power supply cord EU 230V 2,7M 2 X 0,75MM H05 Vv-F |
| 5 | 2604460297 | Power supply cord AUS 240V 2,6M 2 X 0,75MM H05 Vv-F |
| 5 | 2604460243 | Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460259 | Power supply cord EU 230V 2,7M 2 X 0,75MM H05 Vv-F |
| 6 | 2609003080 | Grommet Ø6,4-Ø7,2X76 MM |
| 6 | 2609003752 | Grommet Ø6,4-Ø7,2X76 MM |
| 6 | 2609003080 | Grommet Ø6,4-Ø7,2X76 MM |
| 65 | 2609003349 | Adjusting Pin |
| 65 | 2609003349 | Adjusting Pin |
| 78 | 2609003350 | Protecting Cover Black |
| 78 | 2609003350 | Protecting Cover Black |
| 808 | 160111A2JR | Nameplate |
| 808 | 2609003534 | Nameplate |
| 808 | 2609003535 | Nameplate |
| 808 | 2609003536 | Nameplate |
| 808 | 2609004849 | Nameplate |
| 808 | 2609004937 | Nameplate |
| 808 | 160111A2JT | Nameplate |
| 808 | 160111A2JV | Nameplate |
| 810 | 2609000460 | Carbon-Brush Set 100-120V |
| 810 | 2610391290 | Carbon-Brush Set |
| 810 | 2610391290 | Carbon-Brush Set |
| 826 | 2609003863 | Bearing Bracket |
| 826 | 2609003863 | Bearing Bracket |
| 9 | 2609003533 | Manufacturer's nameplate PST 700 E |
| 9 | 2609004925 | Manufacturer's nameplate PST 700 |
| 9 | 161111C04A | Manufacturer's nameplate Pst Easy |
| 9 | 2609005731 | Manufacturer's nameplate PST 650 |
| 9 | 2609005773 | Manufacturer's nameplate PST 670 |
| 9 | 2609006420 | Manufacturer's nameplate PST 65 |
