Bosch PST 650

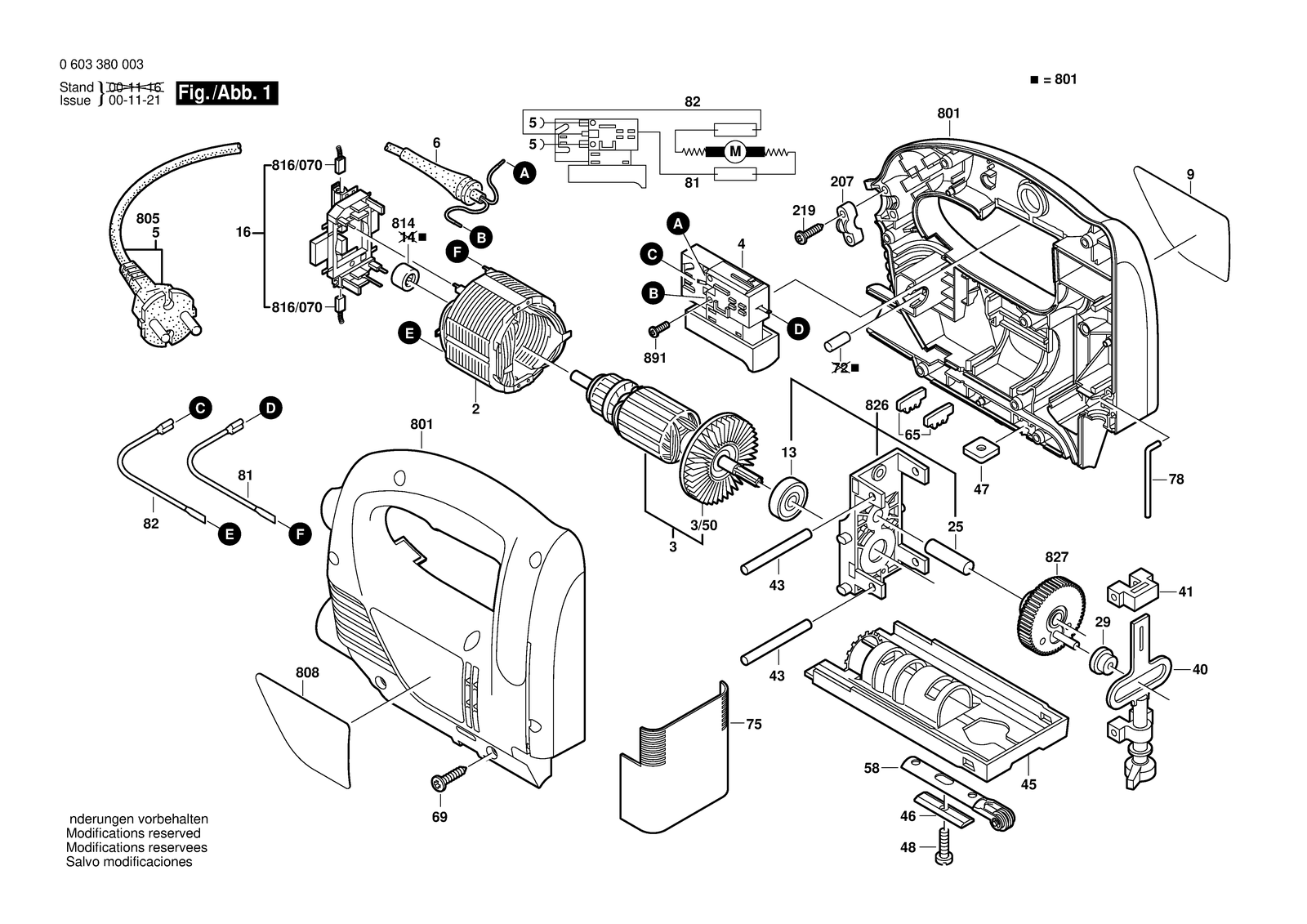

Bosch PST 650 jig saw: exploded parts diagram, 1 sheet, 59 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PST 650: 59 positions on 1 sheet
Bosch PST 650 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 13 | 2600905021 | Groove ball bearing 9X24X7 |
| 16 | 1600A012AZ | Brush Plate |
| 16 | 2604337106 | Brush Plate |
| 2 | 2604011233 | Armature 100V |
| 2 | 2604220652 | Field 230-240V |
| 2 | 2604220653 | Field 110-127V |
| 2 | 2604220654 | Field 100-110V |
| 207 | 1611035005 | Cable Clip |
| 207 | 2601035001 | Cable Clip |
| 219 | 2603490022 | Screw 4X16 |
| 25 | 2603105083 | Bearing bolt |
| 29 | 2605801044 | Plain bearing |
| 3 | 2604011231 | Armature 230-240V |
| 3 | 2604011232 | Armature 115-127V |
| 3/50 | 2606610097 | Fan |
| 4 | 2607200523 | On-Off Switch |
| 40 | 2600780145 | Lifting Rod |
| 41 | 2605801038 | Plain bearing |
| 43 | 2603201089 | Needle Roller |
| 45 | 2601016080 | Base Plate |
| 46 | 2601032021 | Profile Beading |
| 47 | 2600040003 | Fixing plate |
| 48 | 2603413034 | Socket head cap screw |
| 5 | 1604460220 | Power supply cord SAM 2,68M 2 X 082MM SJ 18/2 |
| 5 | 1604460236 | Power supply cord AR 2,7M 2 X 1,0MM H05 Vv-F |
| 5 | 1604460433 | Power supply cord CH 2,65M 2 X 0,75MM H05 Vv-F |
| 5 | 2604460074 | Power supply cord AUS 2,6M 2 X 0,75MM Pvc |
| 5 | 2604460095 | Power supply cord J 2,5M 2 X 0,75MM Pvc |
| 5 | 2604460243 | Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460283 | Power supply cord I/br 2,65M 2 X 1,0MM H05 Vv-F |
| 58 | 2601321063 | Retaining Bracket |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 6 | 2600703018 | Grommet Ø7,3-Ø8,6X76 MM |
| 6 | 2600703019 | Grommet Ø8,7-Ø9,6X76 MM |
| 65 | 2601038111 | Locking element |
| 69 | 2603490022 | Screw 4X16 |
| 75 | 2605510169 | Covering hood |
| 78 | 2603105088 | Locking pin |
| 801 | 2605105900 | Housing Section |
| 805 | 1607000386 | Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 808 | 2601117200 | Reference Plate |
| 808 | 2601117220 | Reference Plate |
| 808 | 2601117221 | Reference Plate |
| 808 | 2601117222 | Reference Plate |
| 808 | 2601117248 | Reference Plate |
| 808 | 2601117249 | Reference Plate |
| 808 | 2601117250 | Reference Plate |
| 808 | 2601117794 | Reference Plate |
| 808 | 2601117825 | Reference Plate |
| 81 | 2604448033 | Connecting Cable White L=243 MM |
| 814 | 2605805008 | Flanged Bearing |
| 816/070 | 2604321914 | Carbon-Brush Set |
| 816/070 | 2604321925 | Carbon-Brush Set |
| 82 | 2604448232 | Connecting Cable Blue L=220 MM |
| 826 | 2605807935 | Bearing Bracket |
| 827 | 2606320903 | Eccentric Cog Wheel |
| 891 | 2603410046 | Cross Recessed-Head Screw M3X5 |
| 9 | 2601117235 | Manufacturer's nameplate Sunny Side PST 650 |
| 9 | 2601117809 | Manufacturer's nameplate PST 650 |
