Bosch PST 65 PE

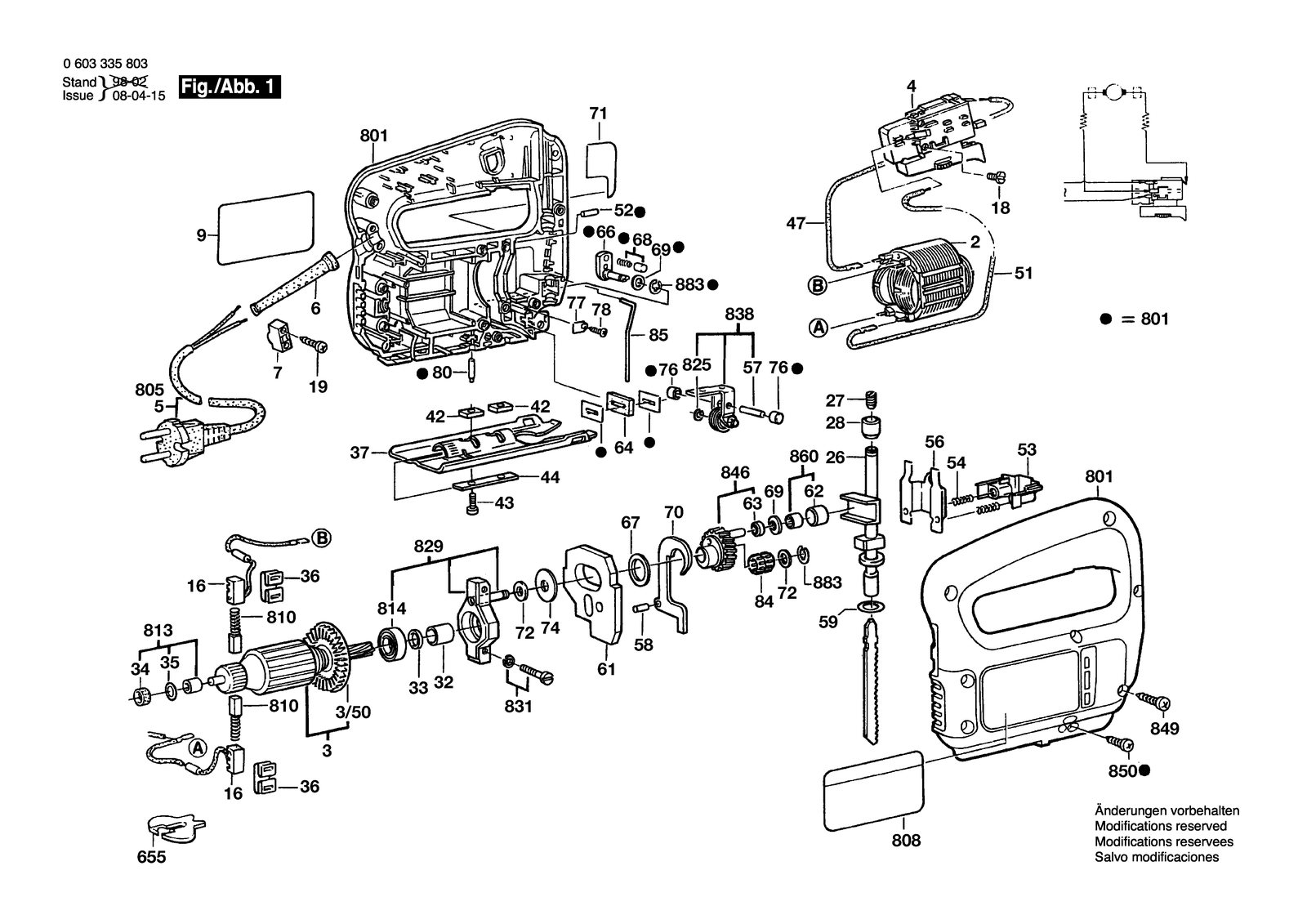

Bosch PST 65 PE jig saw: exploded parts diagram, 1 sheet, 84 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PST 65 PE: 84 positions on 1 sheet
Bosch PST 65 PE parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 16 | 1604449002 | Brush Holder |
| 16 | 2604465077 | Brush Holder |
| 18 | 2603410046 | Cross Recessed-Head Screw M3X5 |
| 19 | 2603490022 | Screw 4X16 |
| 2 | 2604220612 | Field 230-240V |
| 2 | 2604220627 | Field 100V |
| 26 | 2600780038 | Lifting Rod |
| 27 | 2603400000 | Clamp Screw |
| 28 | 2600302006 | Sintered-Metal Bushing |
| 3 | 2604011185 | Armature 230-240V |
| 3 | 2604011237 | Armature 115V |
| 3/50 | 2606610022 | Fan |
| 32 | 2600400024 | Guide Sleeve |
| 33 | 2600103013 | Supporting Disc |
| 34 | 1600205023 | Felt Washer |
| 35 | 1610210014 | O-Ring 8,0X2,5 MM |
| 36 | 1619P09928 | Holding Spring |
| 37 | 2601016012 | Base Plate |
| 4 | 2607200581 | On-Off Switch |
| 42 | 2601030006 | Fixing plate |
| 43 | 2910021122 | Socket head cap screw DIN 84-AM4X12-8.8 |
| 44 | 2602317025 | Profile Beading |
| 47 | 2604448206 | Connecting Cable Blue L = 250 MM |
| 5 | 1604460234 | Power supply cord AR 2,7M 2 X 1,0MM H05 Vv-F |
| 5 | 1604460432 | Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 2604460147 | Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460223 | Power supply cord AUS 2,6M 2 X 0,75MM Pvc |
| 5 | 2604460233 | Power supply cord SAM 2,65M 2 X 082MM SJ 18/2 |
| 5 | 2604460277 | Power supply cord I/br 2,65M 2 X 1,0MM H05 Vv-F |
| 51 | 2604448207 | Connecting Cable White L = 275 MM |
| 53 | 2602316011 | Support Plate |
| 54 | 2604613000 | Compression Spring |
| 56 | 2601322014 | Guide Bracket |
| 58 | 2917530095 | Straight Pin 4M6X12DIN6325 |
| 59 | 2600101612 | Shim 0,5 MM |
| 59 | 2600116012 | Shim 0,3 MM |
| 6 | 2600703007 | Grommet Ø7 MM |
| 6 | 2600703008 | Grommet Ø8,2 MM |
| 61 | 2601098005 | Counterweight |
| 62 | 2600400012 | Bearing Sleeve |
| 63 | 2600200022 | Spacer Sleeve |
| 64 | 2601015057 | Sealing Plate |
| 655 | 2601016065 | Splintering Protector |
| 66 | 2602026035 | Switch Handle |
| 67 | 2600101083 | Shim 0,3 MM |
| 68 | 2600590006 | Ratchet Cap |
| 69 | 2600100568 | Shim 0,5 MM |
| 7 | 1611035005 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 70 | 2601923003 | Fork Lever |
| 71 | 2601117008 | Sticker |
| 72 | 2600100570 | Shim 0,3 MM |
| 74 | 2600102014 | Shim 0,5 MM |
| 76 | 2600506008 | Press-In Socket |
| 77 | 2601098006 | Support Plate |
| 78 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 80 | 2603120019 | Detent Pin |
| 801 | 2605104820 | Housing Section Blue |
| 801 | 2605104828 | Housing Section Green |
| 805 | 1607000388 | Power supply cord EU 2,65M 2 X 1,0MM H05 Rn-F |
| 808 | 2601117035 | Marking Plate |
| 808 | 2601117089 | Nameplate |
| 808 | 2601119588 | Marking Plate |
| 808 | 2601119590 | Marking Plate |
| 808 | 2601119591 | Nameplate |
| 808 | 2601119592 | Marking Plate |
| 808 | 2601119834 | Nameplate |
| 810 | 2604321904 | Carbon-Brush Set |
| 813 | 1600301900 | Sintered-Metal Bushing |
| 814 | 2600905039 | Groove ball bearing 9X24X7 |
| 825 | 2916080906 | Locking washer DIN 6799-3,2 |
| 829 | 2605807908 | Bearing Bracket |
| 831 | 2914500009 | Screw and washer assembly DIN7985-M4X18Z1-4.8 |
| 838 | 2601321900 | Roller Lever |
| 84 | 2600913002 | Needle-Roller Assembly |
| 846 | 2606319900 | Eccentric Cog Wheel Z=39 |
| 849 | 2910611020 | Tapping Screw DIN 7981-ST3,9X19-C-H |
| 85 | 2603105050 | Locking pin |
| 850 | 2910611018 | Tapping Screw DIN 7981-ST3,9X13-C-H |
| 860 | 2600917900 | Needle bearing |
| 883 | 2916080008 | Locking washer DIN 6799-5-FST |
| 9 | 2601117133 | Manufacturer's nameplate |
| 9 | 2601119587 | Manufacturer's nameplate |
| 9 | 2601119865 | Manufacturer's nameplate |
