Bosch PST 60 PE

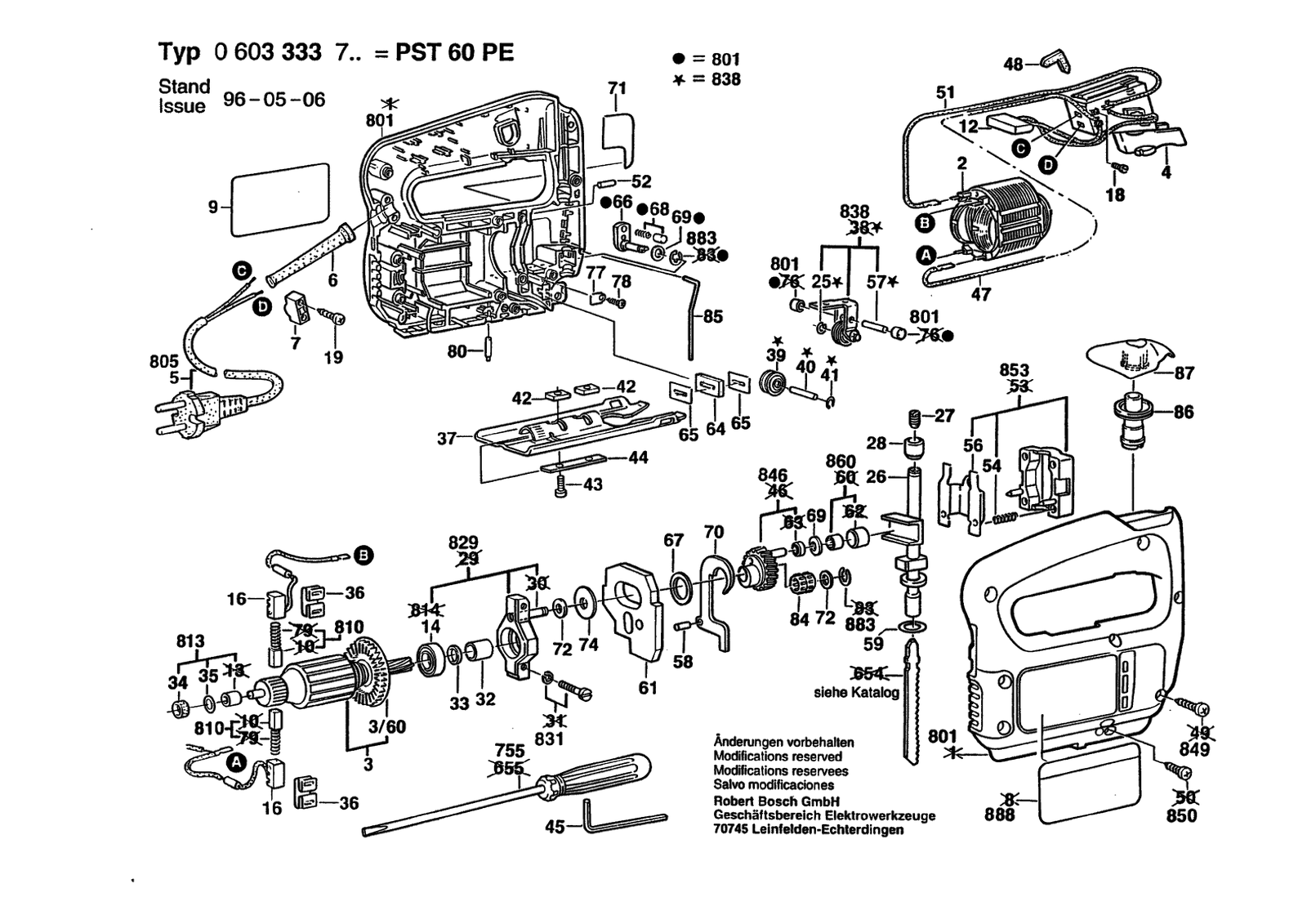

Bosch PST 60 PE jig saw: exploded parts diagram, 1 sheet, 157 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PST 60 PE: 157 positions on 1 sheet
Bosch PST 60 PE parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 12 | 2607329004 | Suppression Capacitor |
| 12 | 2607329004 | Suppression Capacitor |
| 14 | 2600905039 | Groove ball bearing 9X24X7 |
| 14 | 2600905021 | Groove ball bearing 9X24X7 |
| 16 | 1604449002 | Brush Holder |
| 16 | 2604465077 | Brush Holder |
| 16 | 2604465077 | Brush Holder |
| 18 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 18 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 19 | 2910611019 | Tapping Screw DIN 7981-ST3,9X16-C-H |
| 19 | 2910611019 | Tapping Screw DIN 7981-ST3,9X16-C-H |
| 2 | 2604220390 | Field 110-115V |
| 2 | 2604220392 | Field 230V |
| 2 | 2604220423 | Field 220-240V |
| 2 | 2604220432 | Field 115V |
| 2 | 2604220423 | Field 220-240V |
| 25 | 1619P01375 | Roller Set |
| 25 | 2916080906 | Locking washer DIN 6799-3,2 |
| 26 | 2600780038 | Lifting Rod |
| 26 | 2600780038 | Lifting Rod |
| 27 | 2603400000 | Clamp Screw |
| 27 | 2603400000 | Clamp Screw |
| 28 | 2600302006 | Sintered-Metal Bushing |
| 28 | 2600302006 | Sintered-Metal Bushing |
| 3 | 2604010556 | Armature 100V |
| 3 | 2604010557 | Armature 110-127V |
| 3 | 2604010558 | Armature 220-240V |
| 3 | 2604010559 | Armature 240V |
| 3 | 2604010558 | Armature 220-240V |
| 3/60 | 2606610022 | Fan |
| 3/60 | 2606610022 | Fan |
| 32 | 2600400024 | Guide Sleeve |
| 32 | 2600400024 | Guide Sleeve |
| 33 | 2600103013 | Supporting Disc |
| 33 | 2600103013 | Supporting Disc |
| 34 | 1600205023 | Felt Washer |
| 34 | 1600205023 | Felt Washer |
| 35 | 1610210014 | O-Ring 8,0X2,5 MM |
| 35 | 1610210014 | O-Ring 8,0X2,5 MM |
| 36 | 1619P09928 | Holding Spring |
| 36 | 1619P09928 | Holding Spring |
| 37 | 2601016012 | Base Plate |
| 37 | 2601016012 | Base Plate |
| 39 | 2600326018 | Guide Roller |
| 39 | 2600326018 | Guide Roller |
| 4 | 2607200184 | Switch |
| 4 | 2607200185 | Switch |
| 4 | 2607200184 | Switch |
| 40 | 2603105089 | Bearing bolt |
| 40 | 2603105089 | Bearing bolt |
| 41 | 2600116011 | Locking washer |
| 41 | 2600116011 | Locking washer |
| 42 | 2601030006 | Fixing plate |
| 42 | 2601030006 | Fixing plate |
| 43 | 2910021122 | Socket head cap screw DIN 84-AM4X12-8.8 |
| 43 | 2910021122 | Socket head cap screw DIN 84-AM4X12-8.8 |
| 44 | 2602317025 | Profile Beading |
| 44 | 2602317025 | Profile Beading |
| 47 | 2604448118 | Connecting Cable Blue L=213 MM |
| 47 | 2604448118 | Connecting Cable Blue L=213 MM |
| 5 | 1614460010 | Power supply cord Usa/can/sma 2,15M 2 X 0,82MM SJ 16/2 |
| 5 | 2604460095 | Power supply cord J 2,5M 2 X 0,75MM Pvc |
| 5 | 2604460168 | Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460277 | Power supply cord I/br 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 1604460225 | Power supply cord CN 2,65M 2 X 1,5MM H07 Rn-F |
| 51 | 2604448205 | Connecting Cable |
| 51 | 2604448205 | Connecting Cable |
| 52 | 2603201020 | Bearing bolt |
| 52 | 2603201020 | Bearing bolt |
| 54 | 2604613000 | Compression Spring |
| 54 | 2604613000 | Compression Spring |
| 56 | 2601322014 | Guide Bracket |
| 56 | 2601322014 | Guide Bracket |
| 57 | 2609002725 | Straight Pin |
| 57 | 2609002725 | Straight Pin |
| 58 | 2917530095 | Straight Pin 4M6X12DIN6325 |
| 58 | 2917530095 | Straight Pin 4M6X12DIN6325 |
| 59 | 2600101612 | Shim 0,5 MM |
| 59 | 2600116012 | Shim 0,3 MM |
| 59 | 2600101612 | Shim 0,5 MM |
| 59 | 2600116012 | Shim 0,3 MM |
| 6 | 2600703006 | Grommet Ø9,5 MM |
| 6 | 2600703007 | Grommet Ø7 MM |
| 6 | 2600703008 | Grommet Ø8,2 MM |
| 6 | 2600703007 | Grommet Ø7 MM |
| 61 | 2601098005 | Counterweight |
| 61 | 2601098005 | Counterweight |
| 64 | 2601015057 | Sealing Plate |
| 64 | 2601015057 | Sealing Plate |
| 66 | 2602026035 | Switch Handle |
| 66 | 2602026035 | Switch Handle |
| 67 | 2600101083 | Shim 0,3 MM |
| 67 | 2600101083 | Shim 0,3 MM |
| 68 | 2600590006 | Ratchet Cap |
| 68 | 2600590006 | Ratchet Cap |
| 69 | 2600100568 | Shim 0,5 MM |
| 69 | 2600100607 | Shim 0,3 MM |
| 69 | 2600100568 | Shim 0,5 MM |
| 69 | 2600100607 | Shim 0,3 MM |
| 7 | 2601035001 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 70 | 2601923003 | Fork Lever |
| 70 | 2601923003 | Fork Lever |
| 71 | 2601117008 | Sticker |
| 71 | 2601117008 | Sticker |
| 72 | 2600100570 | Shim 0,3 MM |
| 72 | 2600100570 | Shim 0,3 MM |
| 74 | 2600102014 | Shim 0,5 MM |
| 74 | 2600102014 | Shim 0,5 MM |
| 77 | 2601098006 | Support Plate |
| 77 | 2601098006 | Support Plate |
| 78 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 78 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 80 | 2603120019 | Detent Pin |
| 80 | 2603120019 | Detent Pin |
| 801 | 2605104832 | Housing Section Green |
| 801 | 2605104832 | Housing Section Green |
| 805 | 1607000388 | Power supply cord EU 2,65M 2 X 1,0MM H05 Rn-F |
| 810 | 2604321904 | Carbon-Brush Set |
| 810 | 2604321904 | Carbon-Brush Set |
| 813 | 1600301900 | Sintered-Metal Bushing |
| 813 | 1600301900 | Sintered-Metal Bushing |
| 829 | 2605807908 | Bearing Bracket |
| 829 | 2605807908 | Bearing Bracket |
| 831 | 2914500009 | Screw and washer assembly DIN7985-M4X18Z1-4.8 |
| 831 | 2914500009 | Screw and washer assembly DIN7985-M4X18Z1-4.8 |
| 838 | 2601321900 | Roller Lever |
| 838 | 2601321900 | Roller Lever |
| 84 | 2600913002 | Needle-Roller Assembly |
| 84 | 2600913002 | Needle-Roller Assembly |
| 846 | 2606319900 | Eccentric Cog Wheel Z=39 |
| 846 | 2606319900 | Eccentric Cog Wheel Z=39 |
| 849 | 2912401020 | Tapping Screw DIN 7981-3,9X19-C-Z-ST |
| 849 | 2912401020 | Tapping Screw DIN 7981-3,9X19-C-Z-ST |
| 85 | 2603105050 | Locking pin |
| 85 | 2603105050 | Locking pin |
| 850 | 2910611018 | Tapping Screw DIN 7981-ST3,9X13-C-H |
| 850 | 2910611018 | Tapping Screw DIN 7981-ST3,9X13-C-H |
| 853 | 2602316902 | Support Plate |
| 853 | 2602316902 | Support Plate |
| 86 | 2608040113 | Inserted Part |
| 86 | 2608040113 | Inserted Part |
| 860 | 2600917900 | Needle bearing |
| 860 | 2600917900 | Needle bearing |
| 87 | 2603231036 | Plug |
| 87 | 2603231036 | Plug |
| 883 | 2916080008 | Locking washer DIN 6799-5-FST |
| 883 | 2916080008 | Locking washer DIN 6799-5-FST |
| 888 | 2601119443 | Marking Plate |
| 888 | 2601119444 | Marking Plate |
| 888 | 2601119445 | Marking Plate |
| 888 | 2601119446 | Marking Plate |
| 888 | 2601119447 | Marking Plate |
| 888 | 2601119448 | Marking Plate |
| 888 | 2601119443 | Marking Plate |
| 9 | 2601117007 | Manufacturer's nameplate Sunny Side |
| 9 | 2601117007 | Manufacturer's nameplate Sunny Side |
