Bosch PST 52 A

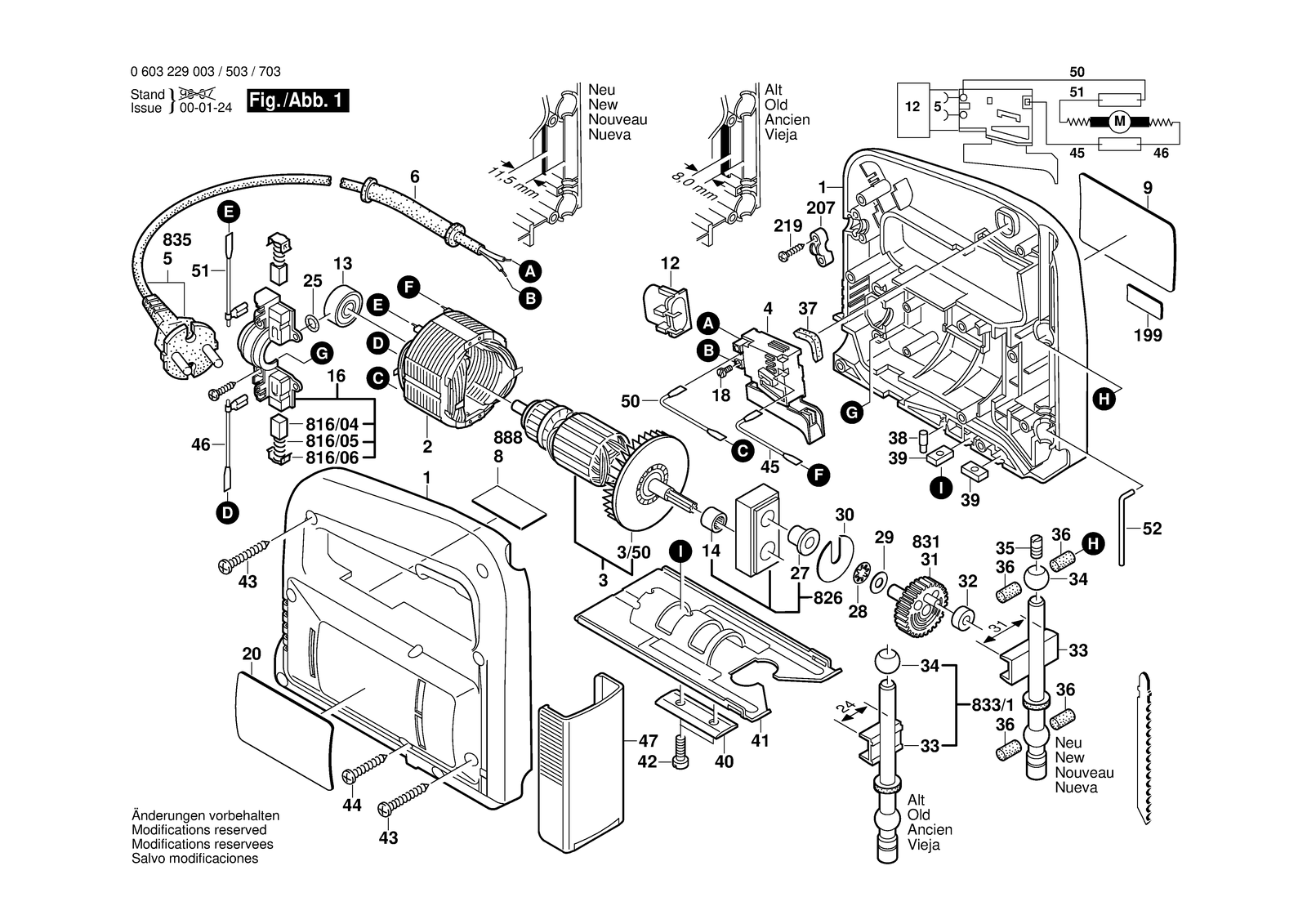

Bosch PST 52 A jig saw: exploded parts diagram, 1 sheet, 63 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PST 52 A: 63 positions on 1 sheet
Bosch PST 52 A parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605104270 | Housing Section Green |
| 1 | 2605104271 | Housing Section Blue |
| 12 | 2607329138 | Suppression Capacitor |
| 13 | 2600905032 | Ball Bearing 7X19X6 |
| 14 | 2600917003 | Needle-Roller Bearing Ø8X8 MM |
| 16 | 2604337118 | Brush Plate |
| 16 | 2604337122 | Brush Plate |
| 18 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 199 | 1601110265 | Reference Plate |
| 2 | 2604220464 | Field 110-115V |
| 2 | 2604220465 | Field 115V |
| 2 | 2604220466 | Field 220-240V |
| 2 | 2604220467 | Field 240V |
| 20 | 2601110587 | Sticker Shadow Side |
| 25 | 1900210000 | O-Ring 5,0X1,5 MM |
| 26 | 2605807918 | Bearing Bracket |
| 27 | 2600322003 | Bushing |
| 28 | 2600190040 | Spring Washer |
| 29 | 2600100505 | Shim 0,5 MM |
| 3 | 2604010734 | Armature With Fan 100V |
| 3 | 2604010735 | Armature 115V |
| 3 | 2604010736 | Armature 220V |
| 3 | 2604010737 | Armature 240V |
| 30 | 2600040001 | Shim 0,2 MM |
| 30 | 2600040002 | Shim 0,6 MM |
| 31 | 2606316900 | Eccentric Cog Wheel Z=49 |
| 32 | 2600301014 | Guide Roller |
| 33 | 2600780033 | Lifting Rod 8,0 MM |
| 34 | 2600302008 | Sintered-Metal Bushing |
| 35 | 2603400000 | Clamp Screw |
| 36 | 2603239006 | Lubricating Felt |
| 37 | 2601022000 | Damping Plate |
| 38 | 2603120037 | Detent Pin |
| 39 | 2601030006 | Fixing plate |
| 4 | 2607200260 | Switch |
| 40 | 2602317025 | Profile Beading |
| 41 | 2601016012 | Base Plate |
| 42 | 2910021122 | Socket head cap screw DIN 84-AM4X12-8.8 |
| 43 | 2603490021 | Torx Oval-Head Screw 4X12 |
| 45 | 2604448118 | Connecting Cable Blue L=213 MM |
| 46 | 2604448130 | Connecting Cable White L=88 MM |
| 47 | 2605510052 | Covering hood |
| 5 | 1604460124 | Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 1604460220 | Power supply cord SAM 2,68M 2 X 082MM SJ 18/2 |
| 5 | 1607000388 | Power supply cord EU 2,65M 2 X 1,0MM H05 Rn-F |
| 5 | 2604460074 | Power supply cord AUS 2,6M 2 X 0,75MM Pvc |
| 5 | 2604460095 | Power supply cord J 2,5M 2 X 0,75MM Pvc |
| 5 | 2604460125 | Power supply cord CH 2,65M 2 X 1,0MM H05VV-F |
| 5 | 2604460280 | Power supply cord I / BR 2,65M 2 X 1,0MM H05VV-F |
| 50 | 2604448119 | Connecting Cable Blue L=263MM |
| 51 | 2604448123 | Connecting Cable White L=73 MM |
| 52 | 2603105051 | Pin |
| 6 | 2600703006 | Grommet Ø9,5 MM |
| 6 | 2600703007 | Grommet Ø7 MM |
| 6 | 2600703008 | Grommet Ø8,2 MM |
| 8 | 160111A3H3 | Nameplate |
| 816/040 | 2604321905 | Carbon-Brush Set |
| 816/040 | 2604321917 | Carbon-Brush Set |
| 816/050 | 2604610026 | Compression Spring |
| 816/060 | 2601322013 | Ratchet Cap |
| 826 | 2605807918 | Bearing Bracket |
| 833/1 | 2600780902 | Lifting Rod Ø 8,2 MM |
| 9 | 2601110586 | Sticker Sunny Side |
