Bosch PST 50 A

Bosch PST 50 A jig saw: exploded parts diagram, 1 sheet, 49 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move

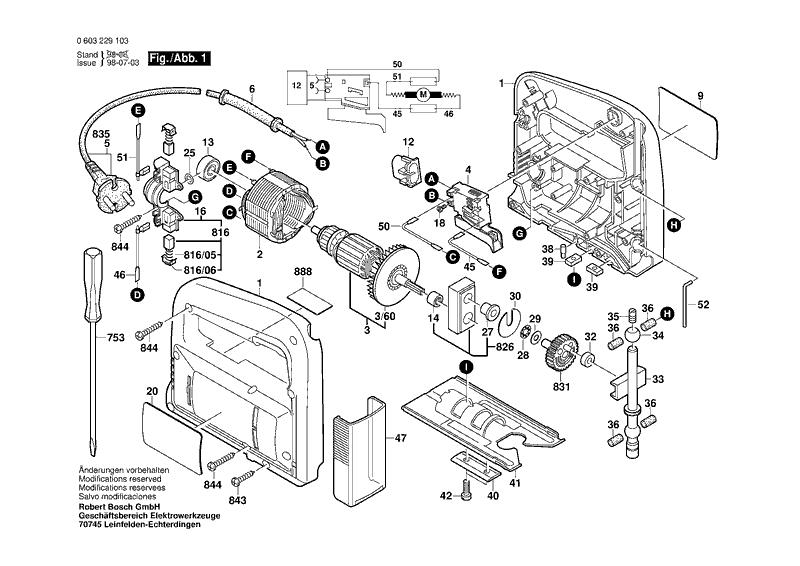

All parts on this sheet0
All parts of Bosch PST 50 A: 49 positions on 1 sheet

Bosch PST 50 A parts list (1 sheet)

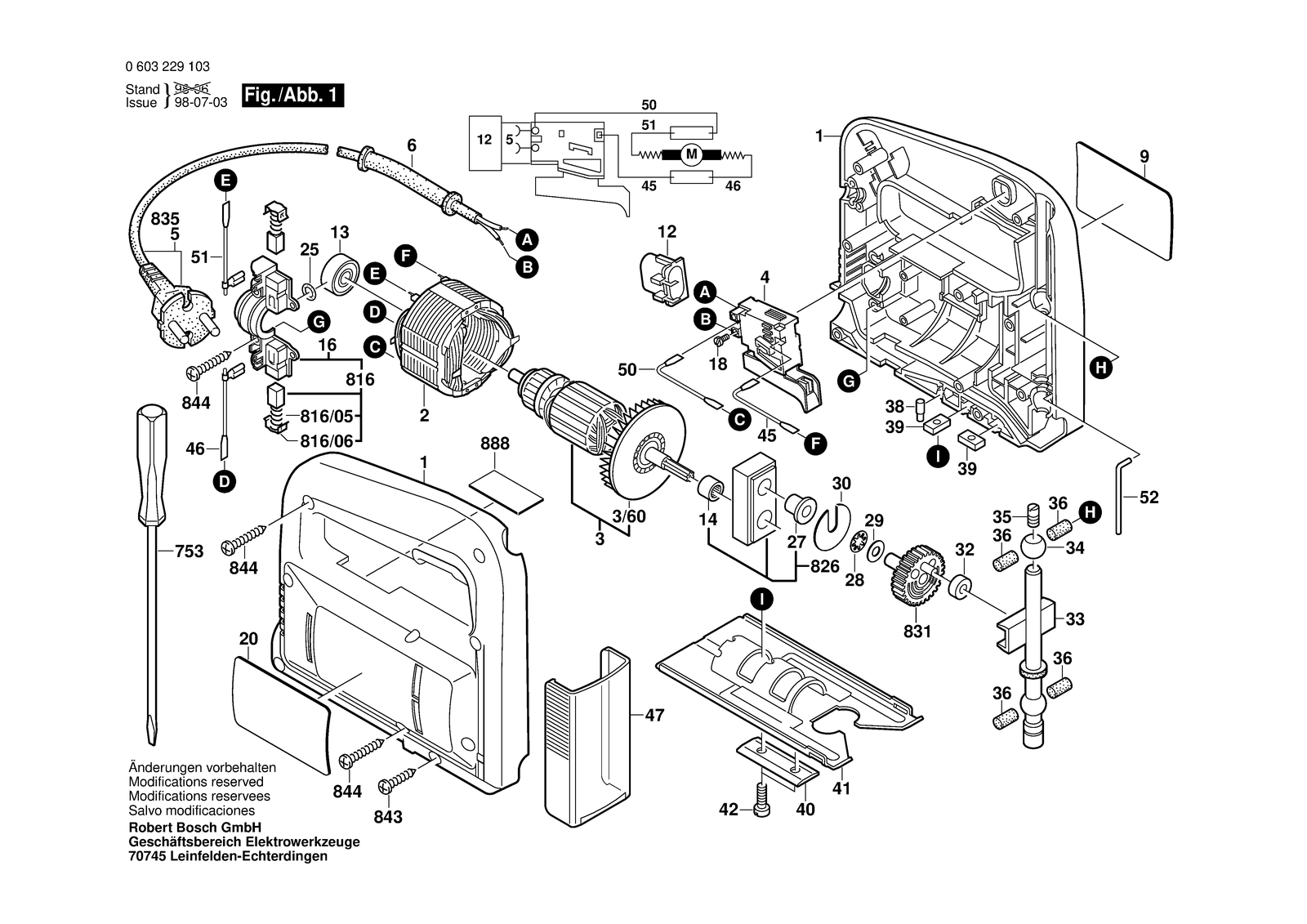

Bosch PST 50 A parts diagram, sheet 1
No.Part numberPart name
12605104270Housing Section Green
122607329138Suppression Capacitor
132600905046Groove ball bearing 8X19X6
142600917003Needle-Roller Bearing Ø8X8 MM
162604337118Brush Plate
182603410001Socket head cap screw M3X6,5-4.8
22604220523Field 230-240V
202601110877Sticker Shadow Side
251900210000O-Ring 5,0X1,5 MM
272600322003Bushing
282600190040Spring Washer
292600100505Shim 0,5 MM
32604011025Armature 230-240V
3/601619P11262Fan
302600040001Shim 0,2 MM
302600040002Shim 0,6 MM
322600301014Guide Roller
332600780065Lifting Rod
342600302008Sintered-Metal Bushing
352603400000Clamp Screw
362603239006Lubricating Felt
382603120037Detent Pin
392601030006Fixing plate
42607200365On-Off Switch
402602317025Profile Beading
412601016074Base Plate
422910021122Socket head cap screw DIN 84-AM4X12-8.8
452604448118Connecting Cable Blue L=213 MM
462604448130Connecting Cable White L=88 MM
472605510052Covering hood
52604460074Power supply cord AUS 2,6M 2 X 0,75MM Pvc
52604460124Power supply cord GB 240V 2,65M 2 X 1,0MM H05 Vv-F
52604460125Power supply cord CH 2,65M 2 X 1,0MM H05VV-F
502604448119Connecting Cable Blue L=263MM
512604448123Connecting Cable White L=73 MM
522603105051Pin
62600703007Grommet Ø7 MM
62600703008Grommet Ø8,2 MM
8162604321917Carbon-Brush Set
816/052604610026Compression Spring
816/062601322013Ratchet Cap
816/062601329051Ratchet Cap
8262605807918Bearing Bracket
8312606316900Eccentric Cog Wheel Z=49
8351607000388Power supply cord EU 2,65M 2 X 1,0MM H05 Rn-F
8432910611018Tapping Screw DIN 7981-ST3,9X13-C-H
8442910611020Tapping Screw DIN 7981-ST3,9X19-C-H
888160111A3H3Nameplate
92601110876Sticker Sunny Side
