Bosch PST 18 LI cordless jigsaw: exploded parts diagram, 2 sheets, 46 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PST 18 LI: 46 positions on 2 sheets

Bosch PST 18 LI parts list (2 sheets)

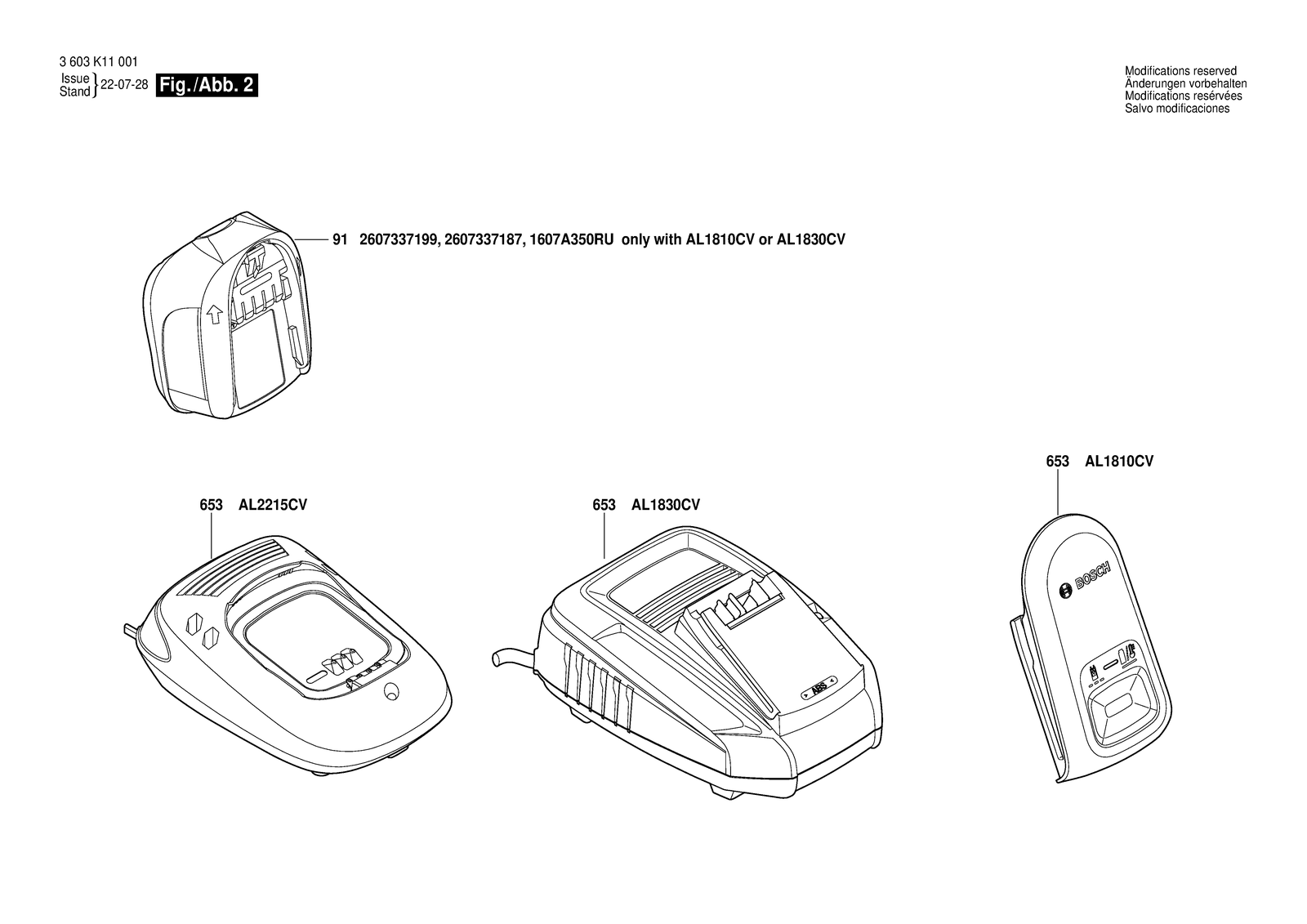

Bosch PST 18 LI parts diagram, sheet 1Bosch PST 18 LI parts diagram, sheet 2
No.Part numberPart name
12609004219Housing
192603490022Screw 4X16
222609004221Printed Circuit Board
251600A023S8Retaining Washer
272600914022Needle bearing
302609003655Eccentric Cog Wheel
332609003444Fork Lever
371600A008C6Retaining Washer
392609003452Counterweight
42607202172On-Off Switch
402609003490Lifting Rod
412609003638Plain bearing
422609003450Insert
442604613004Compression Spring
452609001608Roller Lever
492603413034Socket head cap screw
512602317052Profile Beading
522601030166Adjusting Pin
542600040003Fixing plate
572609004368Base Plate
592609004225Spring Plate
602601015077Sealing Plate
622609003447Change-Over Switch
632609003508Control Shaft
642600590006Ratchet Cap
652609002725Straight Pin
6532607225965Fast Charger EU AL 1830 CV 230/14,4-18V 1H
6532607225967Charger Gb AL 1830 CV 230/14,4-18V 1H
6532607225969Charger Aus AL 1830 CV 230/14,4-18V 1H
6532607226385Fast Charger EU AL 1810 CV 230/14,4-18V 1A
6532607226387Fast Charger Gb AL 1810 CV 230/14,4-18V 1A
6682601016065Splintering Protector
692609004921Lever
752609004220Covering hood
782609003350Protecting Cover Black
8022609004731DC motor 18V
808160111A2KUNameplate
812608040231Saw Blade Depot
8232609004583Bearing Bracket
852609003509Support
862609003510Window
872609004226State-Of-Charge Indicator
9160111A150Manufacturer's nameplate PST 18 LI
911607A350JMBattery Pack PBA 18V/1,5 Ah W-a
911607A350RUBattery Pack PBA 18V 2,5AH W-b 45WH
911607A351C9Battery Pack
