Bosch PST 1000 PEL

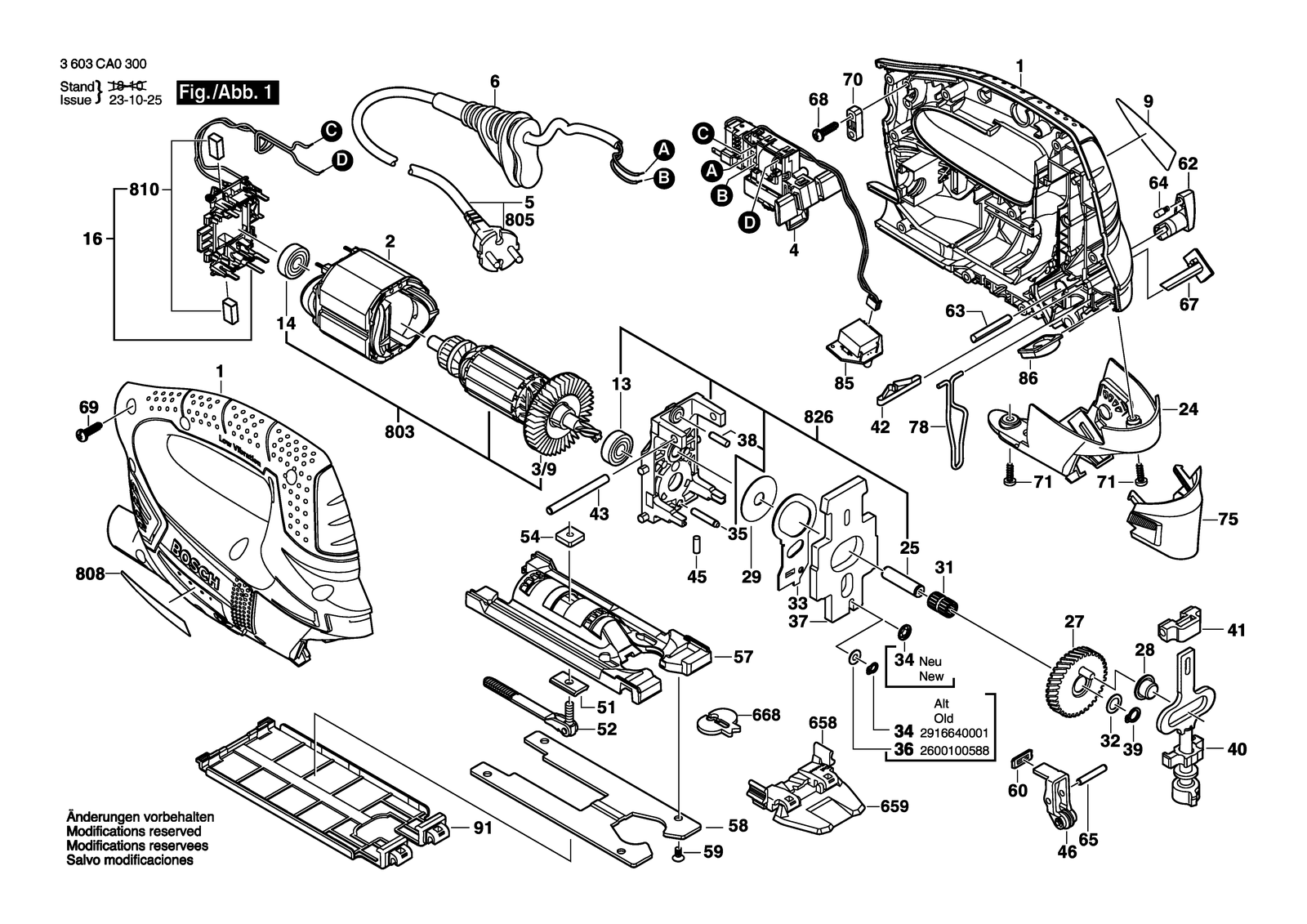

Bosch PST 1000 PEL jig saw: exploded parts diagram, 1 sheet, 70 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PST 1000 PEL: 70 positions on 1 sheet
Bosch PST 1000 PEL parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2609003458 | Housing Section Green |
| 13 | 3130900020 | Groove ball bearing 8X22X7 608-2Z/C3 |
| 14 | 2600905110 | Groove ball bearing 8X22X7 |
| 16 | 2609003772 | Brush Holder |
| 16 | 2609006435 | Brush Holder |
| 2 | 2604220583 | Field 100-120V |
| 2 | 2609003671 | Field 230-240V |
| 24 | 2609003644 | Cover |
| 25 | 2603105080 | Bearing bolt |
| 27 | 2606320093 | Eccentric Cog Wheel |
| 28 | 2600914022 | Needle bearing |
| 29 | 2600101048 | Shim 0,5 MM |
| 3/9 | 2606610123 | Fan |
| 31 | 2600913040 | Needle-Roller Assembly |
| 32 | 2600101077 | Shim 0,5 MM |
| 33 | 2601923012 | Fork Lever |
| 34 | 1600A008C6 | Retaining Washer |
| 35 | 2603105091 | Bearing bolt |
| 37 | 2601098098 | Counterweight |
| 38 | 1903201055 | Needle Roller |
| 39 | 2916640905 | Spring retaining ring 8X0,8 N31A MR7 |
| 4 | 1607200218 | Switch |
| 4 | 1607200240 | Switch |
| 40 | 2600780149 | Lifting Rod |
| 41 | 2605801038 | Plain bearing |
| 42 | 2604613004 | Compression Spring |
| 43 | 2603201089 | Needle Roller |
| 45 | 2603105084 | Bearing bolt |
| 46 | 2609001608 | Roller Lever |
| 5 | 1604460417 | Power supply cord CH 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2609005734 | Power supply cord J 2,65M 2 X 1,0MM Pvc |
| 51 | 2602317052 | Profile Beading |
| 52 | 2602098016 | Tensioning Lever |
| 54 | 2600040003 | Fixing plate |
| 57 | 2609003462 | Base Plate |
| 58 | 2609003463 | Work Board |
| 59 | 2603421014 | Thread-forming tap. Screw |
| 6 | 2609003080 | Grommet Ø6,4-Ø7,2X76 MM |
| 6 | 2609003752 | Grommet Ø6,4-Ø7,2X76 MM |
| 60 | 2601015077 | Sealing Plate |
| 62 | 2609003447 | Change-Over Switch |
| 63 | 2603124155 | Control Shaft |
| 64 | 2600590006 | Ratchet Cap |
| 65 | 2609002725 | Straight Pin |
| 658 | 2609003511 | Support |
| 659 | 2609003512 | Window |
| 668 | 2601016065 | Splintering Protector |
| 67 | 2609003337 | Switch Slide Red |
| 68 | 2603490022 | Screw 4X16 |
| 69 | 2603490022 | Screw 4X16 |
| 70 | 1611035005 | Cable Clip |
| 70 | 2601035001 | Cable Clip |
| 71 | 2603490021 | Torx Oval-Head Screw 4X12 |
| 75 | 2609003464 | Covering hood |
| 78 | 2609003350 | Protecting Cover Black |
| 803 | 2609001928 | Armature 230-240V |
| 803 | 2609005272 | Armature 100-120V |
| 805 | 1607000386 | Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 805 | 1607000387 | Power supply cord CN 2,65M 2 X 0,75MM H05 W-f |
| 808 | 160111A2KF | Nameplate |
| 808 | 160111A2KK | Nameplate |
| 808 | 2609003615 | Nameplate |
| 808 | 2609004936 | Nameplate |
| 810 | 2609000460 | Carbon-Brush Set 100-120V |
| 810 | 2610391290 | Carbon-Brush Set |
| 826 | 2609003887 | Bearing Bracket |
| 85 | 1607233368 | Led Board |
| 86 | 2609003465 | Lens |
| 9 | 2609003621 | Manufacturer's nameplate PST 1000 Pel |
| 91 | 2609003553 | Pad |
