Bosch PSS 300 AE orbital sander: exploded parts diagram, 1 sheet, 33 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PSS 300 AE: 33 positions on 1 sheet

Bosch PSS 300 AE parts list (1 sheet)

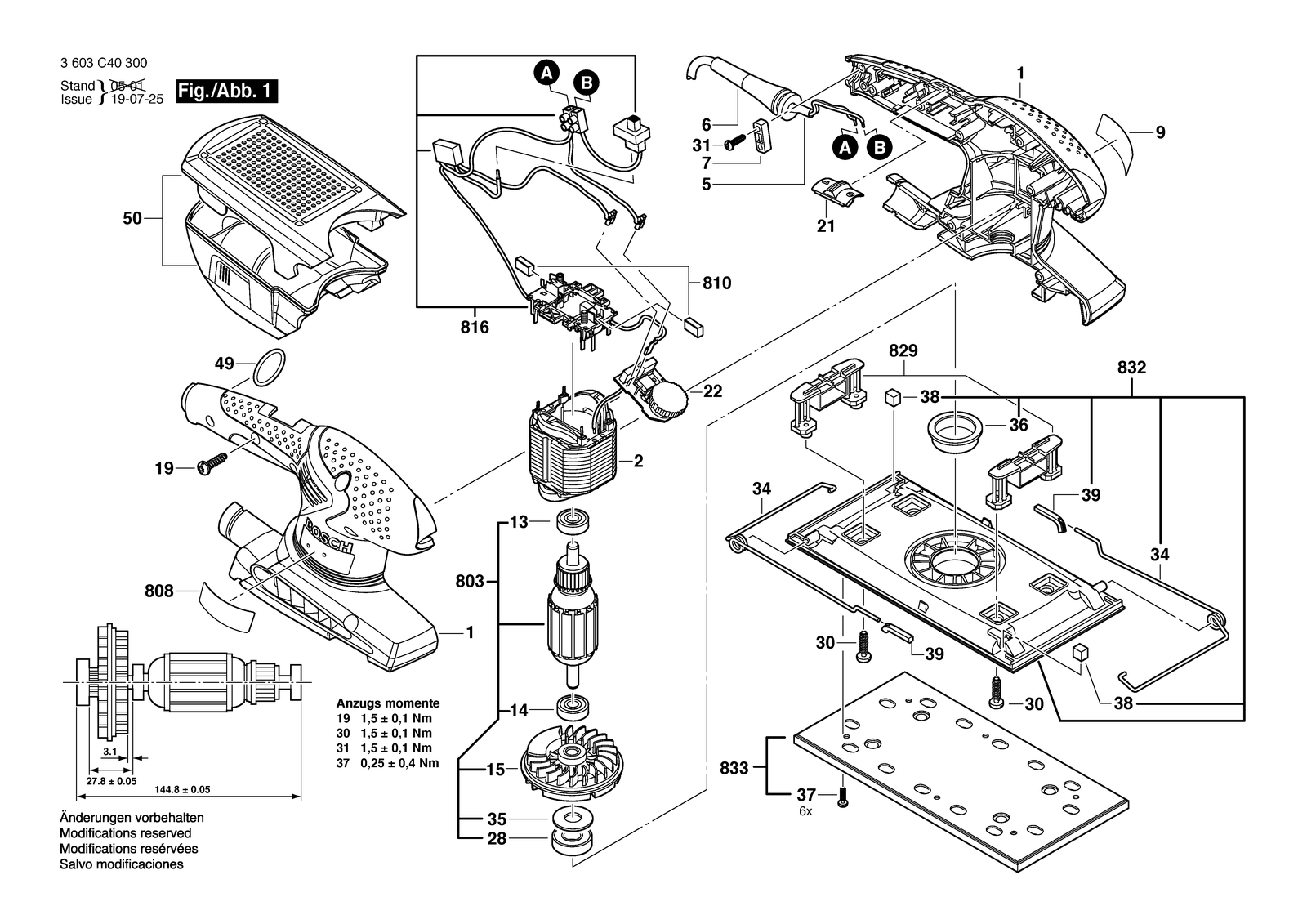

Bosch PSS 300 AE parts diagram, sheet 1
No.Part numberPart name
12609000354Housing Section Green
132600905078Groove ball bearing
142600905052Groove ball bearing 8X22X7
152609000361Fan
192603490022Screw 4X16
22609000623Field 230V
212609000362Switch Slide
221607233192Rpm Actuator
282600905045Groove ball bearing 12X28X8
302603490021Torx Oval-Head Screw 4X12
312603490022Screw 4X16
342609000370Clamping Saddle
352609003061Felt Washer
362609001588Insulating Cap
372603413035Oval-Head Screw M4X8
382609000696Plastic Insert
392609000702End cap
492609001762O-Ring
51604460260Power supply cord GB 230V 2,65M 2 X 0,75MM H05 Vv-F
52604460260Power supply cord EU 2,7M 2 X 0,75MM H05 Vv-F
502609000356Dust container
62609002019Grommet
72601035004Cable Clip
8032609000869Armature 230V
808160111A2W4Nameplate
8082609000539Nameplate
8102610391290Carbon-Brush Set
8162609000873Brush Holder
8292609000874Vibration Foot
8322609000878Sander Plate
8332609000942Foam Panel
92609000523Manufacturer's nameplate PSS 300 Ae
92609001860Manufacturer's nameplate PSS 300 Ae
