Bosch PSS 280 A

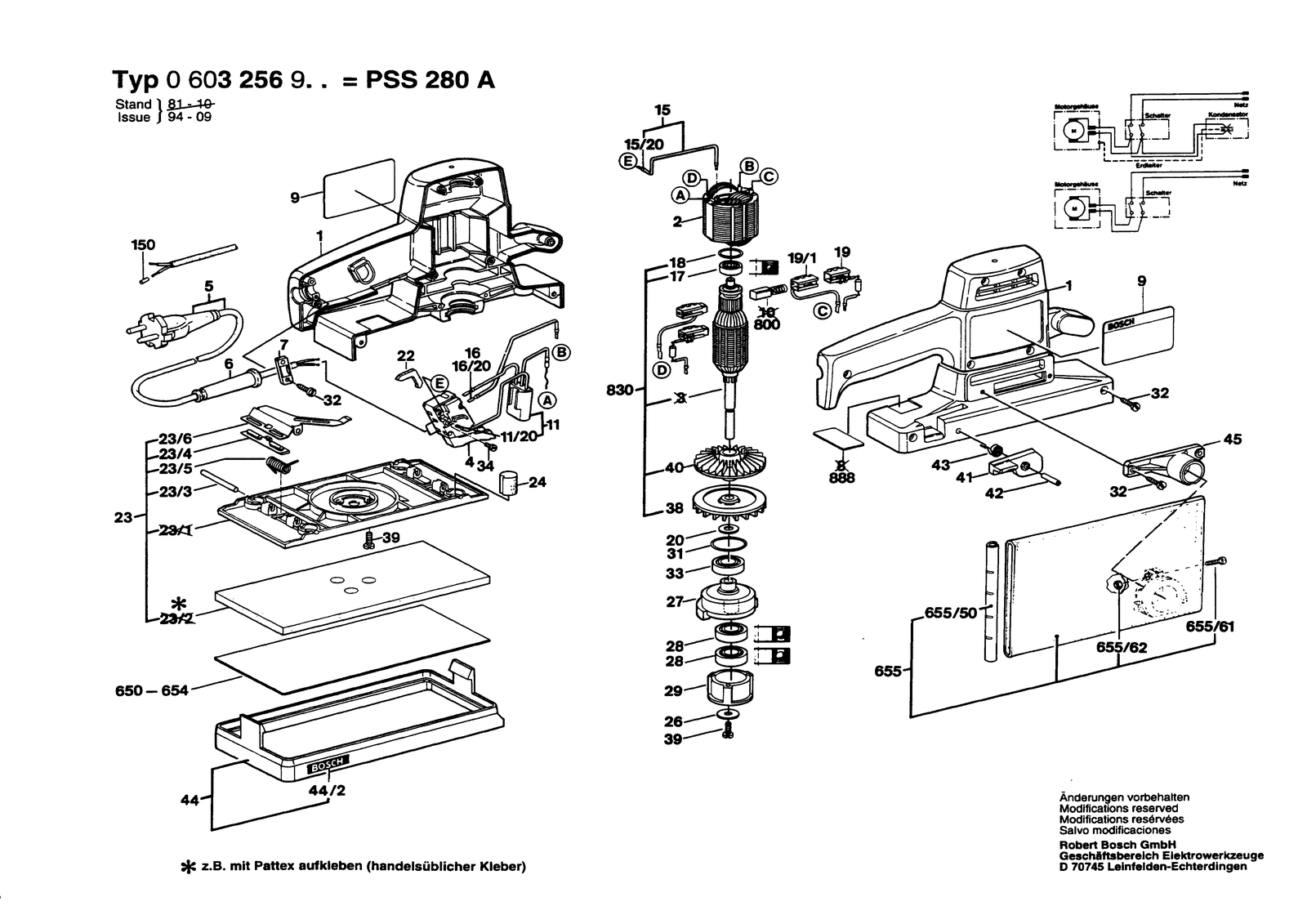

Bosch PSS 280 A orbital sander: exploded parts diagram, 1 sheet, 67 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PSS 280 A: 67 positions on 1 sheet
Bosch PSS 280 A parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605104970 | Housing Section Green |
| 1 | 2605104971 | Housing Section Blue |
| 11 | 2607329095 | Suppression Capacitor |
| 11/20 | 2601355007 | Blade terminal |
| 15 | 2604448001 | Connecting Cable White L=184 MM |
| 15/20 | 2601355007 | Blade terminal |
| 150 | 1900452012 | End Splice DIN 46 228-A1-6 |
| 16 | 1614431010 | Cable White L=233 MM |
| 16/20 | 2601355007 | Blade terminal |
| 17 | 1900905018 | Ball Bearing 7X22X7 |
| 17 | 2600905027 | Groove ball bearing |
| 18 | 1900210119 | O-Ring 20X2,5 MM |
| 19 | 2604465054 | Suppression Filter |
| 19/1 | 1607014117 | Carbon Brush |
| 2 | 1604220207 | Field 220V |
| 2 | 1604220208 | Field 100V |
| 2 | 1604220209 | Pole Shoe 110-115V |
| 2 | 1604220210 | Field 240V |
| 20 | 2600100041 | Plain Washer DIN 315-M8-GT-C |
| 22 | 2601022000 | Damping Plate |
| 23 | 1601038029 | Base Plate |
| 23/3 | 2603101029 | Straight Pin |
| 23/4 | 2602329022 | Pressure Bar |
| 23/5 | 1604651004 | Coiled Spring |
| 23/6 | 2601961000 | Clamping Lever |
| 24 | 1603106001 | Round Rubber |
| 26 | 1600100025 | Plain Washer |
| 27 | 1602210015 | Eccentric Disc |
| 28 | 1900905122 | Groove ball bearing 15X32X9 |
| 29 | 1600501066 | Bearing Flange |
| 31 | 1900210128 | O-Ring 28X2,5 MM |
| 32 | 2910611019 | Tapping Screw DIN 7981-ST3,9X16-C-H |
| 32 | 2912401020 | Tapping Screw DIN 7981-3,9X19-C-Z-ST |
| 33 | 1900905162 | Groove ball bearing 15X32X9 |
| 34 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 38 | 1606610117 | Fan |
| 39 | 2910021154 | Socket head cap screw DIN 84-AM5X12-8.8 |
| 4 | 2607200084 | Switch |
| 4 | 2607200260 | Switch |
| 40 | 1606610118 | Fan |
| 41 | 1602099001 | Control Lever |
| 42 | 2604681000 | Split Pin |
| 43 | 1604652004 | Spiral Spring |
| 44 | 1605190026 | Suction Frame |
| 44/2 | 1601110013 | Manufacturer's nameplate |
| 45 | 1605702006 | Flanged Fitting |
| 5 | 1604460024 | Power supply cord |
| 5 | 1604460033 | Power supply cord AUS 2,65M 2 X 1,0MM Pvc |
| 5 | 1604460110 | Power supply cord CH 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 1607000388 | Power supply cord EU 2,65M 2 X 1,0MM H05 Rn-F |
| 5 | 2604460205 | Power supply cord GB 110V 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 3607030489 | Power supply cord |
| 6 | 1600703016 | Grommet Ø6,4-Ø7,5X75 MM |
| 6 | 2600703006 | Grommet Ø9,5 MM |
| 655 | 2605411900 | Dust Bag |
| 655/50 | 2601314002 | Support clamp |
| 655/61 | 2910021128 | Socket head cap screw DIN 84-AM4X18-8.8 |
| 655/62 | 2915051104 | Hex Nut DIN 439-BM 4-04 |
| 7 | 2601035001 | Cable Clip |
| 7 | 2601035011 | Sliding Plate |
| 800 | 1607014124 | Carbon-Brush Set |
| 830 | 1604010232 | Armature 220V |
| 830 | 1604010233 | Armature 100V |
| 830 | 1604010234 | Holding Pin 110-115V |
| 830 | 1604010235 | Armature 240V |
| 888 | 160111A3H3 | Nameplate |
| 9 | 2601110605 | Sticker Sunny Side |
