Bosch PSS 28 A

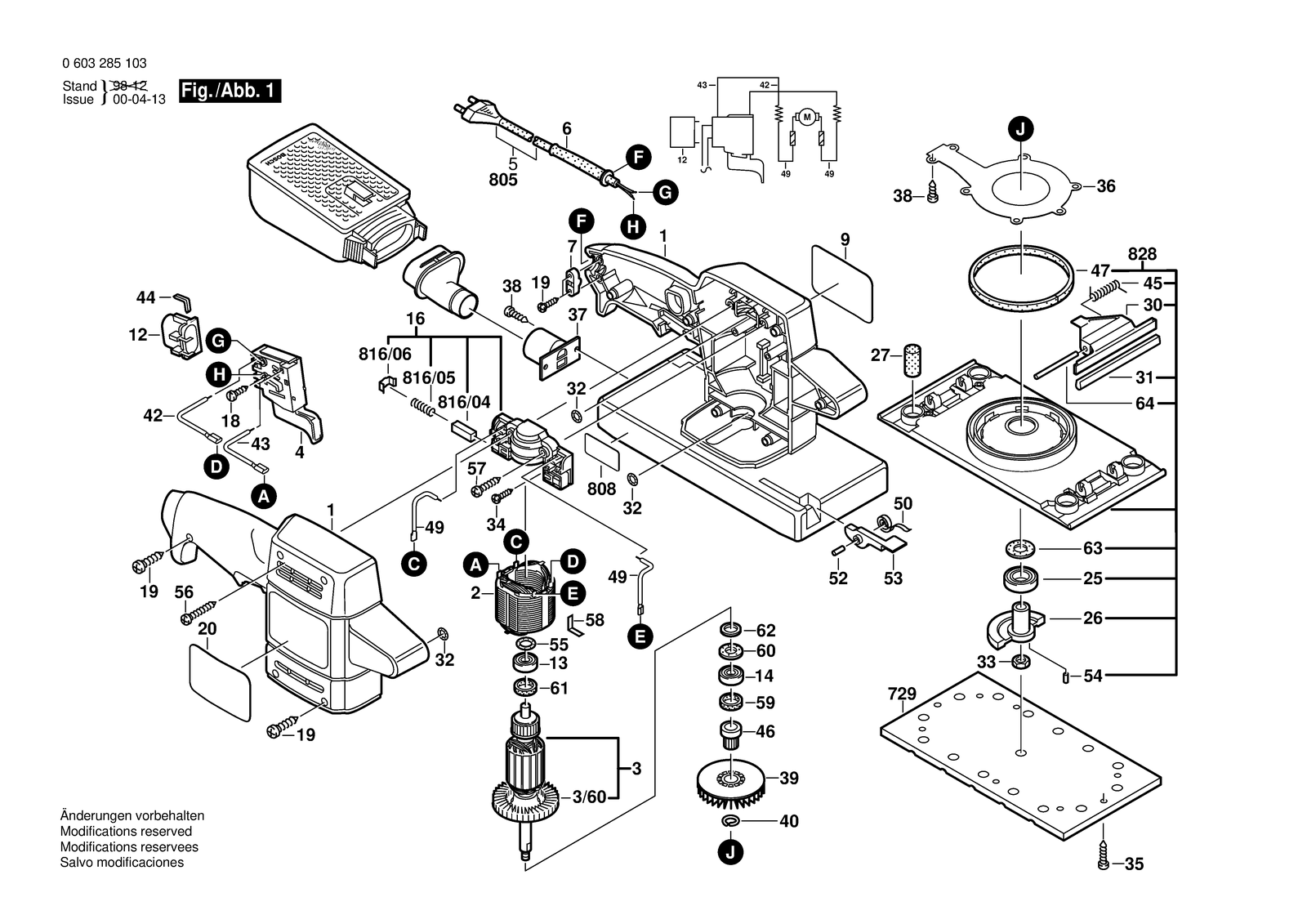

Bosch PSS 28 A orbital sander: exploded parts diagram, 1 sheet, 142 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PSS 28 A: 142 positions on 1 sheet
Bosch PSS 28 A parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605104542 | Housing Section Green |
| 1 | 2605104542 | Housing Section Green |
| 12 | 2607329141 | Suppression Capacitor |
| 13 | 1900905044 | Groove ball bearing 7X19X6 |
| 13 | 1900905044 | Groove ball bearing 7X19X6 |
| 14 | 1900905041 | Groove ball bearing 8X22X7 |
| 14 | 1900905041 | Groove ball bearing 8X22X7 |
| 16 | 2604992605 | Brush Plate |
| 16 | 2605807122 | Brush Plate |
| 16 | 2609992604 | Brush Plate |
| 16 | 2609992604 | Brush Plate |
| 18 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 18 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 19 | 2603490022 | Screw 4X16 |
| 19 | 2603490022 | Screw 4X16 |
| 2 | 2604220476 | Field 220-240V |
| 2 | 2604220485 | Field 100V |
| 2 | 2604220486 | Field 115V |
| 2 | 2604220476 | Field 220-240V |
| 25 | 2600905068 | Groove ball bearing 15X32X9 |
| 25 | 2600905068 | Groove ball bearing 15X32X9 |
| 26 | 2600499037 | Eccentric Disc |
| 26 | 2600499037 | Eccentric Disc |
| 27 | 2603100050 | Round Rubber |
| 27 | 2603100050 | Round Rubber |
| 3 | 2604011055 | Armature 100V |
| 3 | 2604011056 | Armature 115-120V |
| 3 | 2604011057 | Armature 230-240V |
| 3 | 2604011057 | Armature 230-240V |
| 3/60 | 2606610062 | Fan |
| 3/60 | 2606610062 | Fan |
| 30 | 2601923007 | Tensioning Lever |
| 30 | 2601923007 | Tensioning Lever |
| 31 | 2601099030 | Pressure Bar |
| 31 | 2601099030 | Pressure Bar |
| 32 | 1900210000 | O-Ring 5,0X1,5 MM |
| 32 | 1900210000 | O-Ring 5,0X1,5 MM |
| 33 | 2603300013 | Hex Nut DIN 985-M6-8 |
| 33 | 2603300013 | Hex Nut DIN 985-M6-8 |
| 34 | 2603490018 | Torx Oval-Head Screw 3X18 |
| 34 | 2603490016 | Torx Oval-Head Screw 3X8 |
| 35 | 2603410048 | Thread-forming tap. Screw M4X8 |
| 35 | 2603410048 | Thread-forming tap. Screw M4X8 |
| 36 | 2600034004 | Sheet metal cover |
| 36 | 2600034004 | Sheet metal cover |
| 37 | 2605702018 | Fitting |
| 37 | 2605702018 | Fitting |
| 38 | 2603490020 | Torx Oval-Head Screw 4X8 |
| 38 | 2603490020 | Torx Oval-Head Screw 4X8 |
| 39 | 2606610026 | Fan |
| 39 | 2606610026 | Fan |
| 4 | 2607200260 | Switch |
| 4 | 2607200260 | Switch |
| 40 | 2916680033 | Spring Lock Washer DIN 127-A6-FST |
| 40 | 2916680033 | Spring Lock Washer DIN 127-A6-FST |
| 42 | 2604448045 | Cable Black L=98 MM |
| 42 | 2604448045 | Cable Black L=98 MM |
| 43 | 2604448118 | Connecting Cable Blue L=213 MM |
| 43 | 2604448118 | Connecting Cable Blue L=213 MM |
| 44 | 2601022000 | Damping Plate |
| 44 | 2601022000 | Damping Plate |
| 45 | 2604651008 | Coiled Spring |
| 45 | 2604651008 | Coiled Spring |
| 46 | 2600320018 | Spacer Sleeve |
| 46 | 2600320018 | Spacer Sleeve |
| 47 | 2601005014 | Felt Strip |
| 47 | 2601005014 | Felt Strip |
| 49 | 2604448109 | Connecting Cable White L=115 MM |
| 49 | 2604448109 | Connecting Cable White L=115 MM |
| 5 | 2604460124 | Power supply cord GB 240V 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460125 | Power supply cord CH 2,65M 2 X 1,0MM H05VV-F |
| 5 | 2604460126 | Power supply cord AUS 2,6M 2 X 0,75MM Pvc |
| 5 | 2604460127 | Power supply cord J 2,50M 2 X 0,75MM Pvc |
| 5 | 2604460129 | Power supply cord Usa/cdn 2,15M 2 X 082MM SJ 18/2 |
| 5 | 2604460280 | Power supply cord I / BR 2,65M 2 X 1,0MM H05VV-F |
| 5 | 1614460072 | Power supply cord |
| 50 | 1604652004 | Spiral Spring |
| 50 | 1604652004 | Spiral Spring |
| 52 | 2604681001 | Split Pin |
| 52 | 2604681001 | Split Pin |
| 53 | 2602010000 | Control Lever |
| 53 | 2602010000 | Control Lever |
| 54 | 2603200022 | Cylindrical Roller |
| 54 | 2603200022 | Cylindrical Roller |
| 55 | 2600210042 | O-Ring 65,7X1,78 MM |
| 55 | 2600210042 | O-Ring 65,7X1,78 MM |
| 56 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 56 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 57 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 57 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 58 | 2601329057 | Contact Spring |
| 58 | 2601329057 | Contact Spring |
| 59 | 2600290029 | Seal Ring |
| 59 | 2600290029 | Seal Ring |
| 6 | 2600703006 | Grommet Ø9,5 MM |
| 6 | 2600703007 | Grommet Ø7 MM |
| 6 | 2600703008 | Grommet Ø8,2 MM |
| 6 | 2600703007 | Grommet Ø7 MM |
| 60 | 2600005008 | Felt Washer |
| 60 | 2600005008 | Felt Washer |
| 61 | 2600005006 | Felt Washer |
| 61 | 2600005006 | Felt Washer |
| 62 | 2600100094 | Intermediate Ring |
| 62 | 2600100094 | Intermediate Ring |
| 63 | 2600290028 | Seal Ring |
| 63 | 2600290028 | Seal Ring |
| 64 | 2603201085 | Straight Pin |
| 64 | 2603201085 | Straight Pin |
| 655 | 2605702031 | Fitting |
| 655 | 2605702031 | Fitting |
| 657 | 1610210075 | O-Ring 20,0X1,5 MM |
| 657 | 1610210075 | O-Ring 20,0X1,5 MM |
| 7 | 1611035005 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 729 | 2608000106 | Sander Plate |
| 729 | 2608000106 | Sander Plate |
| 754 | 2605411025 | Dust Bag |
| 754 | 2605411027 | Dust Bag With Adapter |
| 754 | 2605411025 | Dust Bag |
| 754 | 2605411027 | Dust Bag With Adapter |
| 805 | 1607000388 | Power supply cord EU 2,65M 2 X 1,0MM H05 Rn-F |
| 808 | 2601119723 | Marking Plate |
| 808 | 2601119724 | Marking Plate |
| 808 | 2601119725 | Marking Plate |
| 808 | 2601119726 | Marking Plate |
| 808 | 2601119728 | Marking Plate |
| 808 | 2601119729 | Marking Plate |
| 808 | 2601119730 | Marking Plate |
| 808 | 2601119731 | Marking Plate |
| 808 | 2601117140 | Marking Plate |
| 816/04 | 2604321905 | Carbon-Brush Set |
| 816/04 | 2607014001 | Carbon-Brush Set |
| 816/04 | 2607014001 | Carbon-Brush Set |
| 816/05 | 2604610026 | Compression Spring |
| 816/05 | 2604610026 | Compression Spring |
| 816/06 | 2601322013 | Ratchet Cap |
| 816/06 | 2601322013 | Ratchet Cap |
| 828 | 2608000916 | Swing-Plate |
| 828 | 2608000916 | Swing-Plate |
| 9 | 2601118546 | Manufacturer's nameplate Sunny Side |
| 9 | 2601118546 | Manufacturer's nameplate Sunny Side |
