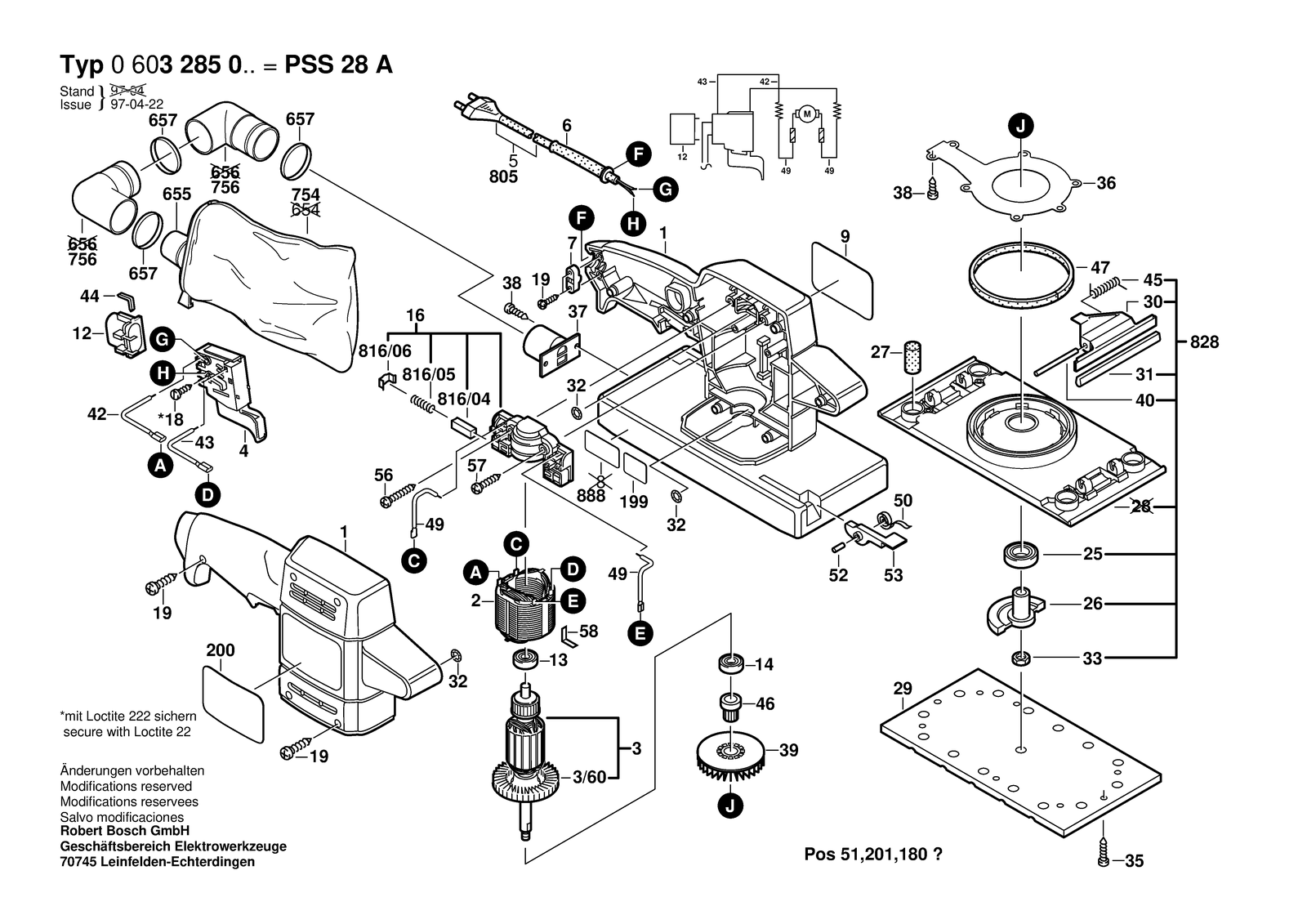

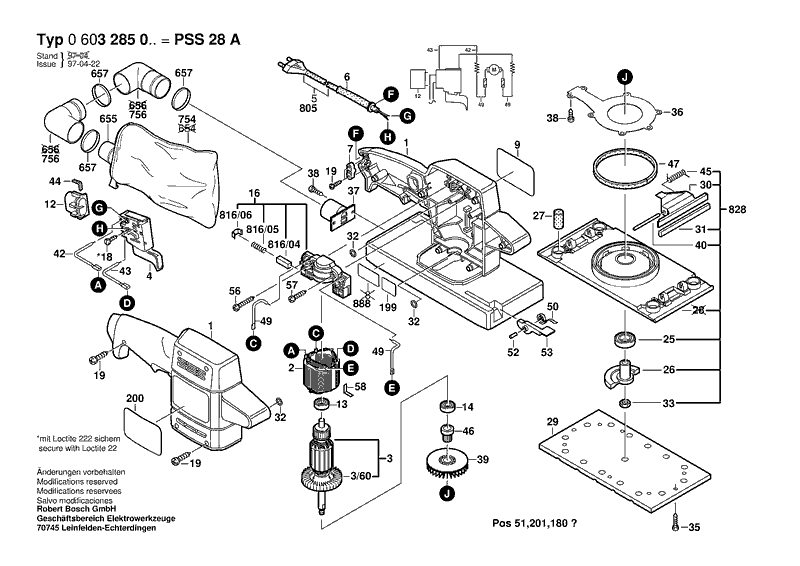

Bosch PSS 28 A orbital sander: exploded parts diagram, 1 sheet, 64 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PSS 28 A: 64 positions on 1 sheet
Bosch PSS 28 A parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605104542 | Housing Section Green |
| 12 | 2607329141 | Suppression Capacitor |
| 13 | 1900905044 | Groove ball bearing 7X19X6 |
| 14 | 1900905041 | Groove ball bearing 8X22X7 |
| 16 | 2604337118 | Brush Plate |
| 16 | 2604337122 | Brush Plate |
| 16 | 2609992604 | Brush Plate |
| 18 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 19 | 2603490022 | Screw 4X16 |
| 199 | 1601110265 | Reference Plate |
| 2 | 2604220476 | Field 220-240V |
| 2 | 2604220485 | Field 100V |
| 2 | 2604220486 | Field 115V |
| 25 | 2600905045 | Groove ball bearing 12X28X8 |
| 26 | 2600499024 | Eccentric Disc |
| 27 | 2603100050 | Round Rubber |
| 29 | 2608000103 | Closing Plate |
| 3 | 2604010786 | Armature 100V |
| 3 | 2604010787 | Armature 115V |
| 3 | 2604010876 | Armature 220-240V |
| 3/60 | 2606610062 | Fan |
| 30 | 2601923007 | Tensioning Lever |
| 31 | 2601099030 | Pressure Bar |
| 32 | 1900210000 | O-Ring 5,0X1,5 MM |
| 33 | 2915061004 | Hex Nut DIN 985-M6-8 |
| 35 | 2603410048 | Thread-forming tap. Screw M4X8 |
| 36 | 2600034004 | Sheet metal cover |
| 37 | 2605702018 | Fitting |
| 38 | 2603490020 | Torx Oval-Head Screw 4X8 |
| 39 | 2606610026 | Fan |
| 4 | 2607200260 | Switch |
| 40 | 1603201023 | Straight Pin |
| 42 | 2604448045 | Cable Black L=98 MM |
| 43 | 2604448057 | Cable Blue L=249 MM |
| 44 | 2601022000 | Damping Plate |
| 45 | 2604651008 | Coiled Spring |
| 46 | 2600320018 | Spacer Sleeve |
| 47 | 2601005014 | Felt Strip |
| 49 | 2604448109 | Connecting Cable White L=115 MM |
| 5 | 2604460124 | Power supply cord GB 240V 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460125 | Power supply cord CH 2,65M 2 X 1,0MM H05VV-F |
| 5 | 2604460126 | Power supply cord AUS 2,6M 2 X 0,75MM Pvc |
| 5 | 2604460127 | Power supply cord J 2,50M 2 X 0,75MM Pvc |
| 5 | 2604460129 | Power supply cord Usa/cdn 2,15M 2 X 082MM SJ 18/2 |
| 5 | 2604460280 | Power supply cord I / BR 2,65M 2 X 1,0MM H05VV-F |
| 50 | 1604652004 | Spiral Spring |
| 52 | 2604681001 | Split Pin |
| 53 | 2602010000 | Control Lever |
| 56 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 57 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 58 | 2601329057 | Contact Spring |
| 6 | 2600703006 | Grommet Ø9,5 MM |
| 6 | 2600703007 | Grommet Ø7 MM |
| 6 | 2600703008 | Grommet Ø8,2 MM |
| 655 | 2605702009 | Fitting |
| 657 | 1610210075 | O-Ring 20,0X1,5 MM |
| 7 | 1611035005 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 754 | 2605411009 | Dust Bag |
| 756 | 2605702019 | Elbow |
| 805 | 1607000388 | Power supply cord EU 2,65M 2 X 1,0MM H05 Rn-F |
| 828 | 2608000916 | Swing-Plate |
| 888 | 160111A3H3 | Nameplate |
| 9 | 2601118246 | Manufacturer's nameplate Sunny Side |
