Bosch PSS 240 A

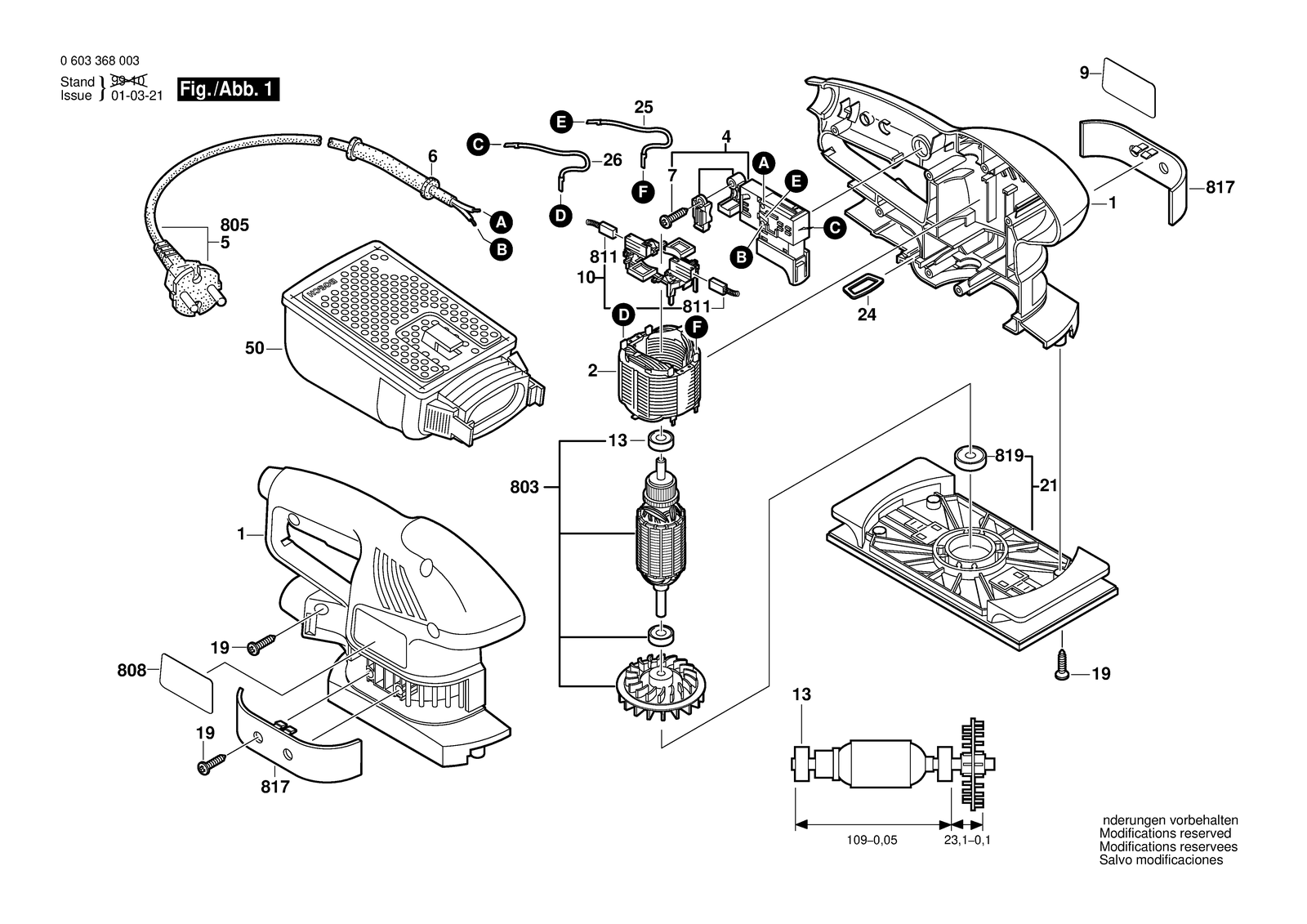

Bosch PSS 240 A orbital sander: exploded parts diagram, 1 sheet, 69 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PSS 240 A: 69 positions on 1 sheet
Bosch PSS 240 A parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605104641 | Housing Section Green |
| 1 | 2605104757 | Housing Section |
| 1 | 2605104641 | Housing Section Green |
| 10 | 2604337091 | Brush Plate |
| 10 | 2604337088 | Brush Plate |
| 13 | 2600905078 | Groove ball bearing |
| 13 | 2600905078 | Groove ball bearing |
| 19 | 2603490022 | Screw 4X16 |
| 19 | 2603490022 | Screw 4X16 |
| 2 | 2604220635 | Field 115V |
| 2 | 2604220636 | Field 220-240V |
| 2 | 2604220636 | Field 220-240V |
| 21 | 2608000230 | Sander Plate |
| 21 | 2608000230 | Sander Plate |
| 24 | 2600290039 | Seal Ring |
| 24 | 2600290039 | Seal Ring |
| 25 | 2604448247 | Connecting Cable Blue L=160 MM |
| 25 | 2604448247 | Connecting Cable Blue L=160 MM |
| 26 | 3604440527 | Connecting Cable White L=63 MM |
| 26 | 3604440527 | Connecting Cable White L=63 MM |
| 4 | 2607200526 | Switch |
| 4 | 2607200526 | Switch |
| 5 | 1604460236 | Power supply cord AR 2,7M 2 X 1,0MM H05 Vv-F |
| 5 | 1604460433 | Power supply cord CH 2,65M 2 X 0,75MM H05 Vv-F |
| 5 | 2604460153 | Power supply cord J 2,5M 2 X 0,75MM Pvc |
| 5 | 2604460243 | Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460249 | Power supply cord SAM 2,7M 2 X 0,82MM SJ 18/2 |
| 5 | 2604460283 | Power supply cord I/br 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460297 | Power supply cord AUS 240V 2,6M 2 X 0,75MM H05 Vv-F |
| 5 | 1604460433 | Power supply cord CH 2,65M 2 X 0,75MM H05 Vv-F |
| 5 | 2604460243 | Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460283 | Power supply cord I/br 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460297 | Power supply cord AUS 240V 2,6M 2 X 0,75MM H05 Vv-F |
| 50 | 2605411121 | Dust container 1 Piece |
| 50 | 2605411121 | Dust container 1 Piece |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 6 | 2600703019 | Grommet Ø8,7-Ø9,6X76 MM |
| 6 | 2609002019 | Grommet |
| 7 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 7 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 803 | 2604010973 | Armature 115V |
| 803 | 2604010974 | Armature 220-240V |
| 803 | 2604010974 | Armature 220-240V |
| 805 | 1607000387 | Power supply cord CN 2,65M 2 X 0,75MM H05 W-f |
| 805 | 1607000387 | Power supply cord CN 2,65M 2 X 0,75MM H05 W-f |
| 808 | 2601117150 | Nameplate |
| 808 | 2601117151 | Nameplate |
| 808 | 2601117152 | Nameplate |
| 808 | 2601117153 | Nameplate |
| 808 | 2601117156 | Nameplate |
| 808 | 2601117511 | Nameplate |
| 808 | 2601117512 | Nameplate |
| 808 | 2601117718 | Marking Plate |
| 808 | 2601117787 | Nameplate |
| 808 | 2601117913 | Nameplate |
| 808 | 2601116609 | Nameplate |
| 808 | 2601116610 | Nameplate |
| 808 | 2601116611 | Nameplate |
| 808 | 2601116612 | Nameplate |
| 808 | 2601116613 | Nameplate |
| 811 | 2604321925 | Carbon-Brush Set |
| 811 | 2604321925 | Carbon-Brush Set |
| 817 | 2605500910 | Cover Panel |
| 817 | 2605500910 | Cover Panel |
| 819 | 2600905045 | Groove ball bearing 12X28X8 |
| 819 | 2600905045 | Groove ball bearing 12X28X8 |
| 9 | 2601117717 | Manufacturer's nameplate |
| 9 | 2601119893 | Manufacturer's nameplate |
| 9 | 2601119893 | Manufacturer's nameplate |
