Bosch PSS 23
Bosch PSS 23 orbital sander: exploded parts diagram, 1 sheet, 126 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

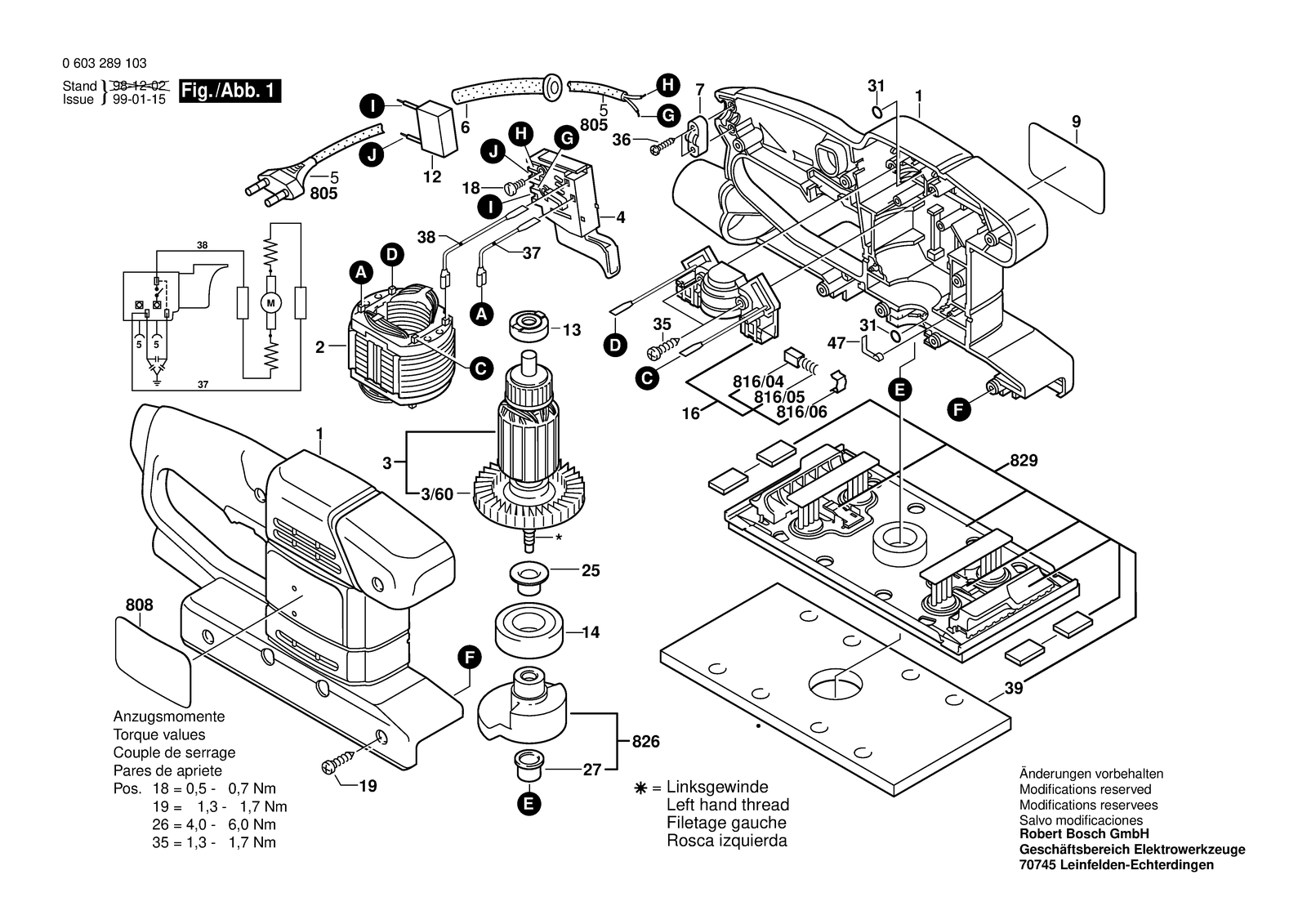

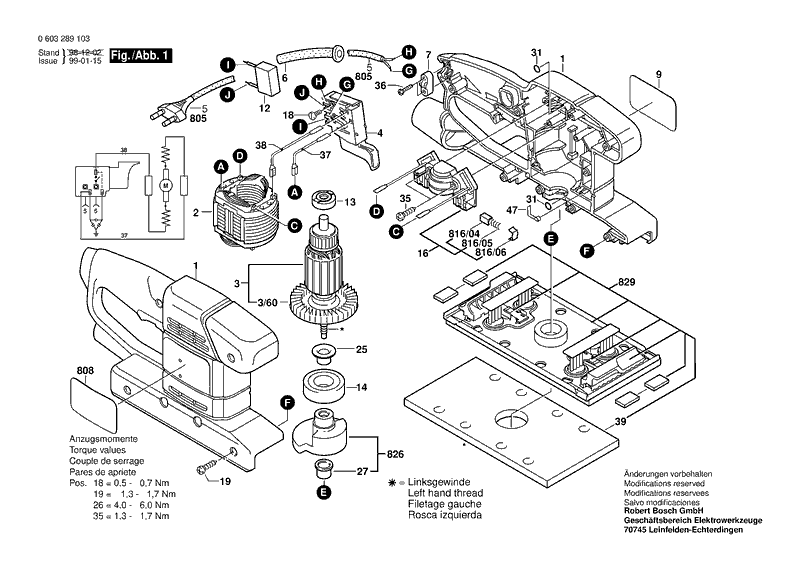

All parts of Bosch PSS 23: 126 positions on 1 sheet
Bosch PSS 23 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605104338 | Housing Section Green |
| 1 | 2605104338 | Housing Section Green |
| 1 | 2605104338 | Housing Section Green |
| 12 | 1607328028 | Suppression Filter |
| 12 | 1607328028 | Suppression Filter |
| 12 | 1607328028 | Suppression Filter |
| 13 | 2605805005 | Cartridge bearing |
| 13 | 2605805005 | Cartridge bearing |
| 13 | 2605805005 | Cartridge bearing |
| 14 | 2600905034 | Groove ball bearing |
| 14 | 2600905034 | Groove ball bearing |
| 14 | 2600905034 | Groove ball bearing |
| 16 | 2604337118 | Brush Plate |
| 16 | 2605807122 | Brush Plate |
| 16 | 2609992619 | Brush Plate |
| 16 | 2604337118 | Brush Plate |
| 16 | 2604337118 | Brush Plate |
| 18 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 18 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 18 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 19 | 2603490022 | Screw 4X16 |
| 19 | 2603490022 | Screw 4X16 |
| 19 | 2603490022 | Screw 4X16 |
| 2 | 2604220535 | Field 220-240V |
| 2 | 2604220546 | Field 115-120V |
| 2 | 2604220559 | Field 100V |
| 2 | 2604220535 | Field 220-240V |
| 2 | 2604220535 | Field 220-240V |
| 25 | 2600422004 | Stop Sleeve |
| 25 | 2600422004 | Stop Sleeve |
| 25 | 2600422004 | Stop Sleeve |
| 27 | 2600590007 | Bearing Sleeve |
| 27 | 2600590007 | Bearing Sleeve |
| 27 | 2600590007 | Bearing Sleeve |
| 3 | 2604011014 | Armature 220-240V |
| 3 | 2604011041 | Armature 115-120V |
| 3 | 2604011068 | Armature 100V |
| 3 | 2604011014 | Armature 220-240V |
| 3 | 2604011014 | Armature 220-240V |
| 3/60 | 2606610055 | Fan |
| 3/60 | 2606610055 | Fan |
| 3/60 | 2606610055 | Fan |
| 31 | 1900210000 | O-Ring 5,0X1,5 MM |
| 31 | 1900210000 | O-Ring 5,0X1,5 MM |
| 31 | 1900210000 | O-Ring 5,0X1,5 MM |
| 33 | 2601006002 | Rubber Strip |
| 33 | 2601006002 | Rubber Strip |
| 33 | 2601006002 | Rubber Strip |
| 35 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 35 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 35 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 36 | 2603490021 | Torx Oval-Head Screw 4X12 |
| 36 | 2603490021 | Torx Oval-Head Screw 4X12 |
| 36 | 2603490021 | Torx Oval-Head Screw 4X12 |
| 37 | 2604448140 | Cable White L=103MM |
| 37 | 2604448140 | Cable White L=103MM |
| 37 | 2604448140 | Cable White L=103MM |
| 38 | 1614431010 | Cable White L=233 MM |
| 38 | 1614431010 | Cable White L=233 MM |
| 38 | 1614431010 | Cable White L=233 MM |
| 39 | 2602388010 | Rubber Plate |
| 39 | 2602388010 | Rubber Plate |
| 39 | 2602388010 | Rubber Plate |
| 4 | 2607200260 | Switch |
| 4 | 2607200362 | On-Off Switch |
| 4 | 2607200260 | Switch |
| 4 | 2607200260 | Switch |
| 47 | 2601329057 | Contact Spring |
| 47 | 2601329057 | Contact Spring |
| 47 | 2601329057 | Contact Spring |
| 5 | 1604460235 | Power supply cord ARG 2,7M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460124 | Power supply cord GB 240V 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460125 | Power supply cord CH 2,65M 2 X 1,0MM H05VV-F |
| 5 | 2604460126 | Power supply cord AUS 2,6M 2 X 0,75MM Pvc |
| 5 | 2604460127 | Power supply cord J 2,50M 2 X 0,75MM Pvc |
| 5 | 2604460129 | Power supply cord Usa/cdn 2,15M 2 X 082MM SJ 18/2 |
| 5 | 2604460280 | Power supply cord I / BR 2,65M 2 X 1,0MM H05VV-F |
| 5 | 1614460072 | Power supply cord |
| 5 | 1604460235 | Power supply cord ARG 2,7M 2 X 1,0MM H05 Vv-F |
| 6 | 2600703006 | Grommet Ø9,5 MM |
| 6 | 2600703007 | Grommet Ø7 MM |
| 6 | 2600703008 | Grommet Ø8,2 MM |
| 6 | 2600703007 | Grommet Ø7 MM |
| 6 | 2600703007 | Grommet Ø7 MM |
| 7 | 1611035005 | Cable Clip |
| 7 | 2601035004 | Cable Clip |
| 7 | 2601035004 | Cable Clip |
| 7 | 2601035004 | Cable Clip |
| 805 | 1607000388 | Power supply cord EU 2,65M 2 X 1,0MM H05 Rn-F |
| 808 | 2601117486 | Nameplate |
| 808 | 2601119233 | Nameplate |
| 808 | 2601119236 | Nameplate |
| 808 | 2601119237 | Marking Plate |
| 808 | 2601119238 | Nameplate |
| 808 | 2601119239 | Nameplate |
| 808 | 2601119240 | Nameplate |
| 808 | 2601119241 | Marking Plate |
| 808 | 2601119242 | Nameplate |
| 808 | 2601119336 | Nameplate |
| 808 | 2601119455 | Marking Plate |
| 808 | 2601117169 | Nameplate |
| 808 | 2601117486 | Nameplate |
| 816/04 | 2604321905 | Carbon-Brush Set |
| 816/04 | 2604321914 | Carbon-Brush Set |
| 816/04 | 2604321917 | Carbon-Brush Set |
| 816/04 | 2604321917 | Carbon-Brush Set |
| 816/04 | 2604321917 | Carbon-Brush Set |
| 816/05 | 2604610026 | Compression Spring |
| 816/05 | 2604610026 | Compression Spring |
| 816/05 | 2604610026 | Compression Spring |
| 816/06 | 2601322013 | Ratchet Cap |
| 816/06 | 2601329051 | Ratchet Cap |
| 816/06 | 2601322013 | Ratchet Cap |
| 816/06 | 2601329051 | Ratchet Cap |
| 816/06 | 2601322013 | Ratchet Cap |
| 826 | 2602210907 | Eccentric Disc |
| 826 | 2602210907 | Eccentric Disc |
| 826 | 2602210907 | Eccentric Disc |
| 829 | 2608000910 | Swing-Plate |
| 829 | 2608000910 | Swing-Plate |
| 829 | 2608000910 | Swing-Plate |
| 9 | 2601118644 | Manufacturer's nameplate PSS 23 |
| 9 | 2601118646 | Manufacturer's nameplate PSS 22 |
| 9 | 2601118648 | Manufacturer's nameplate PSS 23 |
| 9 | 2601118644 | Manufacturer's nameplate PSS 23 |
| 9 | 2601118646 | Manufacturer's nameplate PSS 22 |
