Bosch PSS 200 A orbital sander: exploded parts diagram, 1 sheet, 25 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PSS 200 A: 25 positions on 1 sheet

Bosch PSS 200 A parts list (1 sheet)

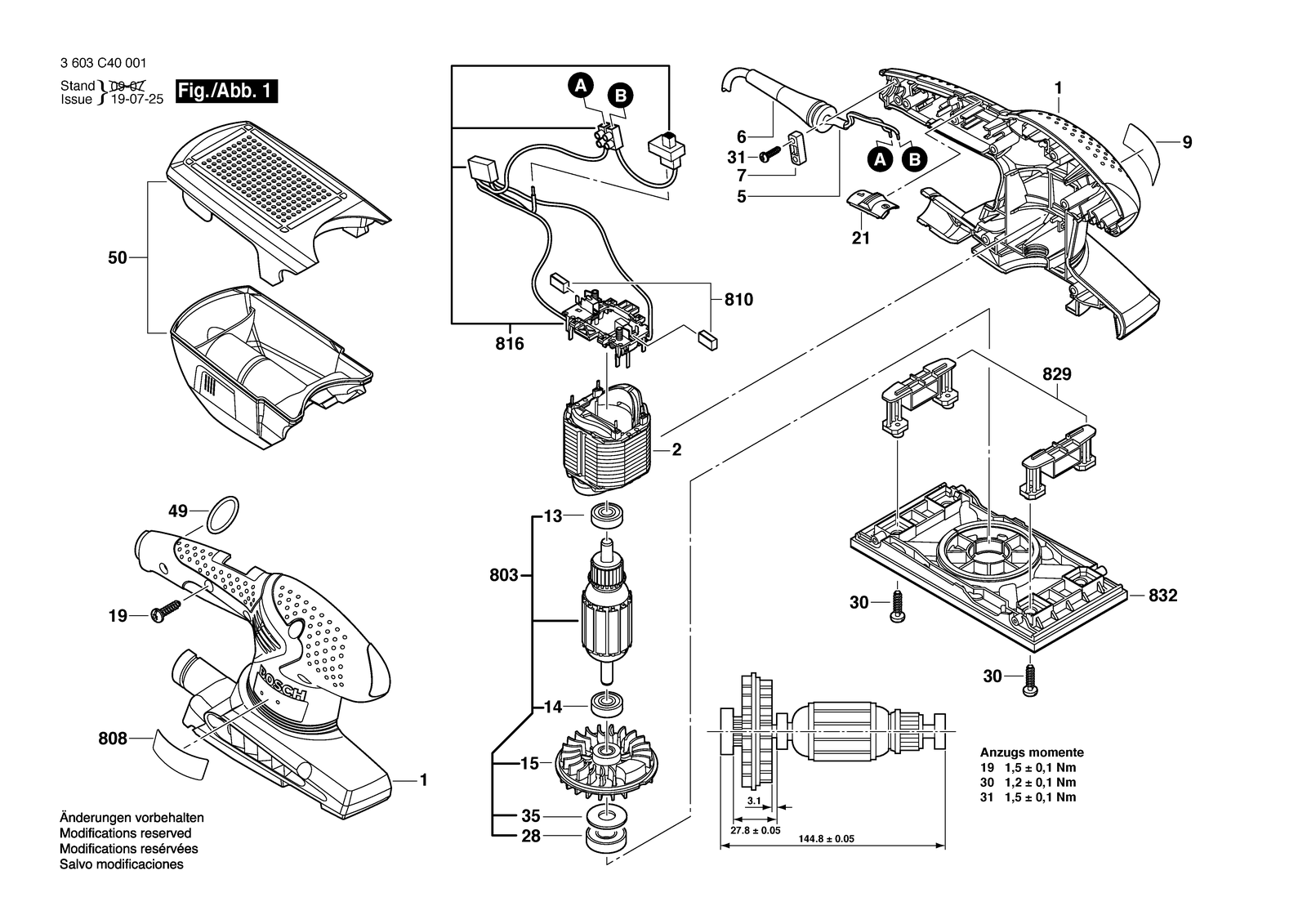

Bosch PSS 200 A parts diagram, sheet 1
No.Part numberPart name
12609002104Housing Section Green
132600905078Groove ball bearing
142600905052Groove ball bearing 8X22X7
152609000355Fan
192603490022Screw 4X16
22609002276Field 230V
212609000362Switch Slide
282600905045Groove ball bearing 12X28X8
302603490021Torx Oval-Head Screw 4X12
312603490022Screw 4X16
352609003061Felt Washer
492609001762O-Ring
51604460260Power supply cord GB 230V 2,65M 2 X 0,75MM H05 Vv-F
52604460260Power supply cord EU 2,7M 2 X 0,75MM H05 Vv-F
502609000356Dust container
62609002019Grommet
72601035004Cable Clip
8032609004133Armature 230V
808160111A2VMNameplate
808160111A2VSNameplate
8102610391290Carbon-Brush Set
8162609000871Brush Holder
8292609000874Vibration Foot
8322609000875Sander Plate
92609000520Manufacturer's nameplate PSS 200 A
