Bosch PSS 150 A

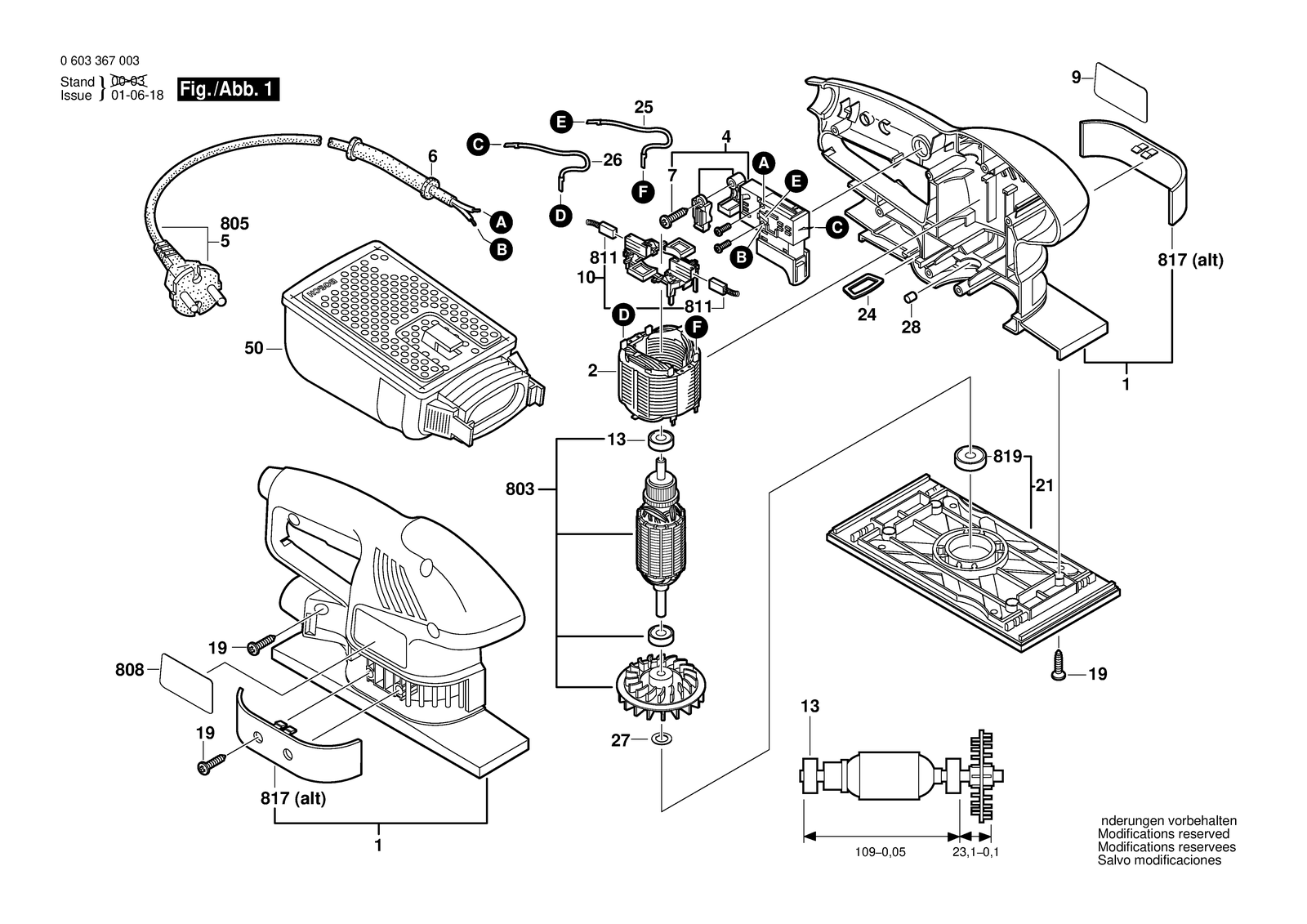

Bosch PSS 150 A orbital sander: exploded parts diagram, 1 sheet, 114 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PSS 150 A: 114 positions on 1 sheet
Bosch PSS 150 A parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605104643 | Housing Section Green |
| 1 | 2605104643 | Housing Section Green |
| 1 | 2605104643 | Housing Section Green |
| 1 | 2605104643 | Housing Section Green |
| 10 | 2604337091 | Brush Plate |
| 10 | 2604337088 | Brush Plate |
| 10 | 2604337091 | Brush Plate |
| 10 | 2604337088 | Brush Plate |
| 13 | 2600905052 | Groove ball bearing 8X22X7 |
| 13 | 2600905078 | Groove ball bearing |
| 13 | 2600905078 | Groove ball bearing |
| 13 | 2600905078 | Groove ball bearing |
| 19 | 2603490022 | Screw 4X16 |
| 19 | 2603490022 | Screw 4X16 |
| 19 | 2603490022 | Screw 4X16 |
| 19 | 2603490022 | Screw 4X16 |
| 2 | 2604220671 | Field 100V |
| 2 | 2604220672 | Field 115V |
| 2 | 2604220673 | Field 230-240V |
| 2 | 2604220673 | Field 230-240V |
| 2 | 2604220673 | Field 230-240V |
| 2 | 2604220673 | Field 230-240V |
| 21 | 2608000240 | Sander Plate |
| 21 | 2608000240 | Sander Plate |
| 21 | 2608000240 | Sander Plate |
| 21 | 2608000240 | Sander Plate |
| 24 | 2600290039 | Seal Ring |
| 24 | 2600290039 | Seal Ring |
| 24 | 2600290039 | Seal Ring |
| 24 | 2600290039 | Seal Ring |
| 25 | 2604448247 | Connecting Cable Blue L=160 MM |
| 25 | 2604448247 | Connecting Cable Blue L=160 MM |
| 25 | 2604448247 | Connecting Cable Blue L=160 MM |
| 25 | 2604448247 | Connecting Cable Blue L=160 MM |
| 26 | 3604440527 | Connecting Cable White L=63 MM |
| 26 | 3604440527 | Connecting Cable White L=63 MM |
| 26 | 3604440527 | Connecting Cable White L=63 MM |
| 26 | 3604440527 | Connecting Cable White L=63 MM |
| 27 | 2600105001 | Shim |
| 27 | 2600105001 | Shim |
| 27 | 2600105001 | Shim |
| 27 | 2600105001 | Shim |
| 28 | 2603100056 | Damping rubber |
| 28 | 2609000549 | Rubber Buffer |
| 28 | 2603100056 | Damping rubber |
| 28 | 2609000549 | Rubber Buffer |
| 4 | 2607200526 | Switch |
| 4 | 2607200526 | Switch |
| 4 | 2607200526 | Switch |
| 4 | 2607200526 | Switch |
| 5 | 1604460236 | Power supply cord AR 2,7M 2 X 1,0MM H05 Vv-F |
| 5 | 1604460433 | Power supply cord CH 2,65M 2 X 0,75MM H05 Vv-F |
| 5 | 2604460153 | Power supply cord J 2,5M 2 X 0,75MM Pvc |
| 5 | 2604460243 | Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460249 | Power supply cord SAM 2,7M 2 X 0,82MM SJ 18/2 |
| 5 | 2604460283 | Power supply cord I/br 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460297 | Power supply cord AUS 240V 2,6M 2 X 0,75MM H05 Vv-F |
| 5 | 1604460433 | Power supply cord CH 2,65M 2 X 0,75MM H05 Vv-F |
| 5 | 2604460283 | Power supply cord I/br 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460243 | Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F |
| 50 | 2605411121 | Dust container 1 Piece |
| 50 | 2605411121 | Dust container 1 Piece |
| 50 | 2605411121 | Dust container 1 Piece |
| 50 | 2605411121 | Dust container 1 Piece |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 6 | 2600703018 | Grommet Ø7,3-Ø8,6X76 MM |
| 6 | 2609002019 | Grommet |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 6 | 2609002019 | Grommet |
| 7 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 7 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 7 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 7 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 803 | 2604010978 | Armature 100V |
| 803 | 2604010980 | Armature 230-240V |
| 803 | 2604010987 | Armature 115V |
| 803 | 2604010980 | Armature 230-240V |
| 803 | 2604010980 | Armature 230-240V |
| 803 | 2604010980 | Armature 230-240V |
| 805 | 1607000386 | Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 805 | 1607000387 | Power supply cord CN 2,65M 2 X 0,75MM H05 W-f |
| 805 | 1607000386 | Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 805 | 1607000387 | Power supply cord CN 2,65M 2 X 0,75MM H05 W-f |
| 808 | 2601117458 | Nameplate |
| 808 | 2601117459 | Nameplate |
| 808 | 2601117460 | Nameplate |
| 808 | 2601117461 | Nameplate |
| 808 | 2601117462 | Nameplate |
| 808 | 2601117463 | Nameplate |
| 808 | 2601117464 | Nameplate |
| 808 | 2601117465 | Nameplate |
| 808 | 2601117466 | Nameplate |
| 808 | 2601116605 | Nameplate |
| 808 | 2601116606 | Nameplate |
| 808 | 2601116728 | Nameplate |
| 808 | 2601117531 | Nameplate |
| 808 | 2601116607 | Nameplate |
| 808 | 2601116608 | Nameplate |
| 811 | 2604321925 | Carbon-Brush Set |
| 811 | 2604321925 | Carbon-Brush Set |
| 811 | 2604321925 | Carbon-Brush Set |
| 811 | 2604321925 | Carbon-Brush Set |
| 817 | 2605500910 | Cover Panel |
| 817 | 2605500910 | Cover Panel |
| 817 | 2605500910 | Cover Panel |
| 817 | 2605500910 | Cover Panel |
| 819 | 2600905045 | Groove ball bearing 12X28X8 |
| 819 | 2600905045 | Groove ball bearing 12X28X8 |
| 819 | 2600905045 | Groove ball bearing 12X28X8 |
| 819 | 2600905045 | Groove ball bearing 12X28X8 |
| 9 | 2601117037 | Manufacturer's nameplate |
| 9 | 2601117037 | Manufacturer's nameplate |
| 9 | 2601117037 | Manufacturer's nameplate |
| 9 | 2601117530 | Manufacturer's nameplate |
