Bosch PSR 7,2 VES cordless screw driver 7,2v: exploded parts diagram, 1 sheet, 22 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PSR 7,2 VES: 22 positions on 1 sheet

Bosch PSR 7,2 VES parts list (1 sheet)

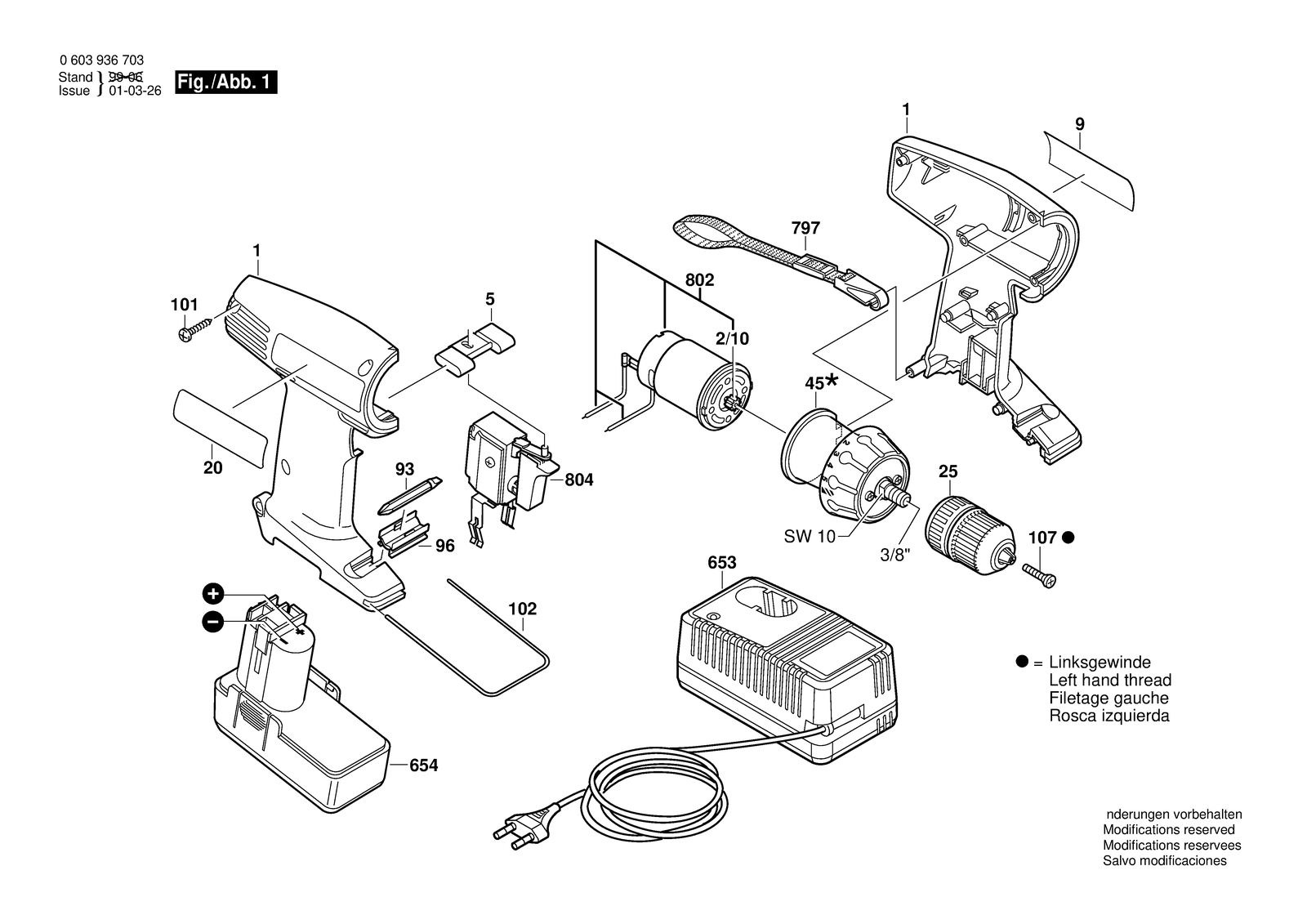

Bosch PSR 7,2 VES parts diagram, sheet 1
No.Part numberPart name
12605104509Housing Section Green
1012603490018Torx Oval-Head Screw 3X18
1022601329041Retaining Bracket
1072609110721Countersunk-Head Screw M5X20
2/102606316158Pinion Z=9
202601118754Reference Plate Shadow Side
252608572200Keyless Chuck
452606200054Planetary Gear Train
52601099055Adjusting Slide Red
6532607224393Fast Charger GB 230/7,2-14,4V, 1H
6532607224425Fast Charger EU 230/7,2-24V, 1H
6532607224431Fast Charger USA 120/7,2-24V, 1H
6532607224435Fast Charger J 100/7,2-24V, 1H
6532607224437Fast Charger ROK 220/7,2-24V, 1H
6532607224443Fast Charger AUS 240/7,2-14,4V, 1H
6542607335115Slide-In Accu Package 7,2V,1,4AH,NICD
7972601398009Carrying Loop
8022607022943DC motor 7,2V
8042607200351On-Off Switch
92601118753Manufacturer's nameplate Sunny Side
931609200147Screwdriver Blade 6 MM
962608040079Support
