Bosch PSR 300 LI

Bosch PSR 300 LI screwdriver: exploded parts diagram, 1 sheet, 19 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PSR 300 LI: 19 positions on 1 sheet

Bosch PSR 300 LI parts list (1 sheet)

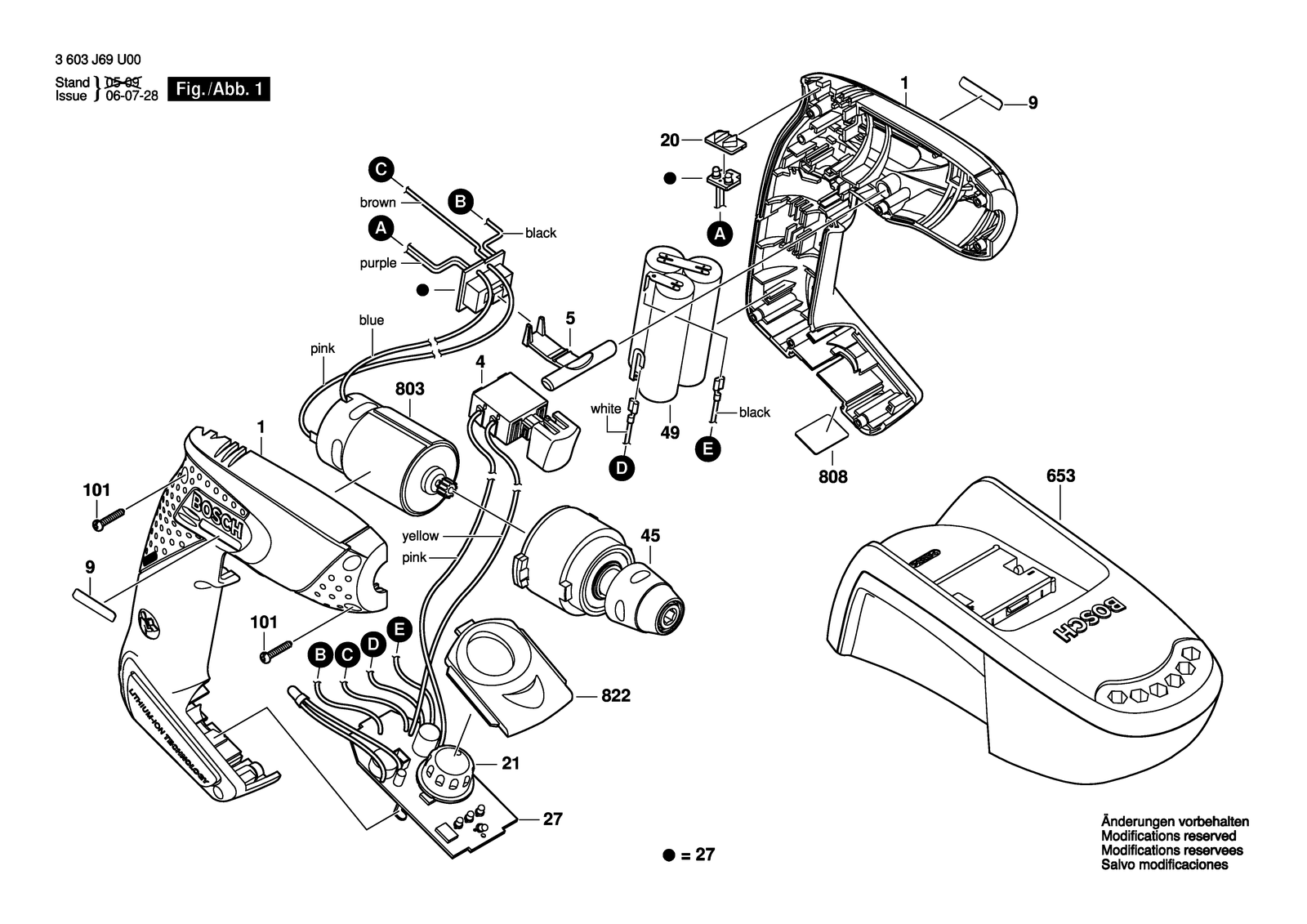

Bosch PSR 300 LI parts diagram, sheet 1
No.Part numberPart name
12609100429Housing
1012609110236Torx Oval-Head Screw
202609100430Lens
212609100434Adjustment Knob
272609199092Electronic Module
42607202012On-Off Switch
452609199078Gear Housing
452609199099Gear Housing
492609199077Accumulator package 10,8V, 1,0AH, LI
52609100431Adjusting Slide
6532607225161Charger EU 230V,10,8V
6532607225163Charger GB 230/10,8V
6532607225165Charger AUS 240/10,8V
6532607225167Charger J 100/10,8V
8032609199105Motor
8082609131180Nameplate
8082609131181Nameplate
8222609199132Cover
92609131025Manufacturer's nameplate PSR 300 LI
