Bosch PSR 3,6 V

Bosch PSR 3,6 V cordless screw driver: exploded parts diagram, 1 sheet, 10 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PSR 3,6 V: 10 positions on 1 sheet

Bosch PSR 3,6 V parts list (1 sheet)

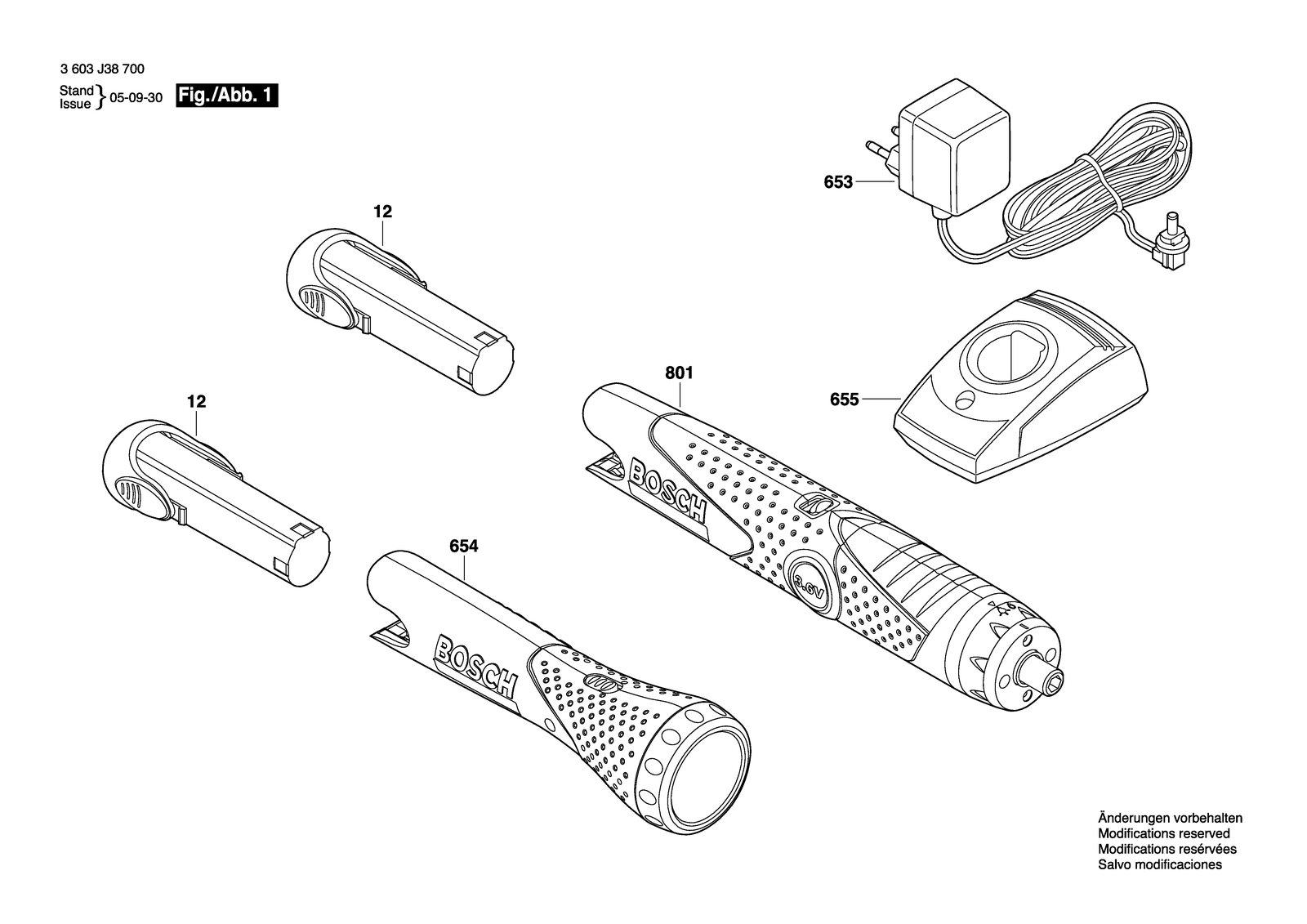

Bosch PSR 3,6 V parts diagram, sheet 1
No.Part numberPart name
121609203P68Accumulator package
121609203S27Accumulator package
6532607224789Fast Charger Weu/oeu 230/3,6V
6532607224791Fast Charger GB 230/3,6V
6532607225211Fast Charger J 100/3,6V
6541609203P23Lamp
6541609203S00Lamp
6551609203L94Charging Station
8011609203R14Cordless Screw Driver PSR 3,6V
8011609203S04Cordless Screw Driver PSR 3,6V
