Bosch PSR 18 VE-2 cordless screw driver: exploded parts diagram, 1 sheet, 36 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PSR 18 VE-2: 36 positions on 1 sheet

Bosch PSR 18 VE-2 parts list (1 sheet)

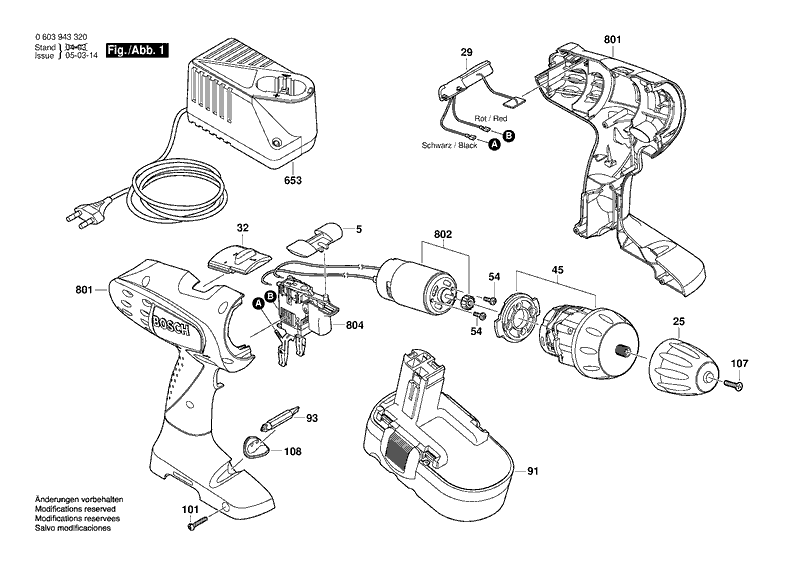

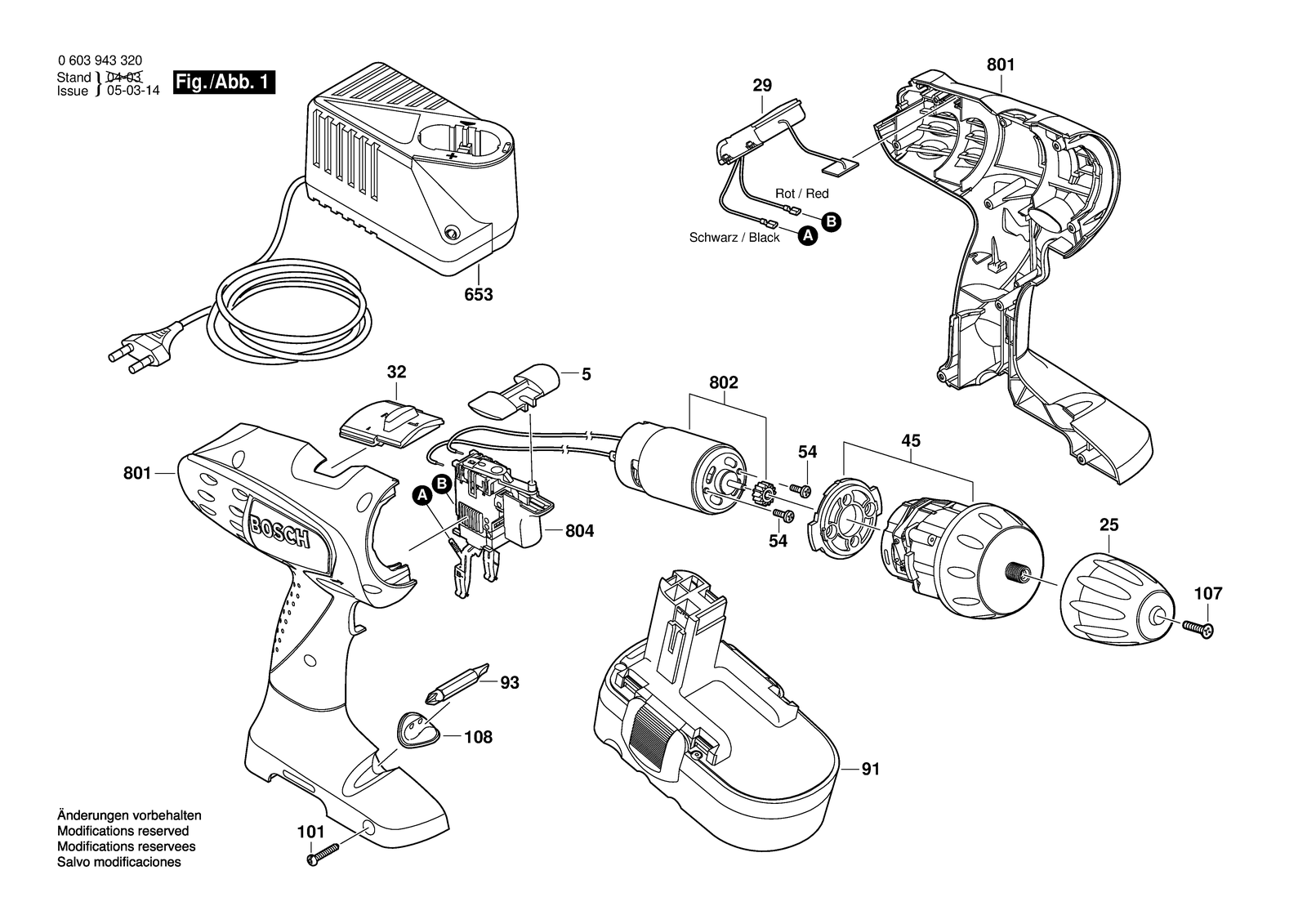

Bosch PSR 18 VE-2 parts diagram, sheet 1
No.Part numberPart name
1012603490018Torx Oval-Head Screw 3X18
1012603490018Torx Oval-Head Screw 3X18
1072609110721Countersunk-Head Screw M5X20
1072603421229Countersunk-Head Screw Lefthand Threads M6X23
1082607001443Toolholder
1082607001443Toolholder
252608572205Keyless Chuck
252608572205Keyless Chuck
292607230092Indicator Unit
292607230092Indicator Unit
322608040212Servo Unit
322608040212Servo Unit
452606200173Planetary Gear Train
452606200185Planetary Gear Train
52601099096Adjusting Slide Red
52601099096Adjusting Slide Red
542603414049Torx SH cap screw M4X8-4,8-Z
542603414049Torx SH cap screw M4X8-4,8-Z
6532607224425Fast Charger EU 230/7,2-24V, 1H
6532607224427Fast Charger GB 230/7,2-24V, 1H
6532607224429Fast Charger AUS 240/7,2-24V, 1H
6532607224425Fast Charger EU 230/7,2-24V, 1H
6532607224427Fast Charger GB 230/7,2-24V, 1H
6532607224429Fast Charger AUS 240/7,2-24V, 1H
6532607225031Fast Charger AUS 240/7,2-24V, 30 Min.
8012605105942Housing Section Green
8012605105943Housing Section Green
8012605105957Housing Section Green
8022607022850DC motor Green 18V
8022607022850DC motor Green 18V
8042607200475On-Off Switch
8042607200475On-Off Switch
912607335535Slide-In Accu Package 18V, 1,5AH, Nicd
912607335535Slide-In Accu Package 18V, 1,5AH, Nicd
931609200147Screwdriver Blade 6 MM
931609200147Screwdriver Blade 6 MM
