Bosch PSR 18

Bosch PSR 18 screwdriver: exploded parts diagram, 1 sheet, 17 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PSR 18: 17 positions on 1 sheet

Bosch PSR 18 parts list (1 sheet)

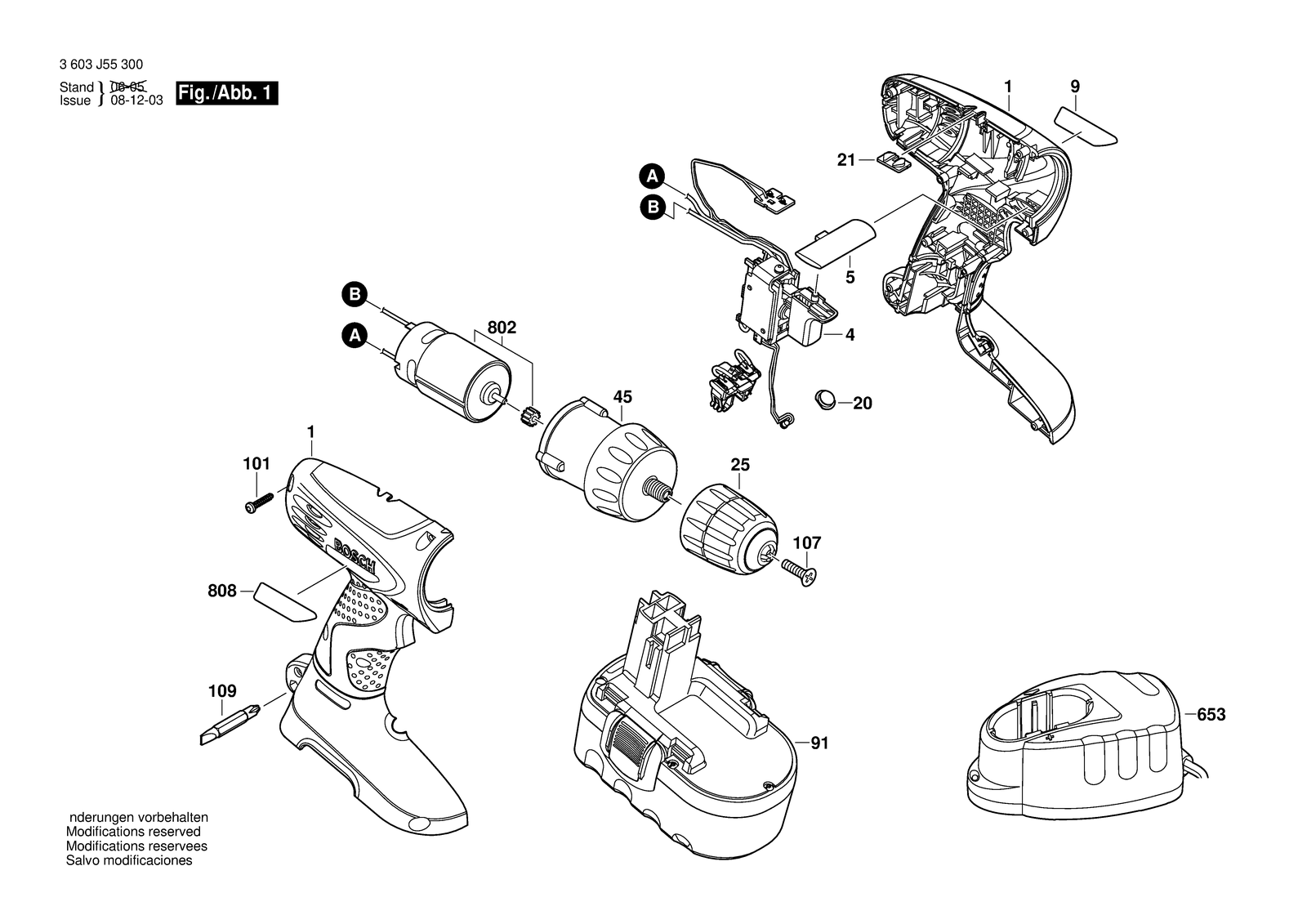

Bosch PSR 18 parts diagram, sheet 1
No.Part numberPart name
12609100466Housing
1012609110236Torx Oval-Head Screw
1072609110721Countersunk-Head Screw M5X20
1092609160063Screwdriver Bit
202609100471Lens
212609100257Lens Plexiglass 8N
252609110565Keyless Chuck
42609120254On-Off Switch
452609110564Planetary Gear Train
52609100482Change-Over Switch
6532607224443Fast Charger AUS 240/7,2-14,4V, 1H
6532607225183Fast Charger EU 230/7,2-24V
6532607225185Fast Charger GB 230/7,2-24V, 3H
8022609199122DC motor 18V
8082609135933Nameplate
92609131044Manufacturer's nameplate PSR 18
912607335277Slide-In Accu Package 18V, 1,25AH, Nicd
