Bosch PSR 14,4 V cordless screw driver: exploded parts diagram, 1 sheet, 16 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PSR 14,4 V: 16 positions on 1 sheet

Bosch PSR 14,4 V parts list (1 sheet)

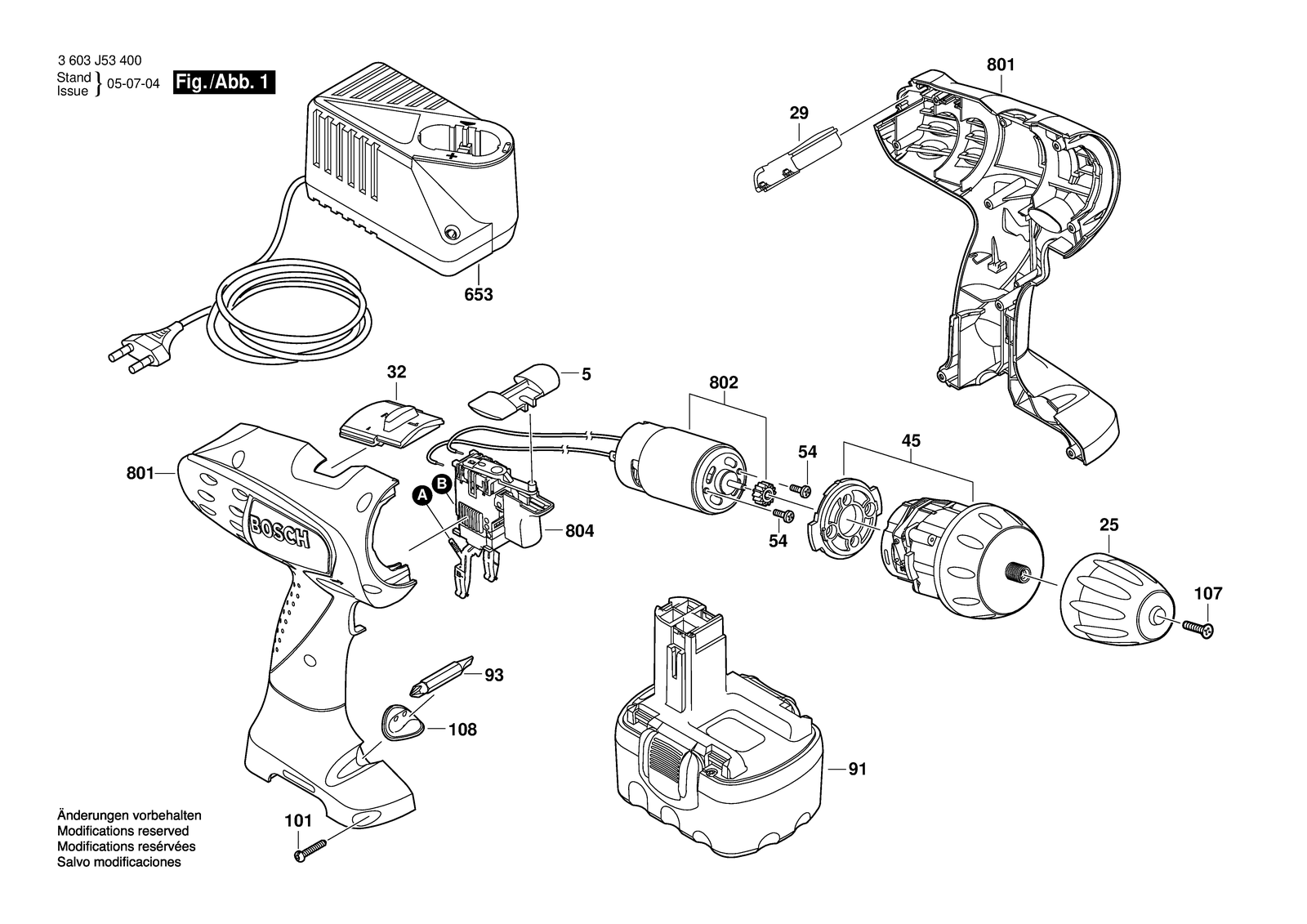

Bosch PSR 14,4 V parts diagram, sheet 1
No.Part numberPart name
1012603490018Torx Oval-Head Screw 3X18
1072609110721Countersunk-Head Screw M5X20
1082607001443Toolholder
252608572205Keyless Chuck
292608005095Covering hood
322608040212Servo Unit
452606200167Planetary Gear Train
52601099096Adjusting Slide Red
542603414048Torx SH cap screw M3X5-8.8-Z
6532607224425Fast Charger EU 230/7,2-24V, 1H
6532607224427Fast Charger GB 230/7,2-24V, 1H
8012605105960Housing Section
8022607022851DC motor 14,4V
8042607200474On-Off Switch
911617S0004WAccumulator package 14,4V, 1,5AH, Nicd
931609200147Screwdriver Blade 6 MM
