Bosch PSR 14,4-2 cordless screw driver: exploded parts diagram, 1 sheet, 22 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PSR 14,4-2: 22 positions on 1 sheet

Bosch PSR 14,4-2 parts list (1 sheet)

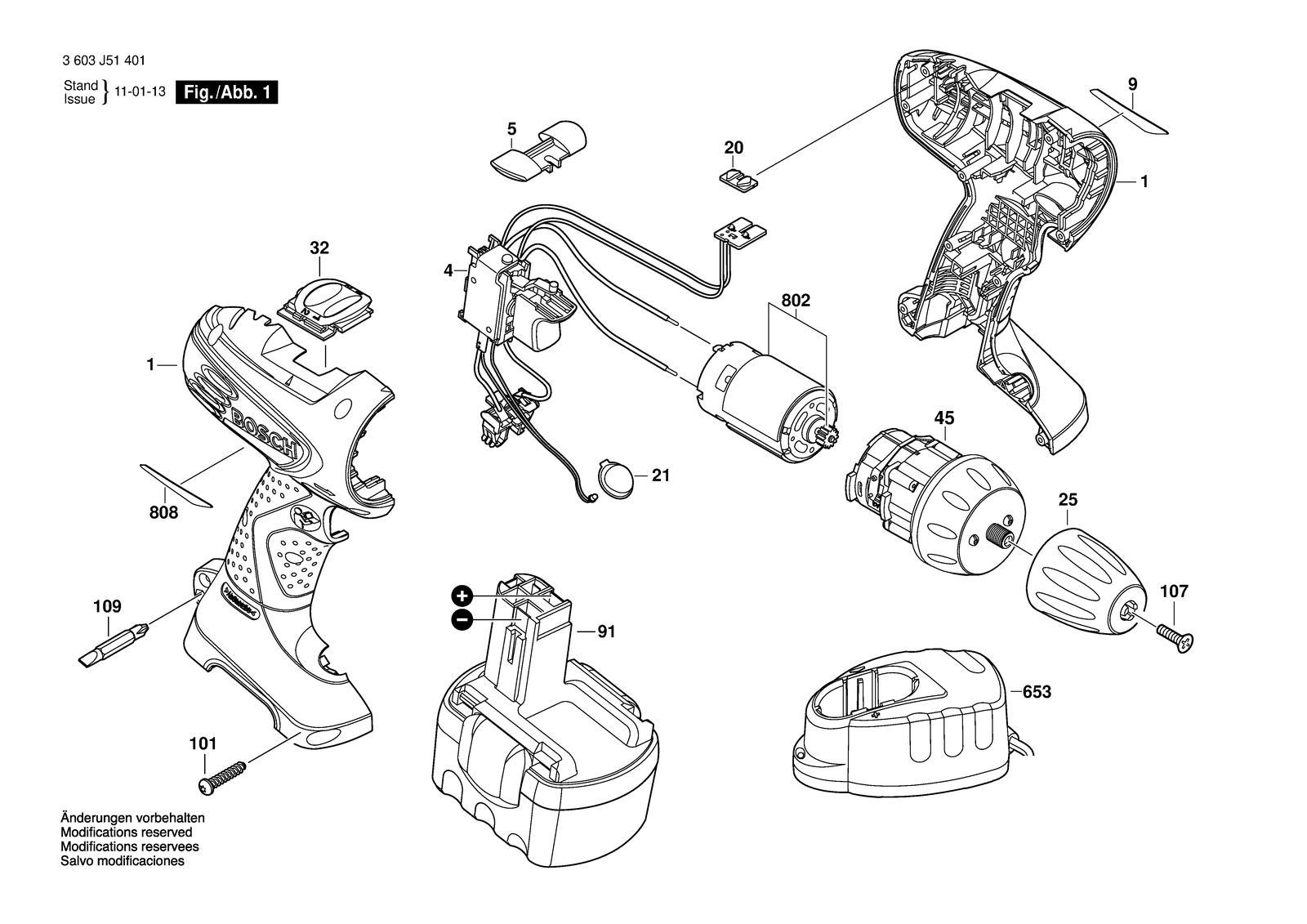

Bosch PSR 14,4-2 parts diagram, sheet 1
No.Part numberPart name
12609100509Housing
1012609110201Torx Flat-Head Screw 3X16
1072609110721Countersunk-Head Screw M5X20
1092609160063Screwdriver Bit
202609100257Lens Plexiglass 8N
212609100513Lens
252609110668Keyless Chuck
322609199124Change-Over Switch
42609120271On-Off Switch
452606200166Gear Box
52601099096Adjusting Slide Red
6532607224391Fast Charger EU 230/7,2-14,4V, 1H
6532607224393Fast Charger GB 230/7,2-14,4V, 1H
6532607224705Fast Charger AUS 240/7,2-14,4V, 30 Min.
6532607224711Fast Charger J 100/7,2-14,4V, 30 Min.
8022609199138Motor
8082609004568Nameplate
8082609004572Nameplate
92609131357Manufacturer's nameplate PSR 14,4-2
92609131467Manufacturer's nameplate PSR 14,4 Ve
911617S0004WAccumulator package 14,4V, 1,5AH, Nicd
912607335699Slide-In Accu Package 14,4V, 2,0AH, Nimh
