Bosch PSR 14,4-2

Bosch PSR 14,4-2 cordless drill driver: exploded parts diagram, 1 sheet, 38 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PSR 14,4-2: 38 positions on 1 sheet

Bosch PSR 14,4-2 parts list (1 sheet)

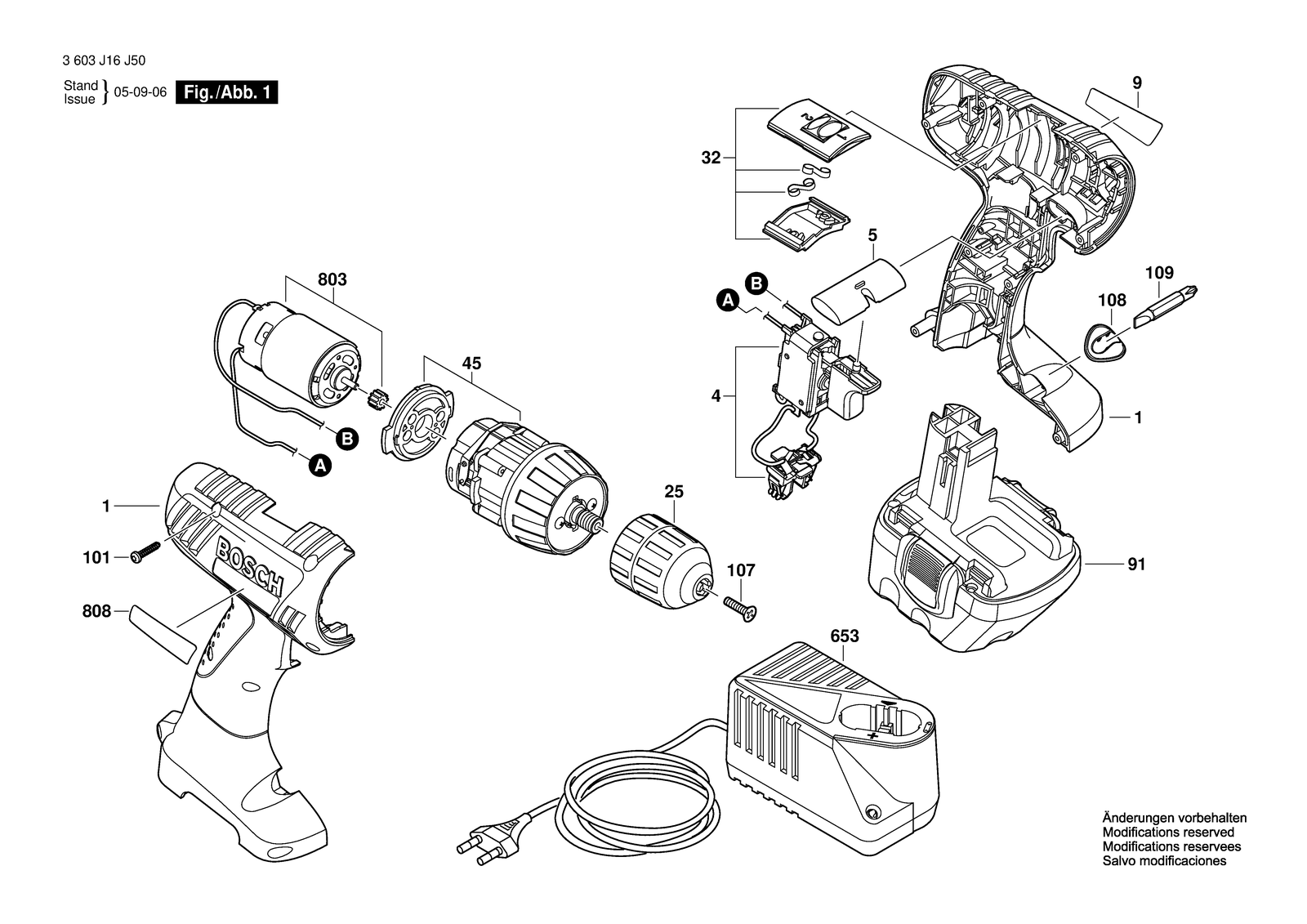

Bosch PSR 14,4-2 parts diagram, sheet 1
No.Part numberPart name
12609100468Housing
12609100467Housing
1012609110201Torx Flat-Head Screw 3X16
1012609110201Torx Flat-Head Screw 3X16
1072609110721Countersunk-Head Screw M5X20
1072609110721Countersunk-Head Screw M5X20
1082607001443Toolholder
1082607001443Toolholder
1092609160063Screwdriver Bit
1092609160063Screwdriver Bit
252609110495Keyless Chuck Ø1,0-10 Mm, 3/8
252609110495Keyless Chuck Ø1,0-10 Mm, 3/8
322609120202Regulator
322609120202Regulator
42609199070On-Off Switch
42609199070On-Off Switch
452609110493Gear Box
452609110385Planetary Gear Train
52609100744Button
52609100744Button
6532607224395Fast Charger AUS 240/7,2-14,4V, 1H
6532607224711Fast Charger J 100/7,2-14,4V, 30 Min.
6532607224395Fast Charger AUS 240/7,2-14,4V, 1H
6532607224711Fast Charger J 100/7,2-14,4V, 30 Min.
8032609120204Motor 14,4V
8032609120259DC motor 12V
8082609131129Nameplate
8082609131130Nameplate
8082609131131Nameplate
8082609131132Nameplate
92609130969Manufacturer's nameplate PSR 14,4-2
92609130965Manufacturer's nameplate PSR 12-2
92609130966Manufacturer's nameplate PSR 120-2
92609130967Manufacturer's nameplate PSR 1200-2
911617S0004WAccumulator package 14,4V, 1,5AH, Nicd
912607335275Slide-In Accu Package 14,4V, 1,25AH, Nicd
911617S00N7FSlide-In Accu Package 12V, 1,5AH, Nicd
912607335273Slide-In Accu Package 12V, 1,2AH, Nicd
