Bosch PSR 1200

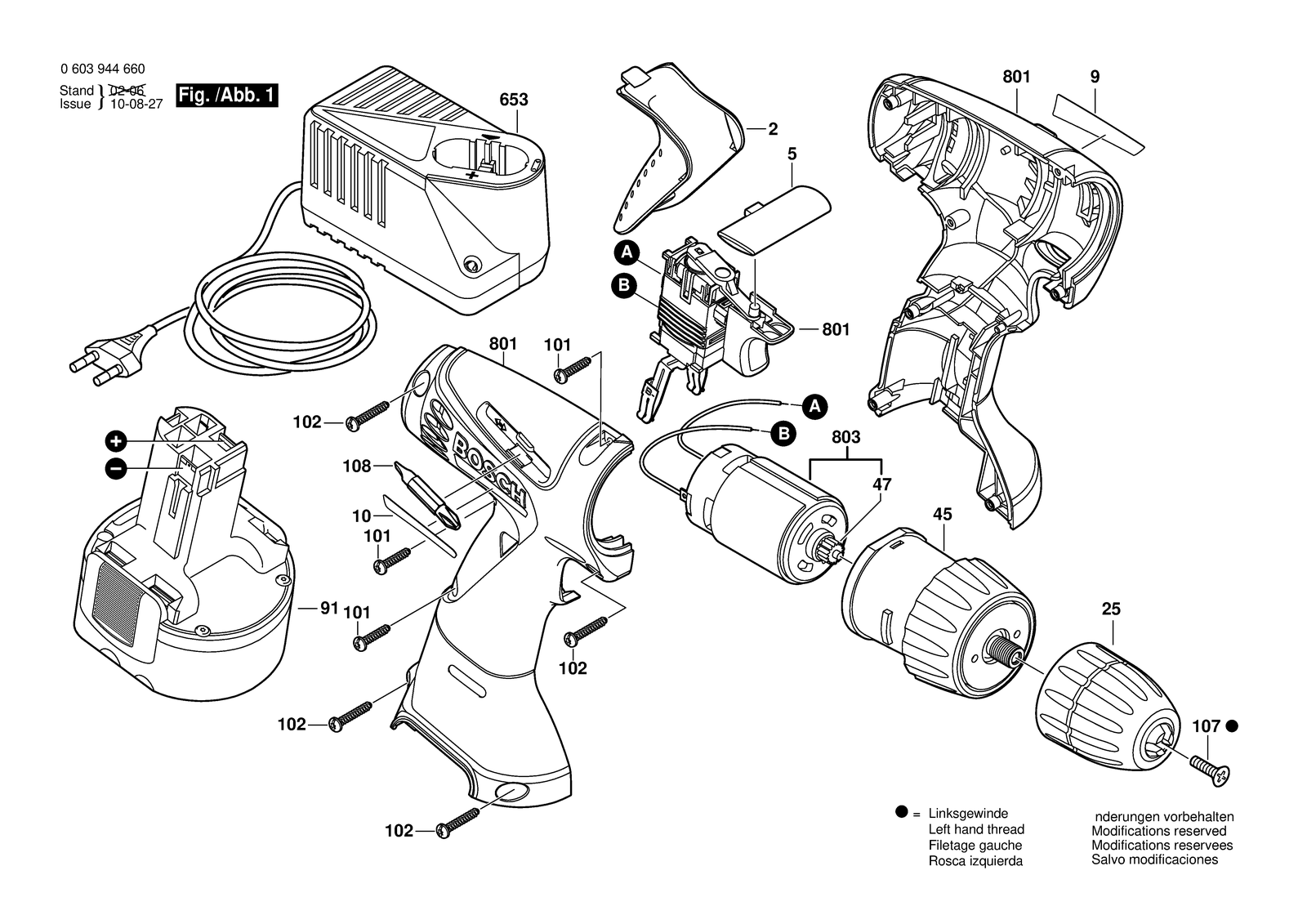

Bosch PSR 1200 cordless drill: exploded parts diagram, 1 sheet, 37 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PSR 1200: 37 positions on 1 sheet
Bosch PSR 1200 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 10 | 2609130455 | Nameplate |
| 10 | 2609130454 | Nameplate |
| 101 | 2609110190 | Torx Oval-Head Screw |
| 101 | 2609110190 | Torx Oval-Head Screw |
| 102 | 2609110080 | Torx Oval-Head Screw |
| 102 | 2609110080 | Torx Oval-Head Screw |
| 107 | 2609110721 | Countersunk-Head Screw M5X20 |
| 107 | 2609110721 | Countersunk-Head Screw M5X20 |
| 108 | 1609200147 | Screwdriver Blade 6 MM |
| 108 | 1609200147 | Screwdriver Blade 6 MM |
| 2 | 2609100162 | Cap-Handle |
| 2 | 2609100162 | Cap-Handle |
| 25 | 2609110278 | Keyless Chuck |
| 25 | 2609110278 | Keyless Chuck |
| 45 | 2609199215 | Gear Box |
| 45 | 2609199215 | Gear Box |
| 47 | 2609110097 | Pinion |
| 47 | 2609110097 | Pinion |
| 5 | 2609100634 | Reverse-Transfer Lever |
| 5 | 2609100634 | Reverse-Transfer Lever |
| 653 | 2607224395 | Fast Charger AUS 240/7,2-14,4V, 1H |
| 653 | 2607224397 | Fast Charger USA 120/7,2-14,4V, 1H |
| 653 | 2607225011 | Fast Charger EU 230/14,4V, 3-5H |
| 653 | 2607225013 | Fast Charger GB 230/14,4V, 3-5H |
| 653 | 2607224397 | Fast Charger USA 120/7,2-14,4V, 1H |
| 653 | 2607224399 | Fast Charger J 100/7,2-14,4V, 1H |
| 653 | 2607225011 | Fast Charger EU 230/14,4V, 3-5H |
| 653 | 2607225013 | Fast Charger GB 230/14,4V, 3-5H |
| 653 | 2607225015 | Charger AUS 240/14,4V, 3-5H |
| 801 | 2609199243 | Housing |
| 801 | 2609199242 | Housing |
| 803 | 2609120083 | DC motor 12V |
| 803 | 2609120152 | DC motor 9,6V |
| 9 | 2609130452 | Reference Plate |
| 9 | 2609130451 | Reference Plate |
| 91 | 2607335273 | Slide-In Accu Package 12V, 1,2AH, Nicd |
| 91 | 2607335461 | Accumulator package 9,6V,1,2AH,NICD |
